1.7 Installing the Rack Mounting Kit
1.7.1 Components
The rack mounting kit consists of the components shown below.

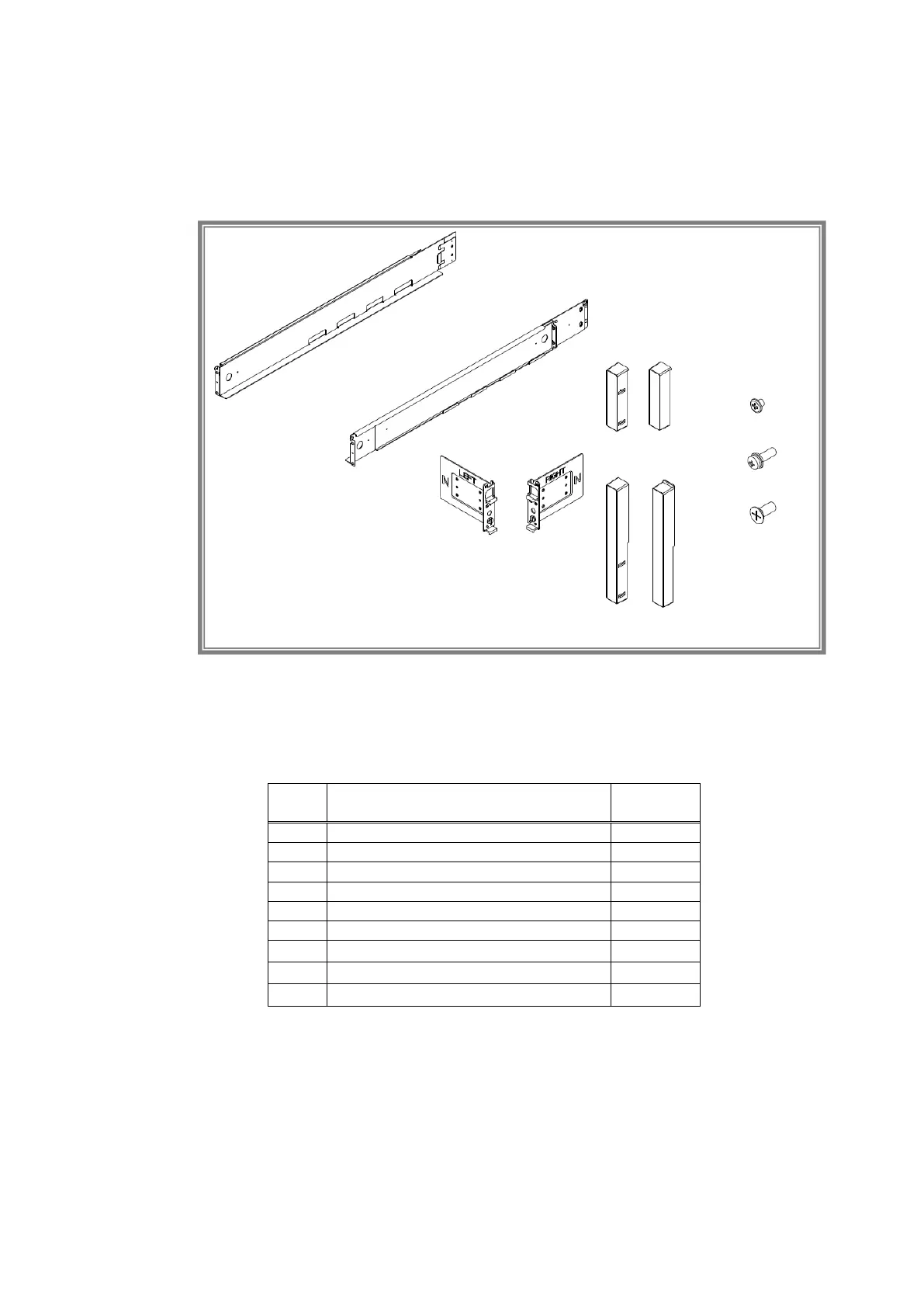

Figure 1-7 Components of Rack mount kit parts
Table 1-6 component list of rack mount kit parts
Item
No
Name
Qty
<1>
Rack mount rail L
1
<2>
Rack mount rail R
1
<3>
Rack mount bracket L
1
<4>
Rack mount bracket R
1
<5>
Rack earL
1
<6>
Rack earR
1
<7>
Screws（M3）
8
<8>
Screws（M5）
2
<9>
Flat head screws（M6）
8
③
②
④
⑤(T30A）
⑦
①
⑧
⑨
⑥(T30A)
⑤(T60A)
⑥(T60A)
