NEC T30A - Attachment of Rack Mount Rail L;R; Figure 1-11 Attachment of Rack Mount Rails

-20-
1.7.4 Attachment of Rack mount rail L/R
Perform the following steps to attach the left and right rack mount rails.
<1> Use four flat head screws (M6) to attach the rack mount rail L to the front and rear of the rack.
<2> Use four flat head screws (M6) to attach the rack mount rail R to the front and rear of the rack.

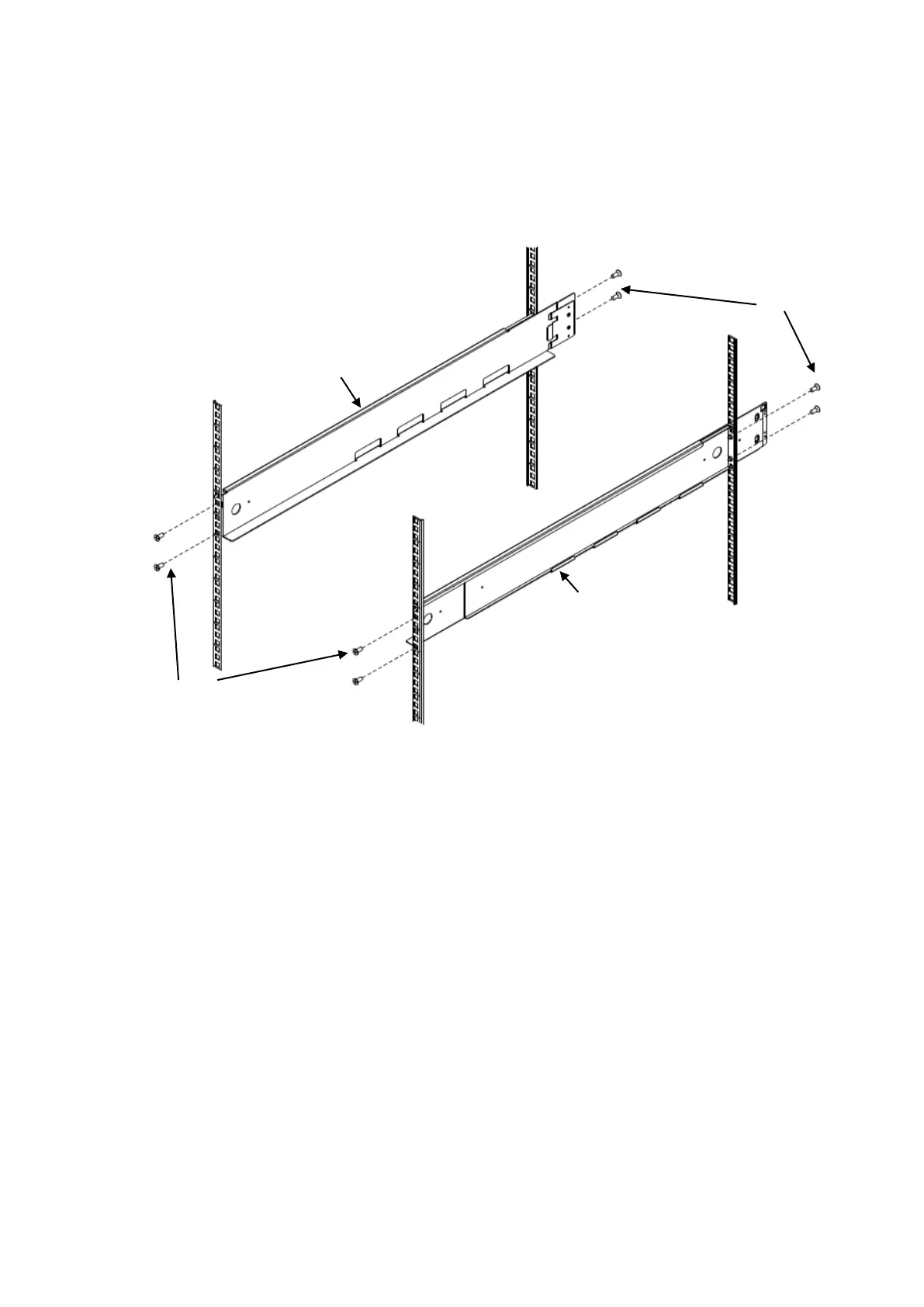

Figure 1-11 attachment of rack mount rails
Rack mount rail L
Rack mount rail R
＜front of rack＞
Flat head
screws
Flat head screws
