SECTION 5
DISASSEMBLY AND ASSEMBLY
98

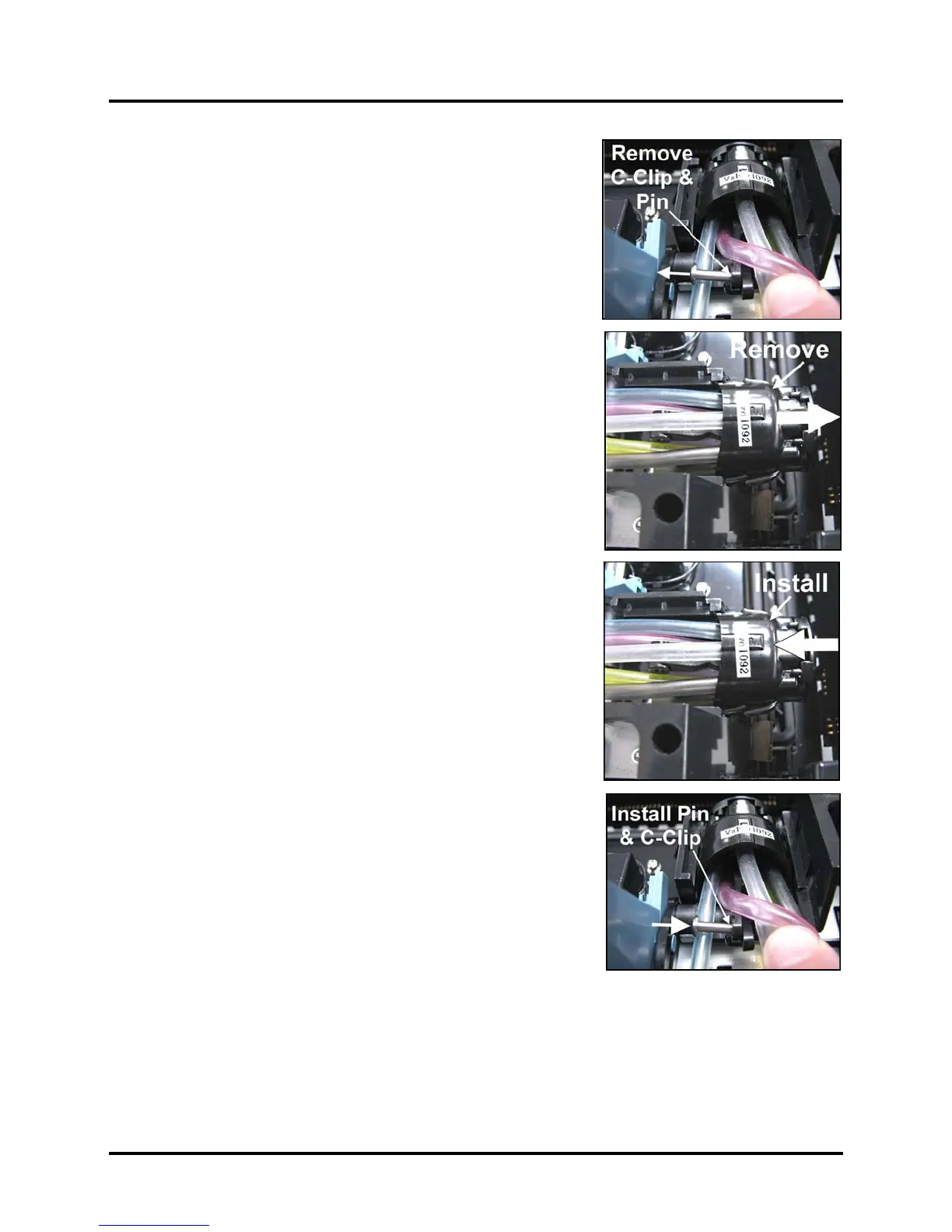

5. Once all hoses are connected
to new Ink Revolver, remove C-Clip
from hinge pin holding the old Ink Revolver. Remove pin.
6. Slide old Ink Revolver forward in its track and remove.
7. Slide new Ink Revolver back into its track and align yoke on rear
with hinge bracket. Make sure new Revolver is turned correctly.
8. Reinstall Pin and C-clip.
9. Reinstall Ink Revolver Cover.
To Next Page
