SECTION 5
DISASSEMBLY AND ASSEMBLY
114

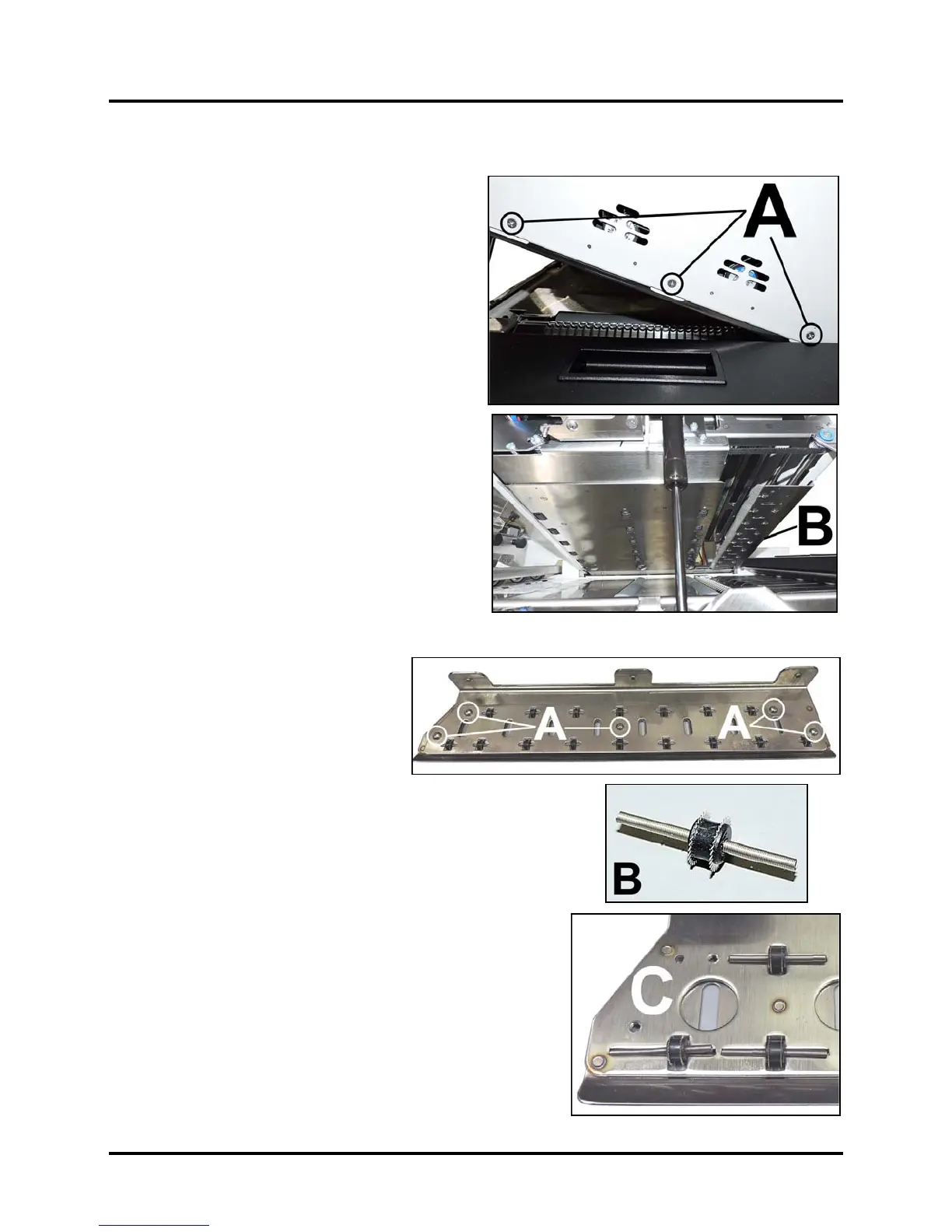

Remove Top Assembly Star Wheel Assembly
1. Open the Ink Tank Door.
Raise the Top Assembly.
2. Remove (3) screws [A] securing the Star Wheel
Assembly to the Top Assembly Side Cover.
3. Remove the Star Wheel Assembly [B].
4. Install in reverse order.
Replace Star Wheel Assembly
1. Remove the Star Wheel Assembly
from the Top Assembly.
2. Remove 5 screws [A] securing the
Star Wheel Guide Top to the Exit
Star Wheels Assembly Base.
3. Remove Star Wheel Guide Top.
Remove the Star Wheel Assemblies to be replaced from the
Star Wheels Assembly Base.
4. Assemble new Star Wheel Assemblies by sliding a
Star Wheel onto a Spring-Axle [B].
5. Align the new Star Wheel Assemblies in the
Star Wheel Guides [C].
6. Reinstall the Star Wheel Guide Top onto the Star Wheel
Guide Base and secure with 5 screws.
7. Reinstall the Star Wheel Assembly onto the Top Assembly.
