SECTION 5
DISASSEMBLY AND ASSEMBLY
64

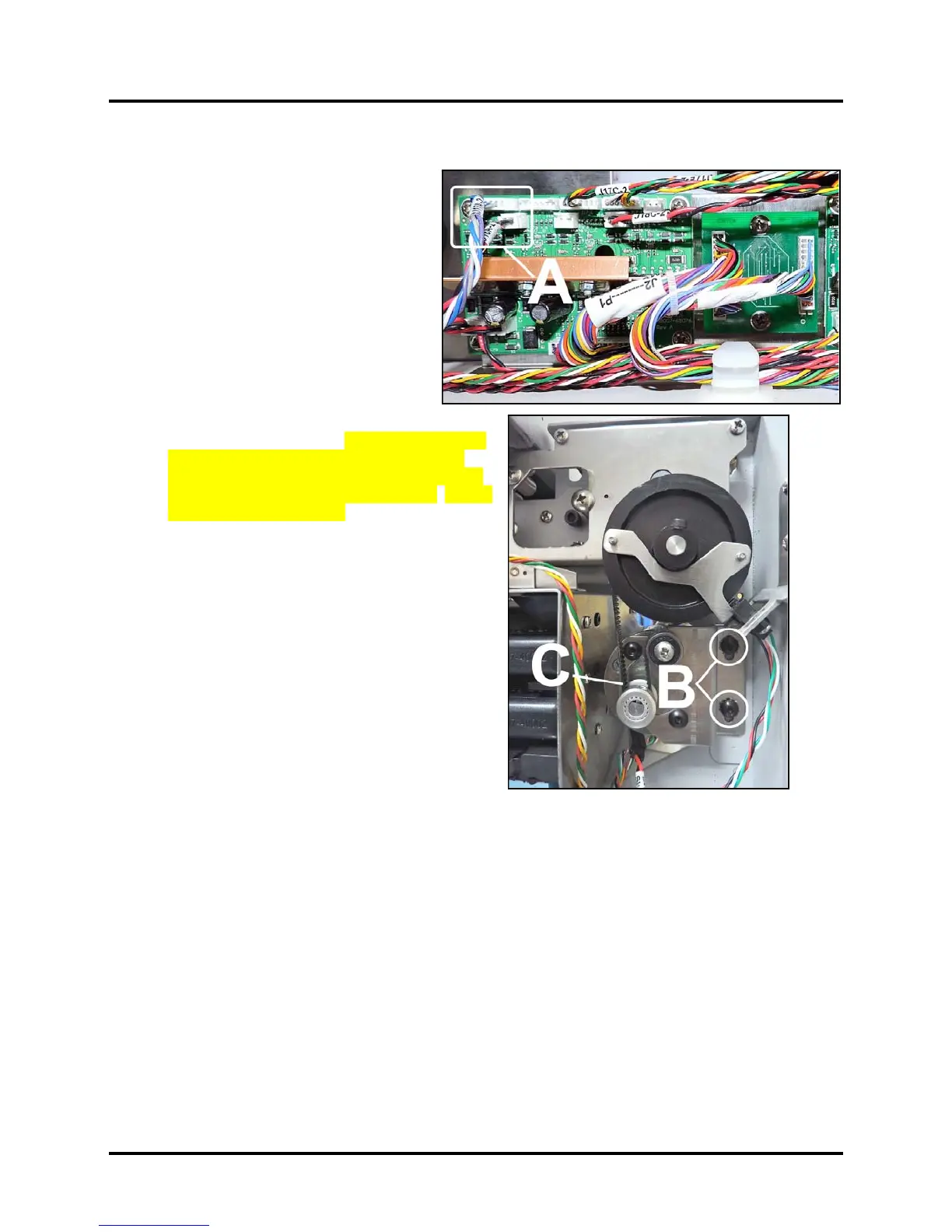

Replace Media Thickness Motor
1. Remove Right-hand Operator Side
Cover, Non-Operator Side Cover and
Exit Cover.
2. Open the Ink Tank Door.
3. Disconnect the Media Thickness Motor
to DPCA-2 wire harnesses J17A and
J18A [A] from the DPCA-2 terminals.
4. Remove (2) screws [B] securing the
Media Thickness Motor Bracket to the
Side Frame.
5. Remove Belt from Motor Pulley [C] and
remove the Motor Assembly.
6. Reinstall in reverse order. NOTE: Check/adjust
tension on the Media Thickness Motor Drive
Belt. See “Media Thickness Motor Belt Tension
Adjustment” in the Adjustments Section. System
Test: Press Clamshell Test.
