SECTION 5
DISASSEMBLY AND ASSEMBLY
44

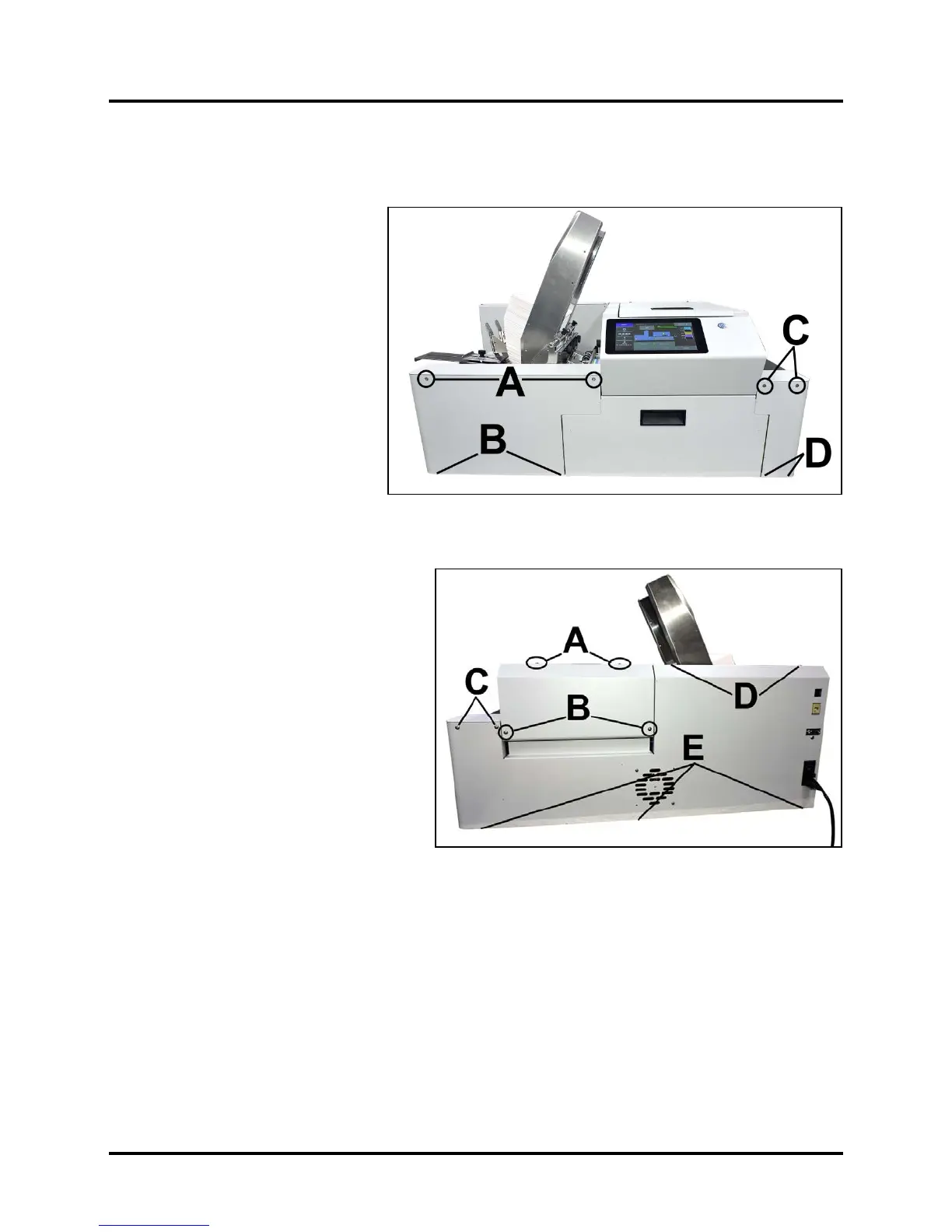

Printer Covers
Operator Side Covers
Left-Hand Cover:
1. Raise Top Assembly and open
Ink Tank Door. Remove (2)
screws at top [A] and bottom [B]
of Left-hand Cover.
2. Reassemble in reverse order.
Right-Hand Cover:
1. Remove (2) screws at the top
[C] and (2) screws at the bottom
[D] of the Right-hand Cover.
2. Reassemble in reverse order.
Non-Operator Side Covers
Top Assembly Rear Cover:
1. Remove (2) screws from top [A] and
bottom [B] of Top Assembly Rear Cover.
2. Reassemble in reverse order.
Non-Operator Side Cover:
1. Remove (2) screws [C] and (2) screws
[D] from the top of the Non-Operator
Side Cover.
2. Remove (3) screws from bottom [E] of
Non-Operator Side Cover.
3. Carefully pull Cover away from Printer.
Disconnect Fan Assembly wire harness
from the Interface Board wire harness at connector.
DO NOT strain or break wire harness or connectors.
4. Reassemble in reverse order.
