SECTION 5
DISASSEMBLY AND ASSEMBLY
73
Remove Media Thickness Adjusting Assembly
1. Remove the Right-
hand Operator Side
Cover.
2. Remove the Non-
Operator Side Cover
and the Top Assembly
Rear Cover.
3. Open the Ink Tank
Door. Raise the Top
Assembly.

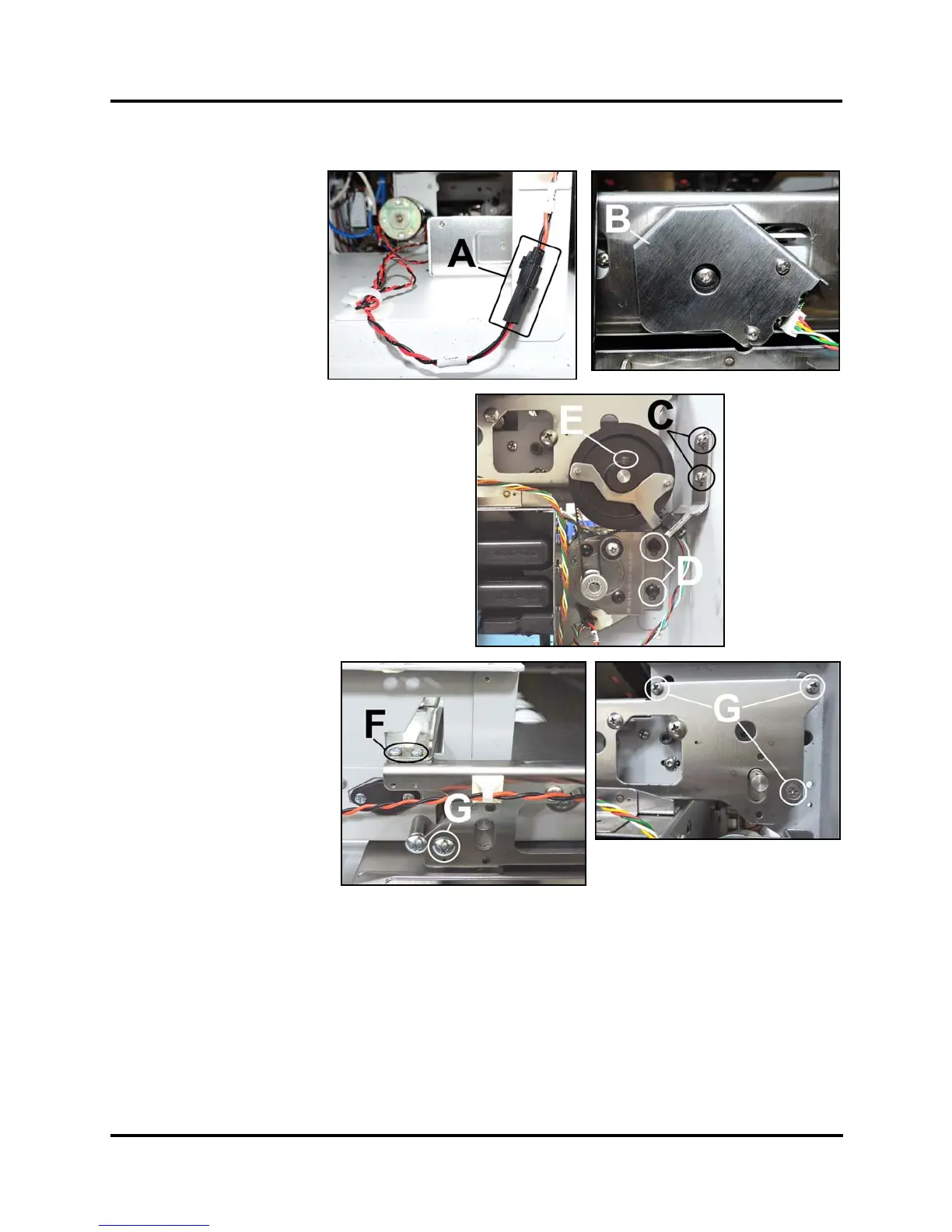

Operator Side:
1. Disconnect the Top Assembly Switch wire
harness at the connector [A].
2. Remove the Paper Path Encoder Guard and
Encoder Wheel [B].
3. Remove (2) screws [C] securing the Media
Thickness Adjustment Sensor Bracket.
Carefully set the Sensor Assembly aside.
4. Loosen the Media Thickness Adjusting Motor
mounting screws [D] to release tension on the
Drive Belt.
5. Loosen the mounting screw [E] to remove the
Media Thickness Lift
Pulley and Belt.
6. Remove (2) screws [F]
securing the Hold-down
Wheels Support.
7. Remove (4) screws [G]
securing the Media
Thickness Lift Frame to
the Lift Supports.
8. Remove the Lift Frame
from the Printer.
9. Gently lower the Top
Assembly.
To Next Page
