SECTION 5
DISASSEMBLY AND ASSEMBLY
75

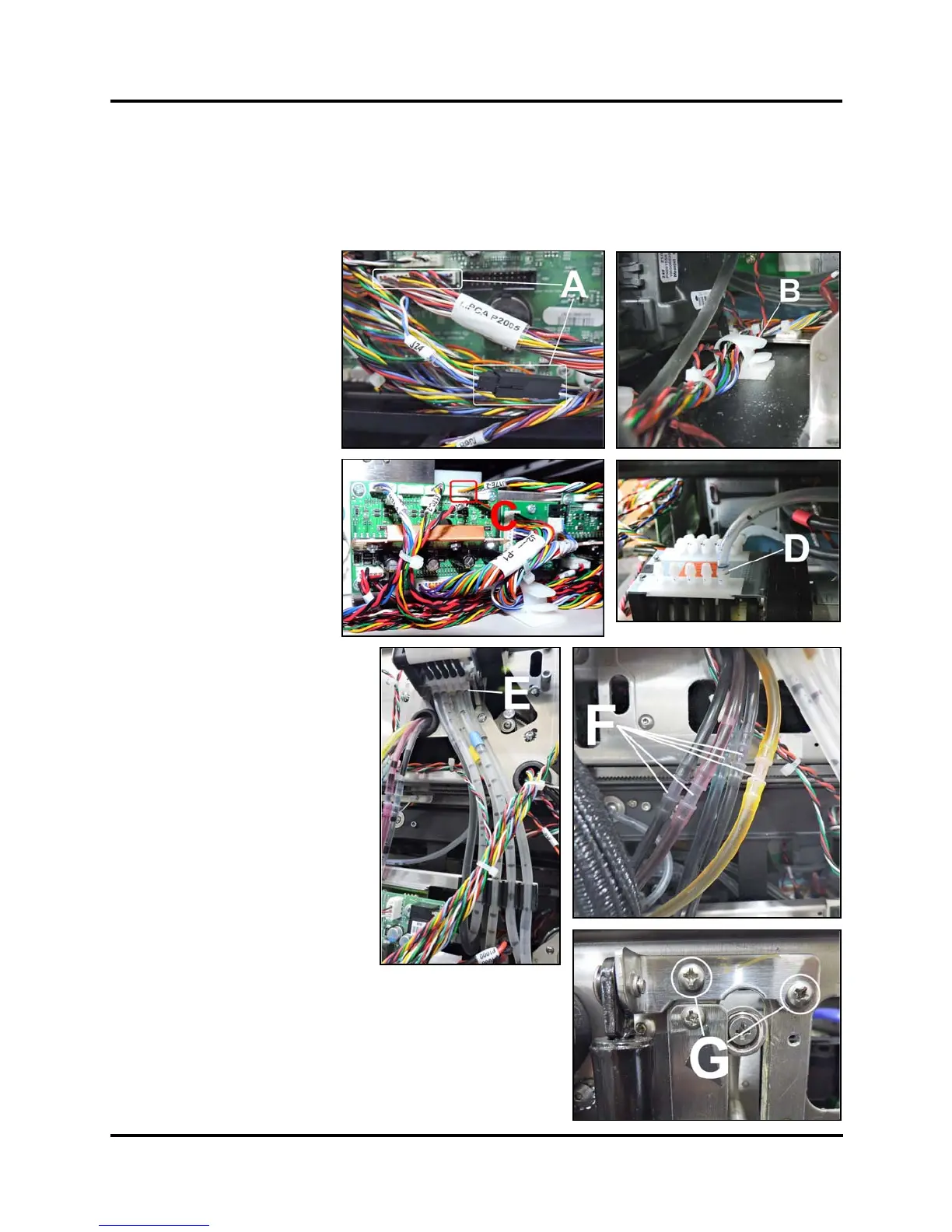

Ink Station Disassembly
Remove Ink Station
Removing the Ink Station allows easy access to all of the components. Make sure you have run System Deprime
before powering the Printer OFF. NOTE: Be careful of ink drips when disconnecting Ink Hoses.
1. Remove the Non-
Operator Side Cover and
Exit Cover.
2. Remove Ink Tank Door.
3. Disconnect wire harness
bundle P2005 from
MPCA [A]. Disconnect
J24 at connector. Pull
wire harness away from
other wires so it will not
snag or pull. Open the
wire clamp [B] inside the
Printer to release the wire
harness.
4. Disconnect Waste Pump
wire harness J17E-2
from DPCA-2 [C].
5. Disconnect the hose from
the top of the Ink Waste
Pump [D].
6. Disconnect 5 color-coded hoses
from under the Peristaltic
Pump [E].
7. Disconnect 5 color-coded hoses
going to the Dual Pinch Valve
at the hose barb connectors [F].
8. Remove the Support Strut and
Top Bracket (2 screws) [G].
