SECTION 5
DISASSEMBLY AND ASSEMBLY
53

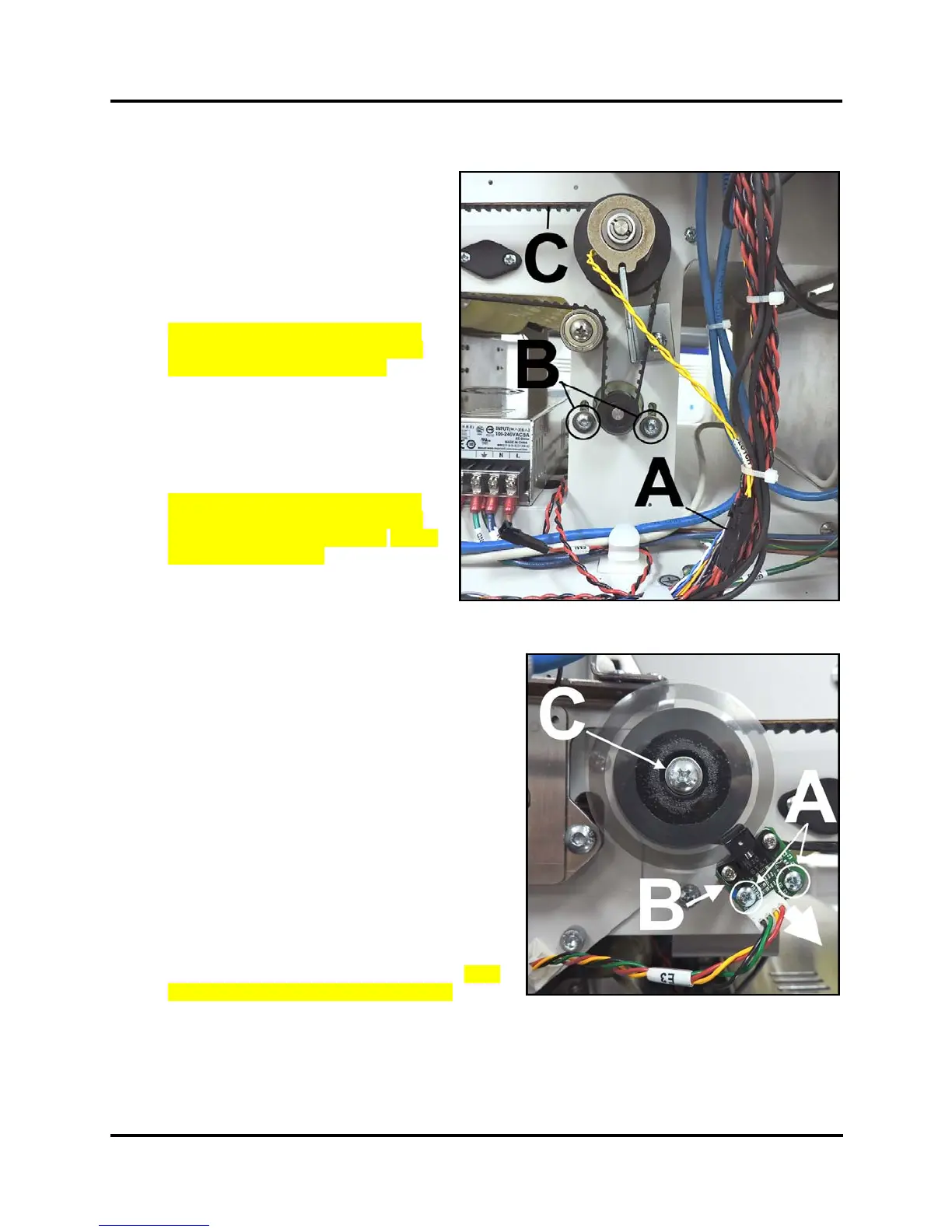

Replace Feed Drive Motor and Belt
1. Remove the Non-Operator Side Cover.
2. To remove the Feed Drive Belt:
[A] Disconnect the Clutch wire harness at
the connector.
[B] Loosen (2) motor mount screws. Slide
motor in slots to release Belt tension.
[C] Remove the Belt.
[D] Install in reverse order.
Tension the Belt for proper operation.
See “Tensioning the Feed Motor Drive
Belt” in the Adjustments section.
3. To remove the Feed Drive Motor:
[B] Remove (2) motor mount screws.
[C] Remove the Motor Assembly.
Disconnect the Red (POS) and Black (NEG)
wire harnesses.
[D] Install in reverse order.
Tension the Belt for proper operation.
See “Tensioning the Feed Motor Drive
Belt” in the Adjustments section. System
Test: Press Feeder Test.
Replace Feeder Encoder
1. Remove the Non-Operator Side Cover.
2. Remove the Encoder Sensor from the Non-
Operator Side Frame.
[A] Remove (2) screws holding Encoder Circuit
Board to two standoffs.
[B] Remove the Encoder Sensor by carefully moving
the Sensor down and away from the Encoder Wheel.
NOTE: Be very careful not to damage the flexible
Encoder Wheel.
3. Remove the Encoder Wheel Assembly from the Pull
Out Shaft Assembly.
Remove screw and washer from the center of the
Encoder Wheel [C]. Do not bend or damage
Encoder Wheel during removal.
4. To Reinstall: Insert screw with washer through
Encoder Wheel. Apply Blue Loctite to threads. Insert
screw into threaded end of the Pull Out Shaft.
5. Reassemble in reverse order. NOTE: Check that Encoder Wheel and Drive Belt turn freely.
