SECTION 5
DISASSEMBLY AND ASSEMBLY
65

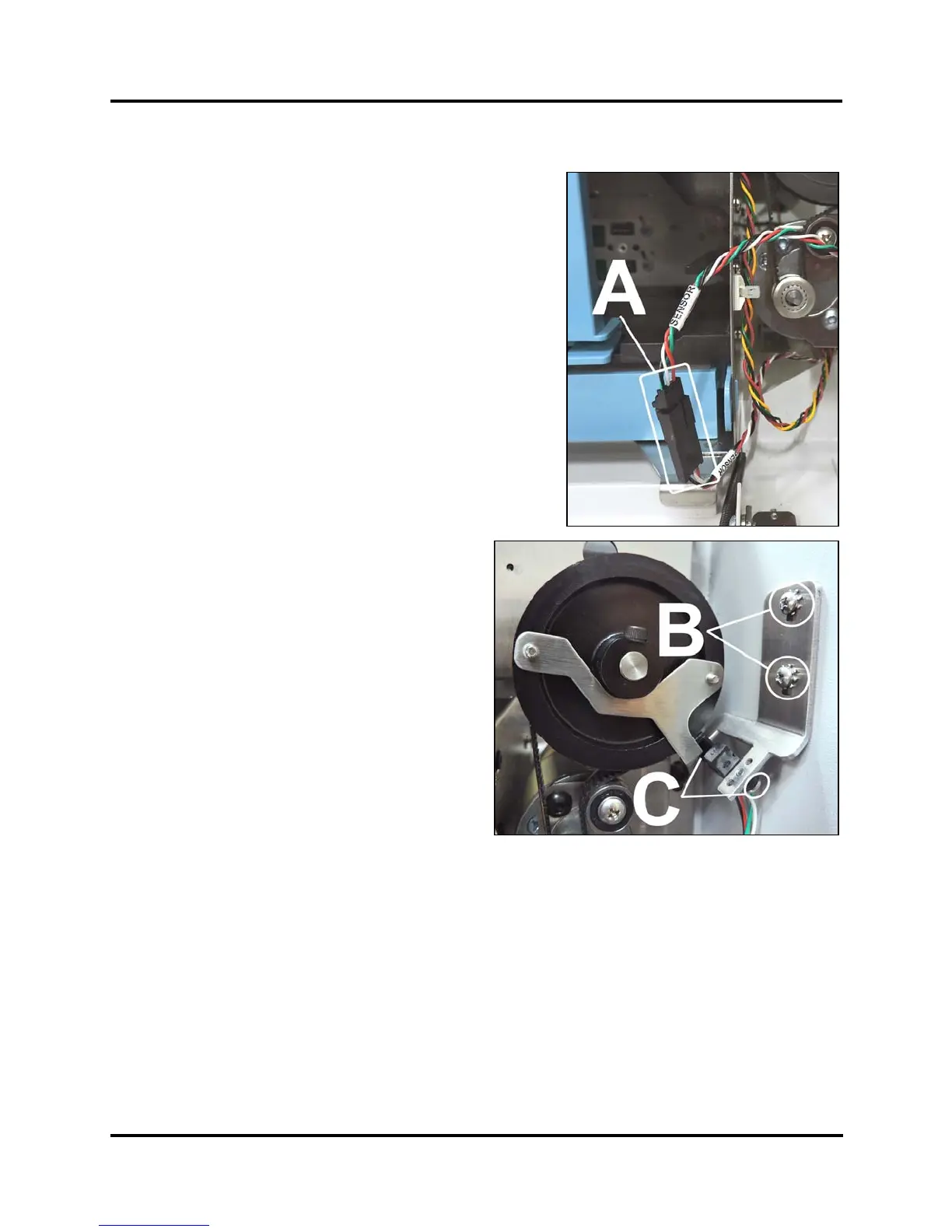

Replace Media Thickness Home Sensor
1. Remove Right-hand Operator Side Cover.
2. Open the Ink Tank Door.
3. Disconnect the Media Thickness Home Sensor at the wire
harness connector [A].
4. Remove (2) screws [B] securing the Sensor Bracket
Assembly to the Side Frame.
5. Remove (2) screws [C] securing the Sensor Assembly to the
Bracket.
6. Install in reverse order. NOTE: Remember to reconnect
the Media Thickness Home Sensor wire harness.
To Next Page
