SECTION 5
DISASSEMBLY AND ASSEMBLY
46

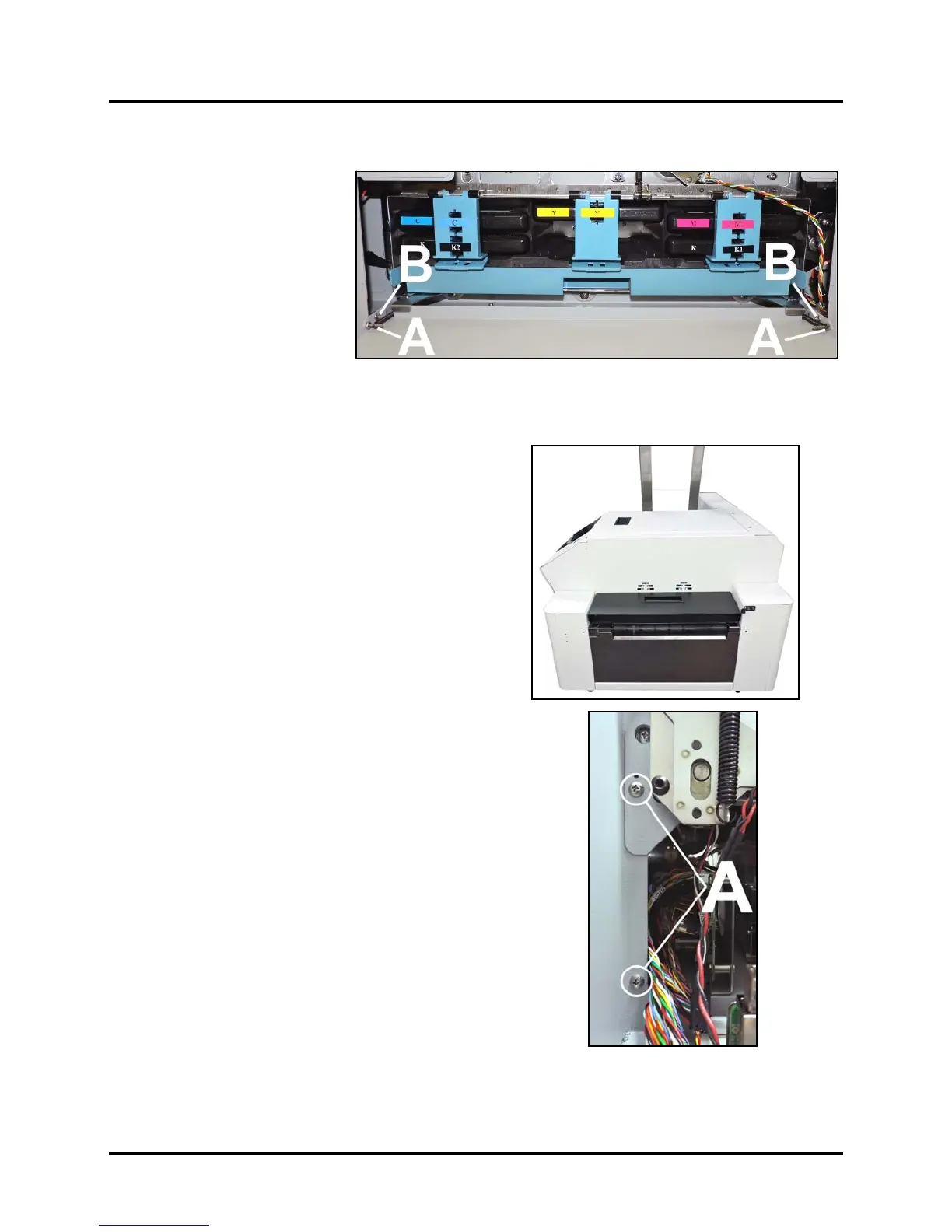

Ink Tank Door
1. Open the Ink Tank Door.
2. Carefully unhook (2)
springs [A] from the Ink
Tank Door studs.
3. Remove (1) mounting
screw from each side [B].
Remove Door.
4. Reassemble in reverse
order.
Exit Cover
1. Remove the right-hand Operator Side Cover.
2. Remove Non-Operator Side Cover.
3. Remove (4) screws (2 screws per side) [A]
securing the cover to the Side Frames.
Remove Cover.
4. Reassemble in reverse order.
To Next Page
