SECTION 5
DISASSEMBLY AND ASSEMBLY
60

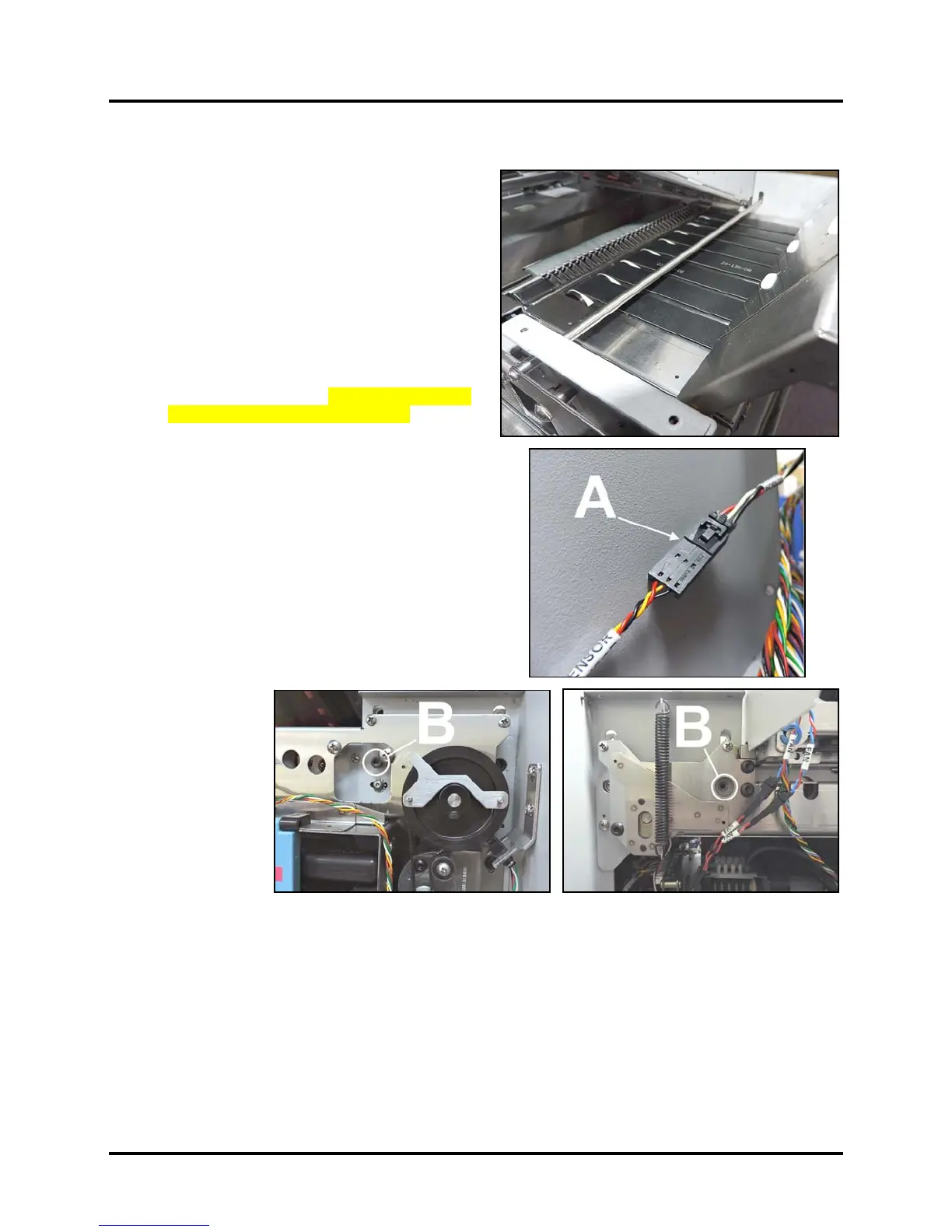

Replace Conveyor Assembly
1. Remove Right-hand Operator Side Cover,
Non-Operator Side Cover and Exit Cover.
2. Remove the Exit Wheels Assembly.
3. Open the Ink Tank Door.
4. Disconnect Media Exit Sensor at the wire harness
connector [A].
5. Remove (2) mounting screws [B] (1 on each side).
6. Lift the Conveyor Assembly out of the Printer.
Disconnect the Transport Roller Belt.
7. Install in reverse order. NOTE: Remember to
reattach the Transporter Roller Belt and
reconnect the Media Exit Sensor wire harness.
