SECTION 5
DISASSEMBLY AND ASSEMBLY
57

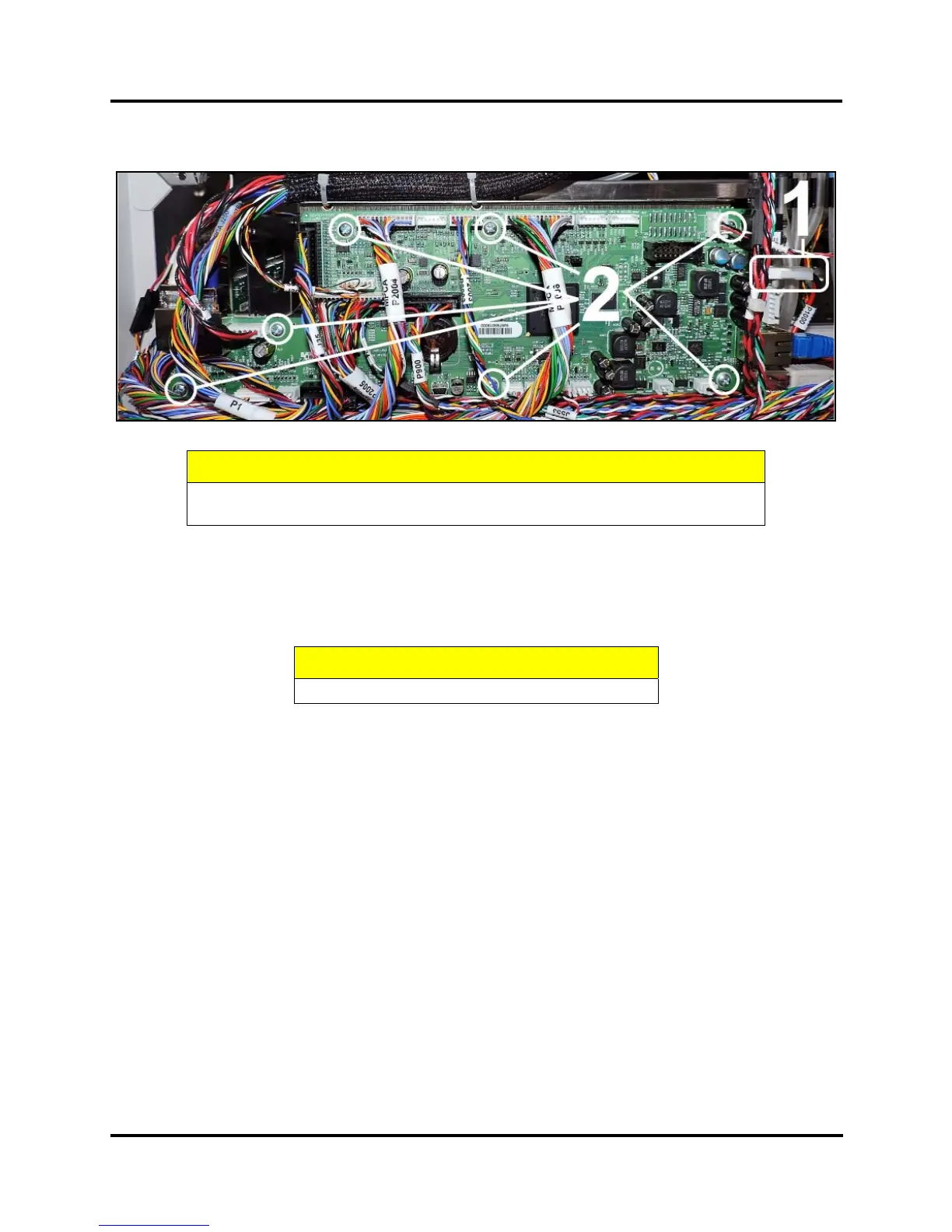

Replace Main PC Board (MPCA)
1. Remove Non-Operator Side Cover.
2. Unplug PC Board power cord [1] from the P1000 terminal on the MPCA Board.
3. Disconnect the remaining wire harnesses from the MPCA Board terminals.
NOTE: Wire harnesses and PC Board are labeled for easy reconnection.
CAUTION
DO NOT DAMAGE WIRES DURING REMOVAL.
4. Remove (7) screws [2] that attach MPCA Board to Inlet Port Bracket and remove PC Board.
5. Reassemble in reverse order.
CAUTION
MAKE SURE THAT YOU ARE PROPERLY GROUNDED BEFORE HANDLING
PC BOARD. STATIC ELECTRICITY CAN DAMAGE BOARD.
