SECTION 5
DISASSEMBLY AND ASSEMBLY
62

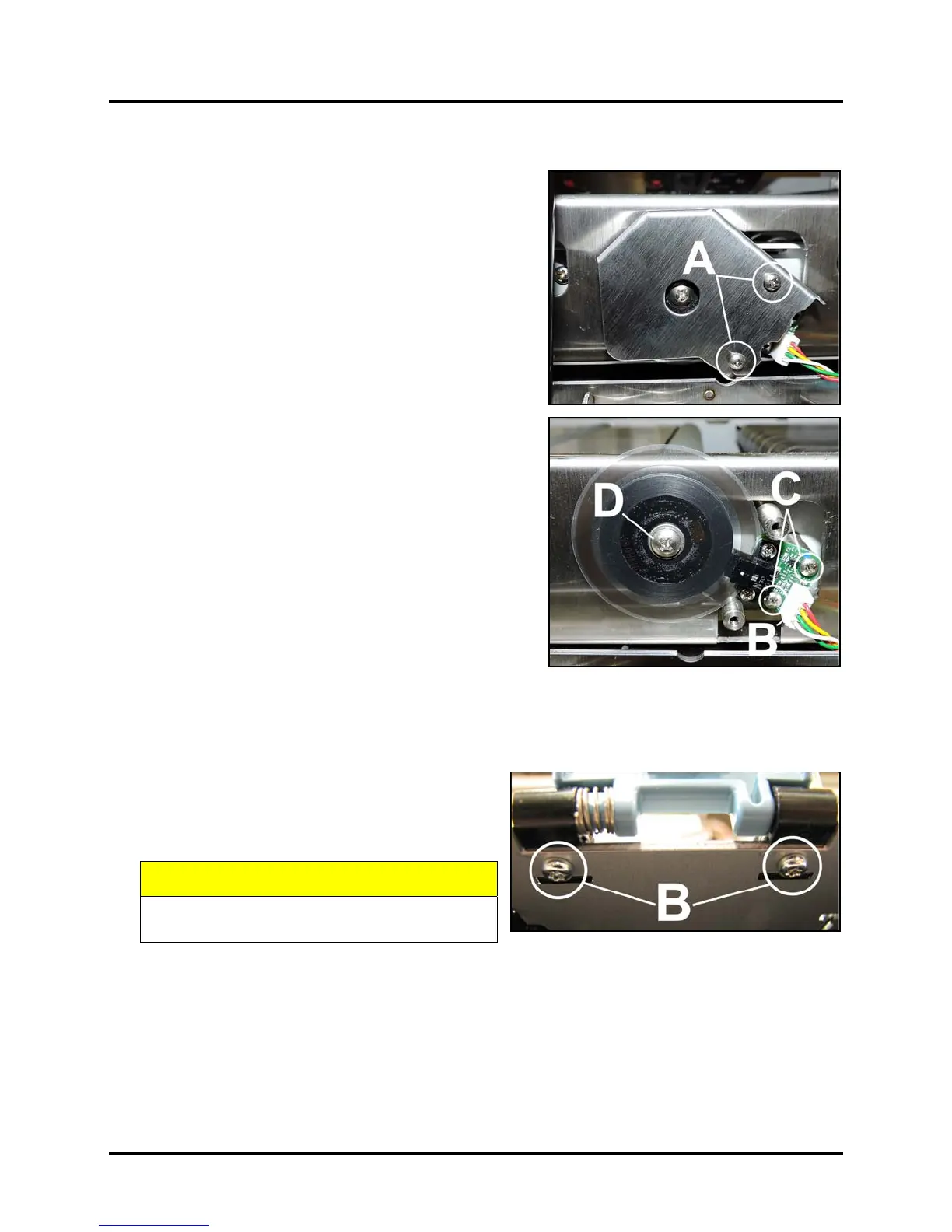

Replace Media Path Encoder Assembly
1. Open Top Assembly.
2. Remove (2) screws [A] securing Encoder Cover to the
Side Frame.
3. Disconnect wire harness [B] from Encoder Sensor
Assembly PC Board.
4. Remove (2) screws [C] securing Encoder Sensor
Assembly to Side Frame and pull away from Encoder
Wheel. NOTE: Be careful not to damage Wheel.
5. Remove (1) screw and washer [D] holding Encoder Wheel
to Roller Shaft. Remove Encoder Wheel.
6. Install in reverse order.
Replace Ink Tank Latches
Ink Tanks must be removed prior to replacing latches. See “Replace Ink Tanks” in Maintenance Section. Printer
must be flat on a level surface.
[A] Open Latch.
[B] Remove (2) screws located on underside of latch
hinge block. (You may need a mirror to see screw
heads.) Remove Latch Assembly.
CAUTION
LATCHES ARE SPRING-LOADED, BE
CAREFUL THAT SPRINGS DO NOT FLY OFF.
To Next Page
