SECTION 5
DISASSEMBLY AND ASSEMBLY
52

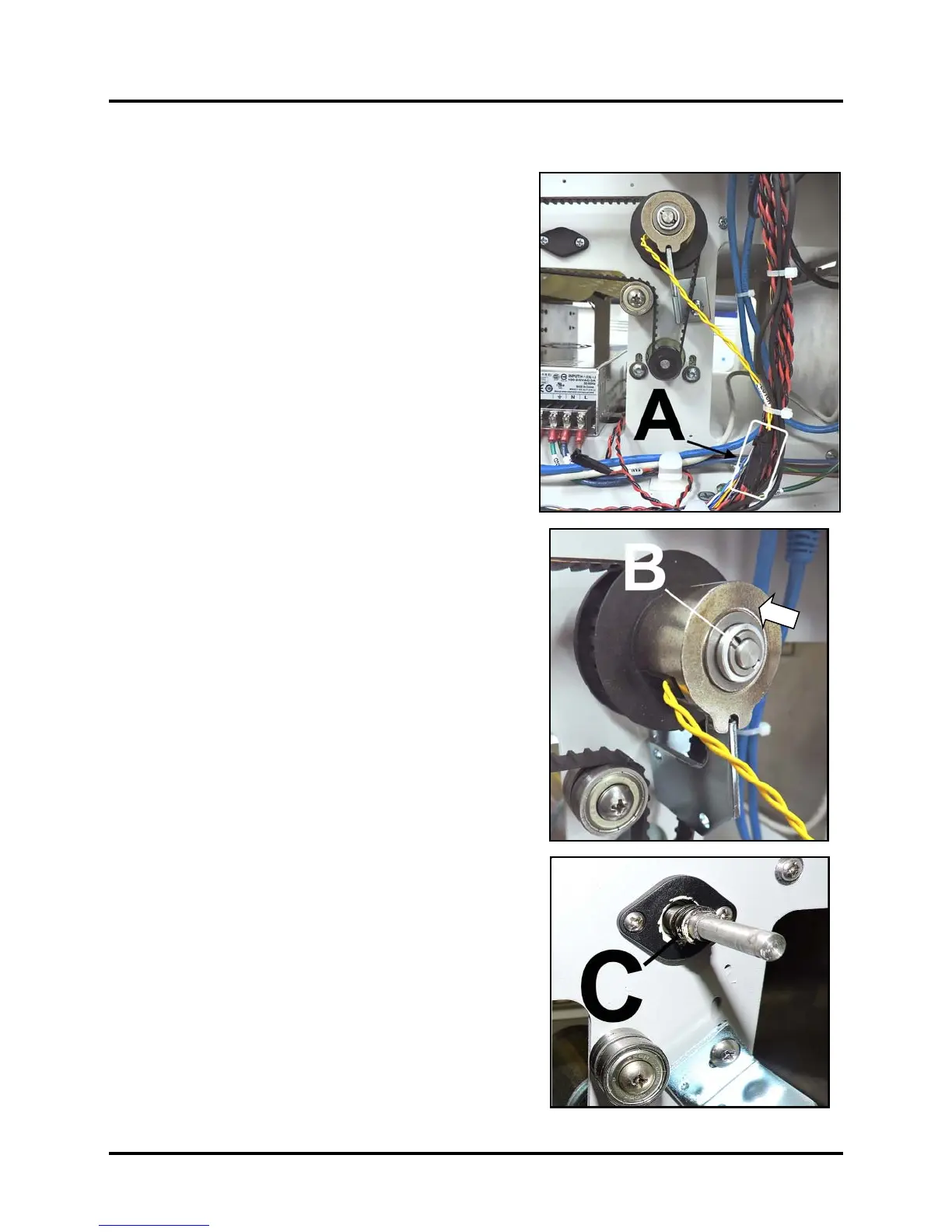

Replace Clutch
1. Remove the Non-Operator Side Cover.
2. Disconnect the Clutch wire harness from the Clutch
extension wire harness at the connector [A].
3. Push the Clutch in toward the Pulley to access retaining
pin [B]. Remove retaining pin.
4. Remove the Clutch from the Feed Roller Shaft.
NOTE: The Pulley is also removable. Watch for
washers on either side of the Pulley and for a Spring
[C] mounted behind the Pulley. When reinstalling the
Pulley, first apply a dab of white lithium grease to the
shaft near the bearing.
5. Reassemble in reverse order.
