SECTION 5
DISASSEMBLY AND ASSEMBLY
66
Replace Center Plate Assembly
1.
Remove Left
-hand Operat
or Side
Cover and Non-
Operator Side
Cover. (
You may also have to
remove the Printer Ports Brack
e
t
.)
2.

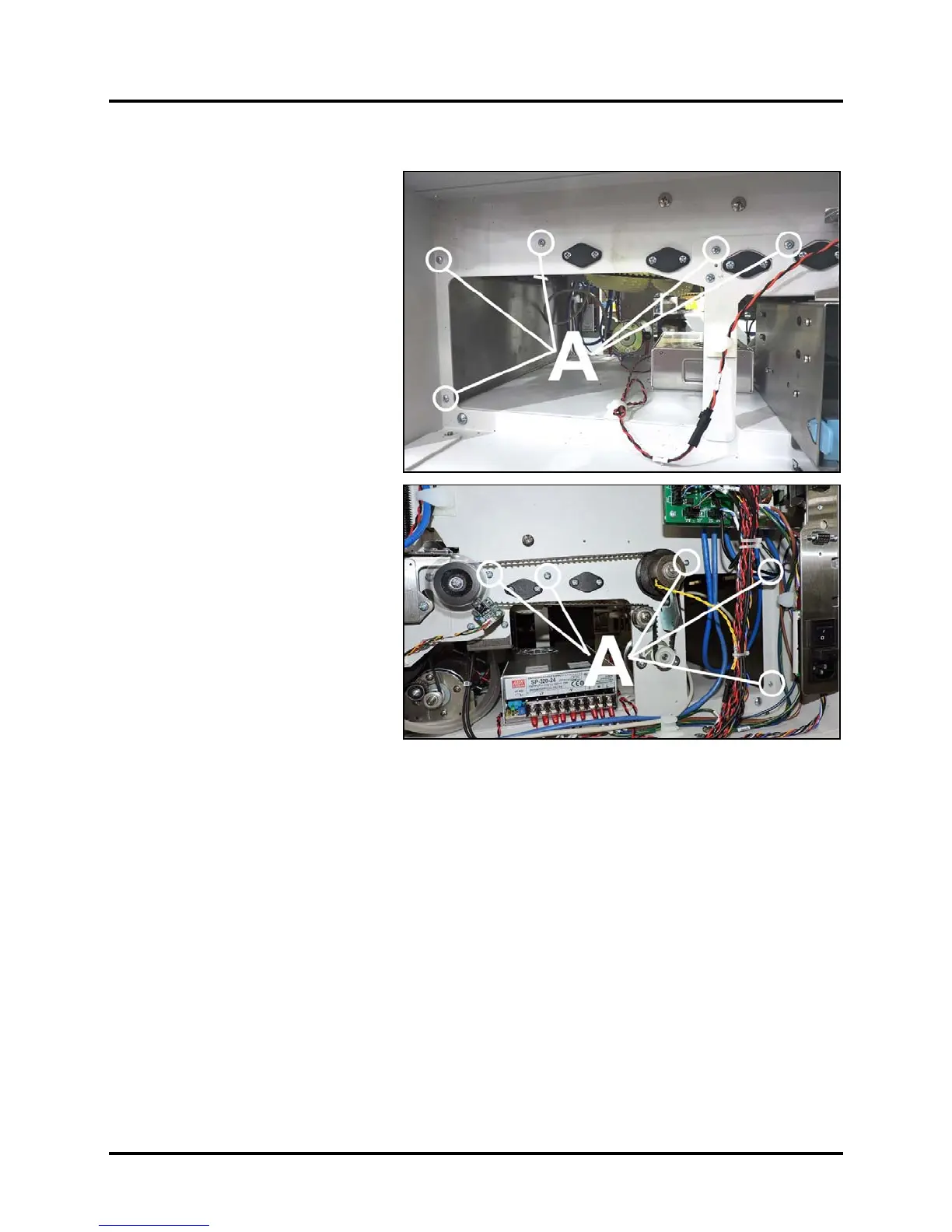

Remove (10)
mounting
screws
[A]
(
5 screws per side
).
3.
Install in reverse order.
