SECTION 5
DISASSEMBLY AND ASSEMBLY
107
Remove Service Station Base Plate
1. Using the Touchscreen, select “Menu,” and
tap “Maintenance” from the drop-down
menu. Tap “Inspect Sled”. The Service
Station moves out from under the Printhead
Assembly.
2. Open the Top Cover.

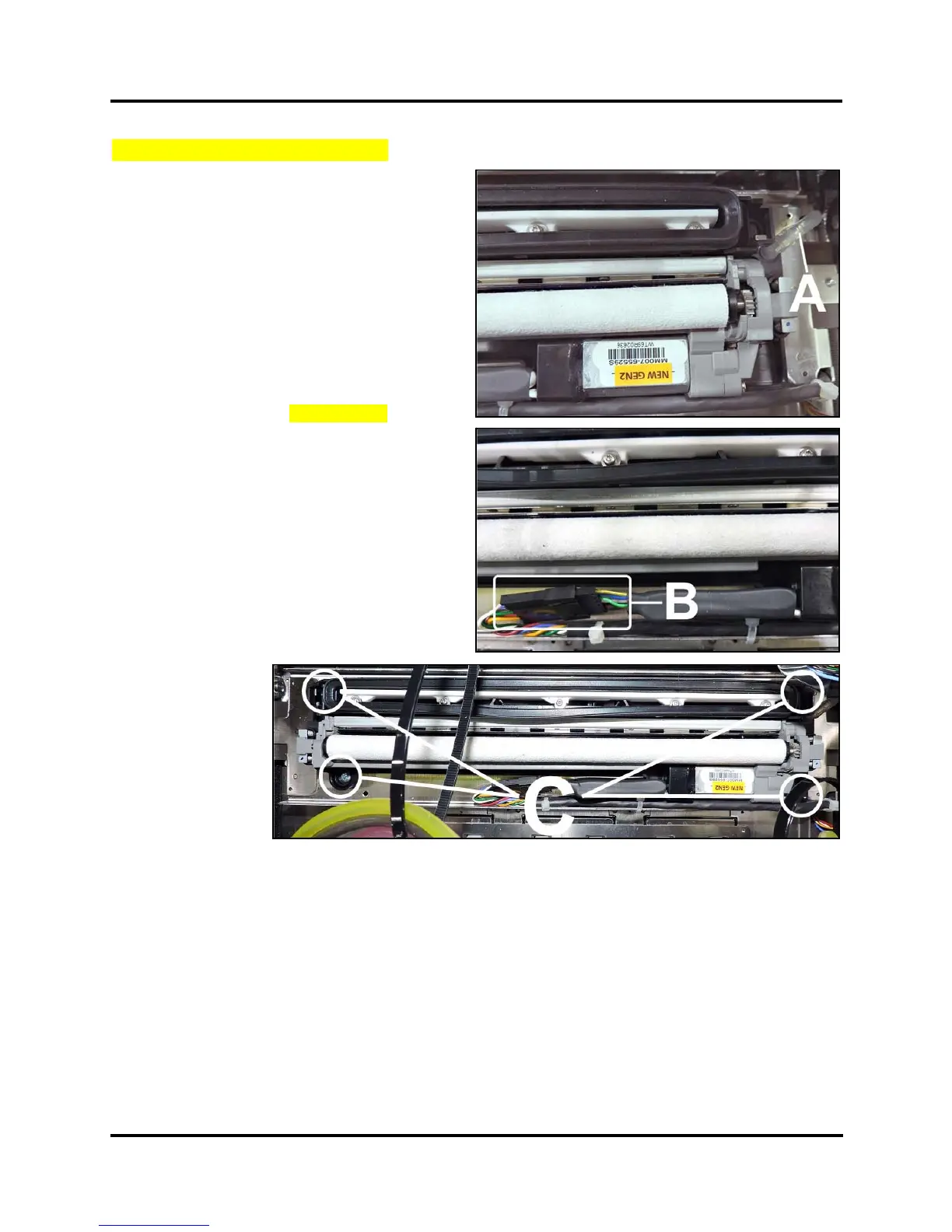

3. Disconnect Ink Waste hose from the
hose barb [A].
4. Disconnect the Wiper Motor wire harness at
the connector [B].
5. Remove (4) screws [C] securing the Service
Station Base to the Service Station Sled
6. Lift the Service Station Assembly and Base
out of the Printer. Be careful, watch for
dripping ink.
NOTE: Capping Station – Do not lose the
(2) inserts the Capping Station rests on
(located behind the release tabs).
NOTE: Wiper Roller Assembly – Be careful
not to lose the springs located under the
Assembly. (2 at each end of the Assembly.)
7. Install in reverse order.
