SECTION 5
DISASSEMBLY AND ASSEMBLY
70

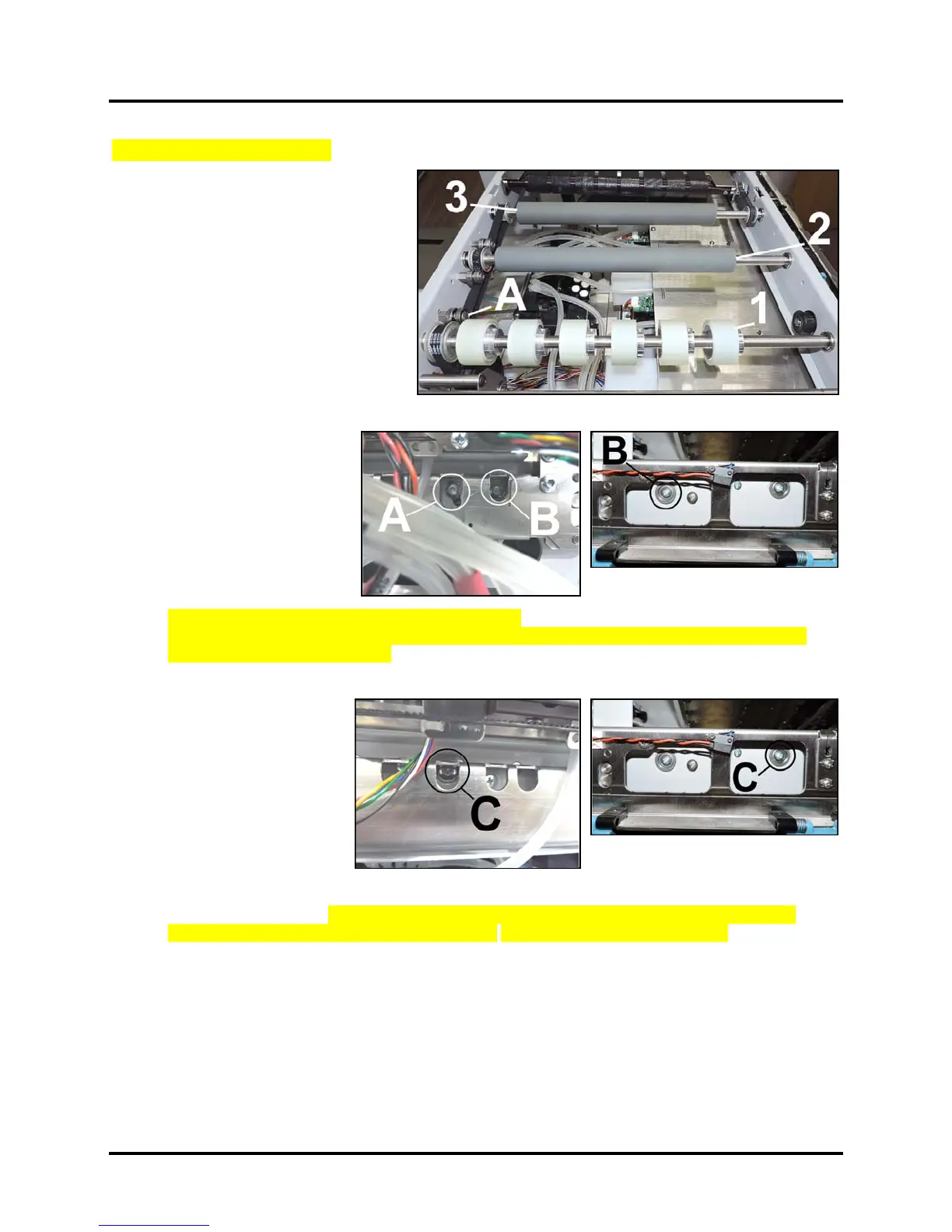

Replace Paper Path Rollers
The Paper Path Rollers include the
[1] Delivery,
[2] Input Print and
[3] Output Print Rollers.
1. Remove Non-Operator Side Cover.
2. Remove Paper Path Plate Assembly
and Ink Drip Tray.
Remove the Delivery Roller:
1. Loosen Idler/Tensioner Roller [A]
mounting screw (located on Non-
Operator side) to release tension on
the Paper Path Drive Belt.
2. Remove (2) screws [B]
securing the Entry Roller
Bearing to the Side Frames
(1 screw per side).
3. Disengage the Entry Roller
Pulley from the Belt and
remove the Entry Roller [1]
from the Printer.
4. Install in reverse order. NOTE: Check/adjust tension
on the Drive Belt. See “Paper Path Roller Belt Tension Adjustment” in the Adjustments Section.
System Test: Press PrintzoneTest.
Remove the Input Print Roller:
1. Loosen Idler/Tensioner
Roller [A] mounting screw
to release tension on the
Paper Path Drive Belt.
2. Remove (2) screws [C]
securing the Bearing to
Side Frames (1 screw per
side).
3. Disengage the Input Roller
Pulley from the Paper Path Drive Belt and remove the Input Roller [2] from the Printer.
4. Install in reverse order. NOTE: Check/adjust tension on the Belts. See “Paper Path Roller Belt
Tension Adjustment” in the Adjustments Section. System Test: Press Printzone Test.
