SECTION 5
DISASSEMBLY AND ASSEMBLY
109
Remove Service Station Positioning Belts
1. Open the Top Cover.
2. Position Service Station Sled under the Printhead Assembly.
3. Remove the Control Panel Cover and the Top Assembly Rear Cover.

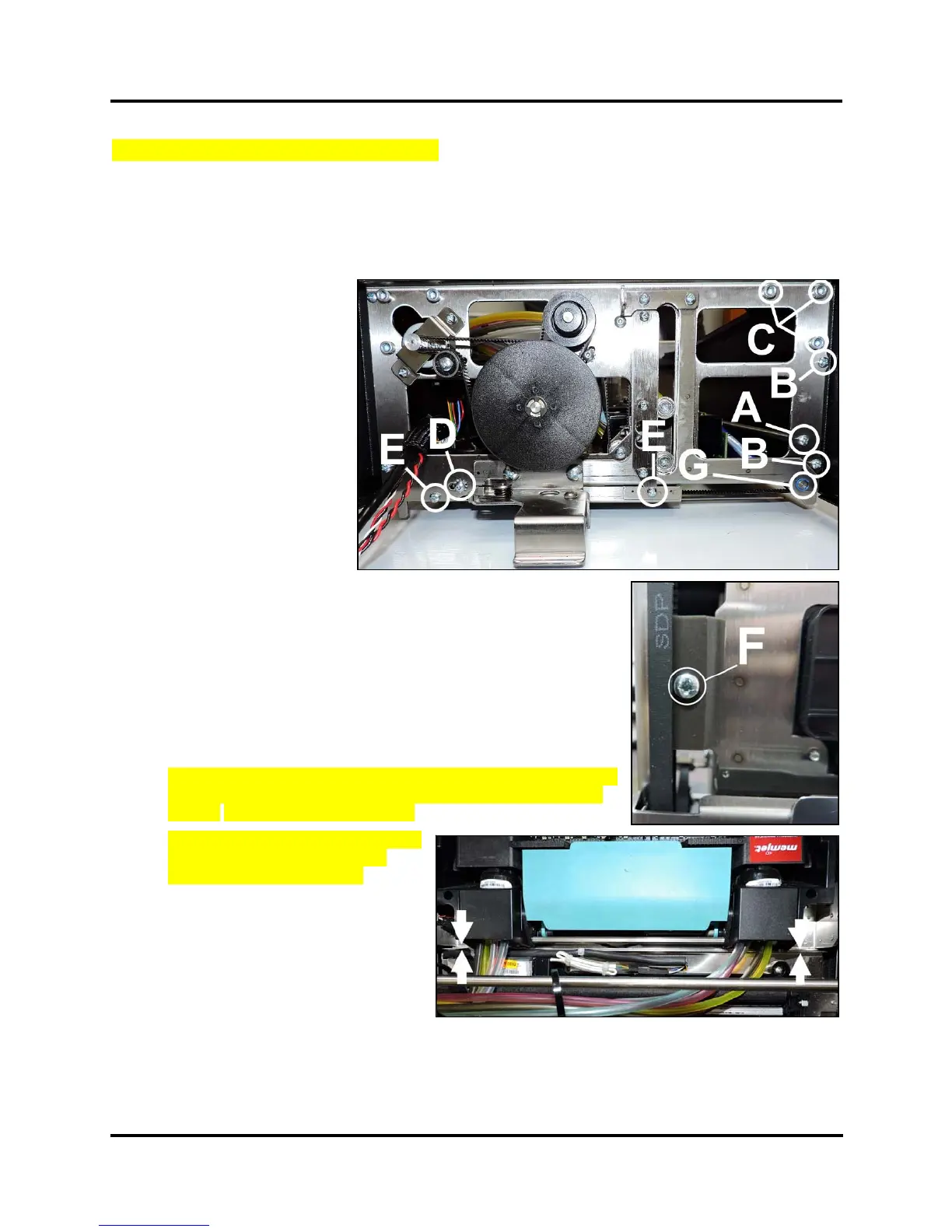

Operator Side:
1. Remove (1) screw [A]
securing the Support Rod.
Remove (4) screws [B]
securing the Top Assembly
Side Panels to the Top
Assembly Frame.
(2 screws per side).
Loosen (3) screws [C]
securing the Top Supports.
(3 screws per side.)
Loosen the Service Station
Belt Tension Pulley [D].
Take Belt off Pulley if
necessary.
Remove (2) screws [E]
securing the Side Frame to
the Base Plate.
2. Open the Ink Tank Door. Raise the Top Assembly. Remove (1)
screw [F] securing the Service Station Slide to the Service Station Sled.
(Access through the Printhead opening in the underside of the Top
Assembly.) Lower the Top Assembly.
3. Pull the Side Frame away from the Top Assembly enough to release the
Service Station Motor Drive Shaft Assembly [G].
4. Remove the Belt.
5. Install in reverse order.
NOTE: Check/adjust Positioning Belts tension. See “Service Station
Position Assembly Belts Tension Adjustment” in the Adjustments
Section. System Test: Press Sled Test.
IMPORTANT: Make sure the Service
Station is installed parallel to the
Printhead Locator Assembly.
Check this by lowering Printhead
Locator Assembly to its lowest point
and pushing the Service Station
Assembly up against it [see arrows].
They should meet flush with no gaps
at either end.
To Next Page
