SECTION 5
DISASSEMBLY AND ASSEMBLY
56
Replace Printhead Home Sensor
1. Remove Non-Operator Side Cover.

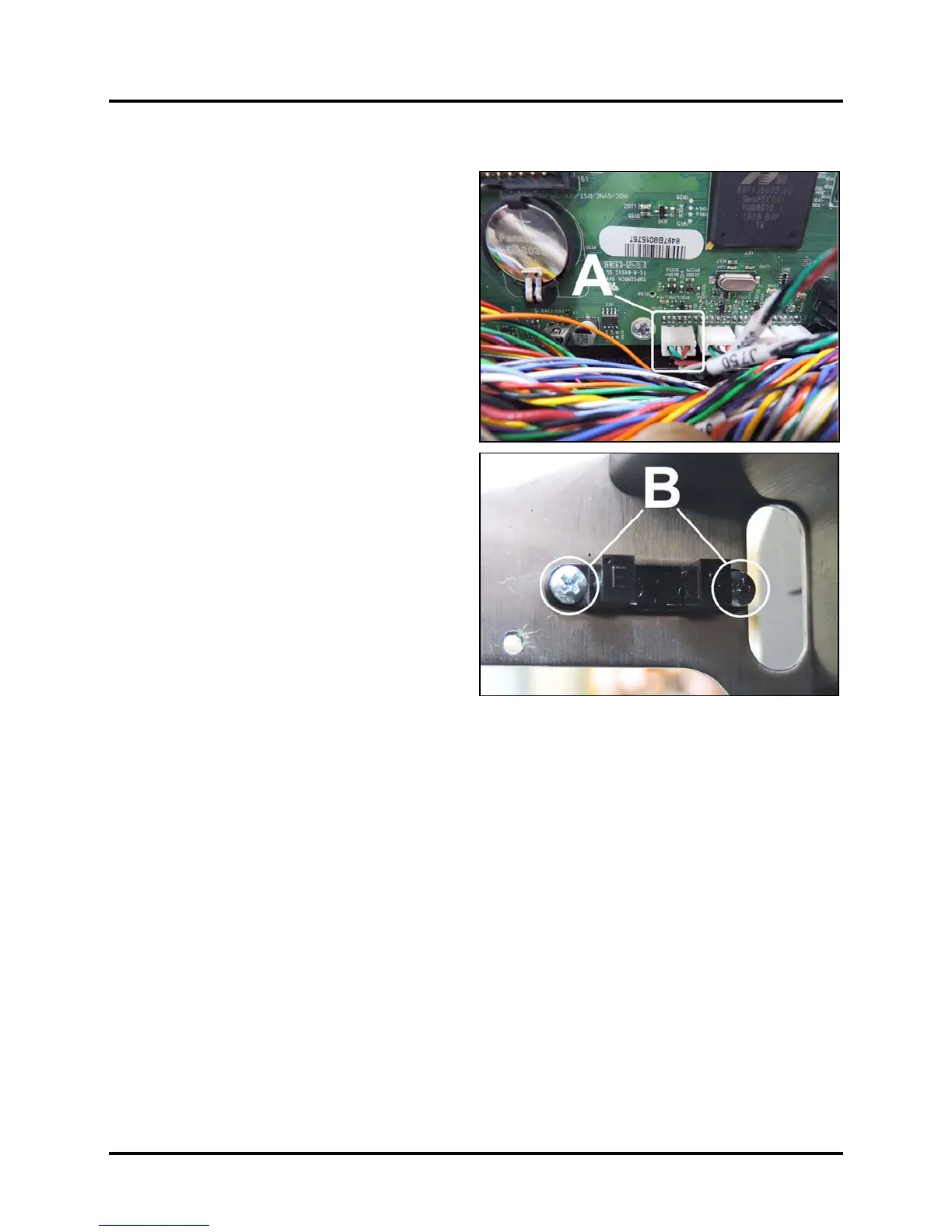

2. Disconnect the Sensor wire harness from
MPCA terminal (J750) [A]. Carefully cut wire
ties as necessary to release the wire harness.
NOTE: Make a note of how the wire harness
is routed and wire tied through the Printer
for easier installation.
3. Open Top Cover. Remove (2) screws [B]
securing the Printhead Lifter Home Sensor to
the Top Assembly Frame.
4. Carefully pull Sensor Assembly wire harness
through the Top Assembly Side Frame.
5. Reassemble in reverse order.
NOTE: Be sure to carefully route and wire
tie the wire harness.
