SECTION 5
DISASSEMBLY AND ASSEMBLY
80

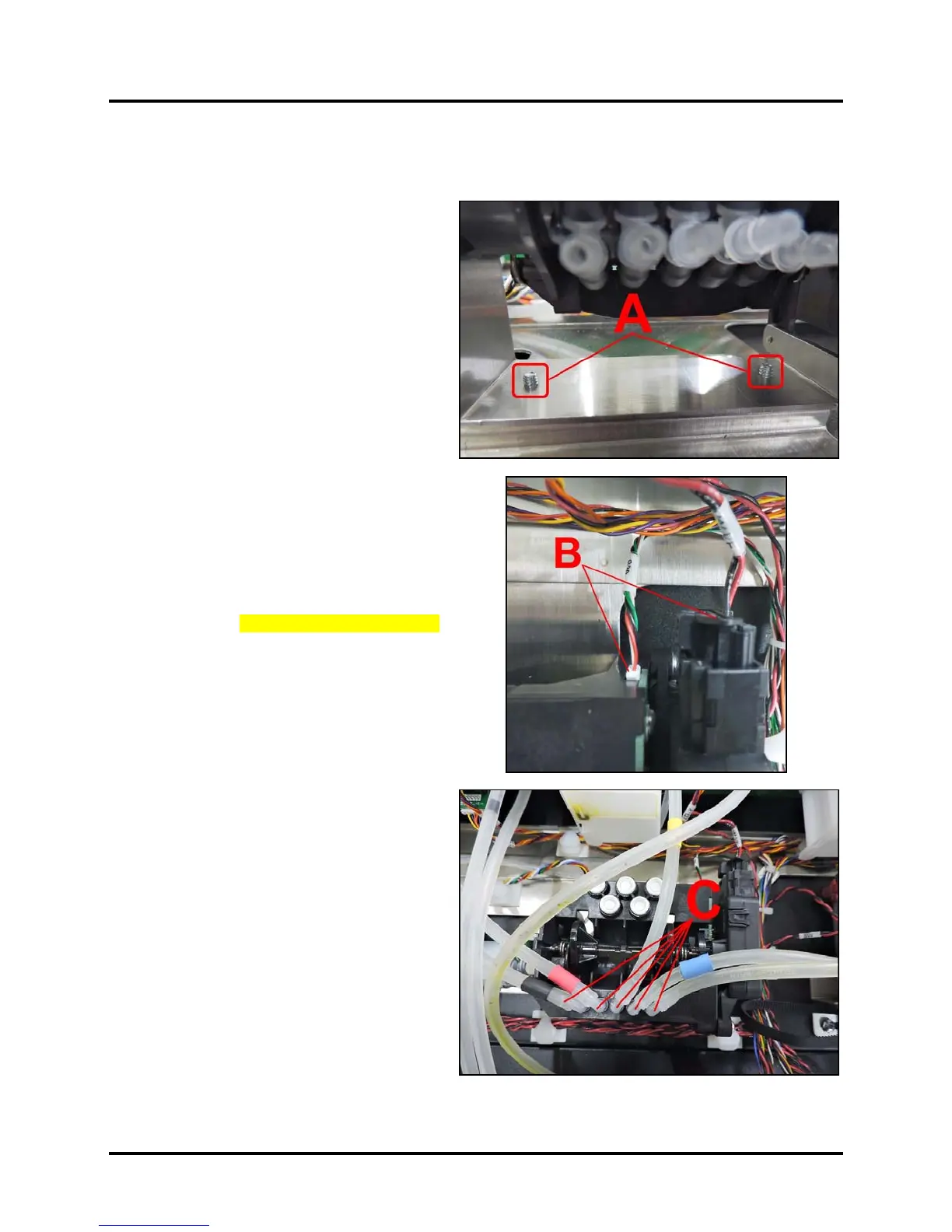

Replace Dual Pinch Valve Assembly
Remove old Valve Assembly:
1. Remove (2) screws [A] that attach the
Valve Assembly to the Ink Station Base.
(Located under Ink Station Base.)
2. Unplug (2) wire harness connectors [B]
from the Valve Assembly.
3. Disconnect Ink Hoses [C].
IMPORTANT! Make sure you know
where each Ink Hose connects.
4. Remove old Pinch Valve Assembly.
Install new Pinch Valve Assembly:
1. Plug wire connectors into the new Pinch
Valve Assembly [B].
2. Attach the Valve Assembly to the Base
with (2) screws [A].
3. Reattach Ink Hoses in to same connectors [C] they
were removed from. NOTE: Check that Hoses
were not stretched or damaged when they were
disconnected. If damaged, or you have any
doubt, cut the damaged or stretched portion off
before installing. Run System Test to check
operation. System Test: Press Valve Test.
4.
