SECTION 5
DISASSEMBLY AND ASSEMBLY
54

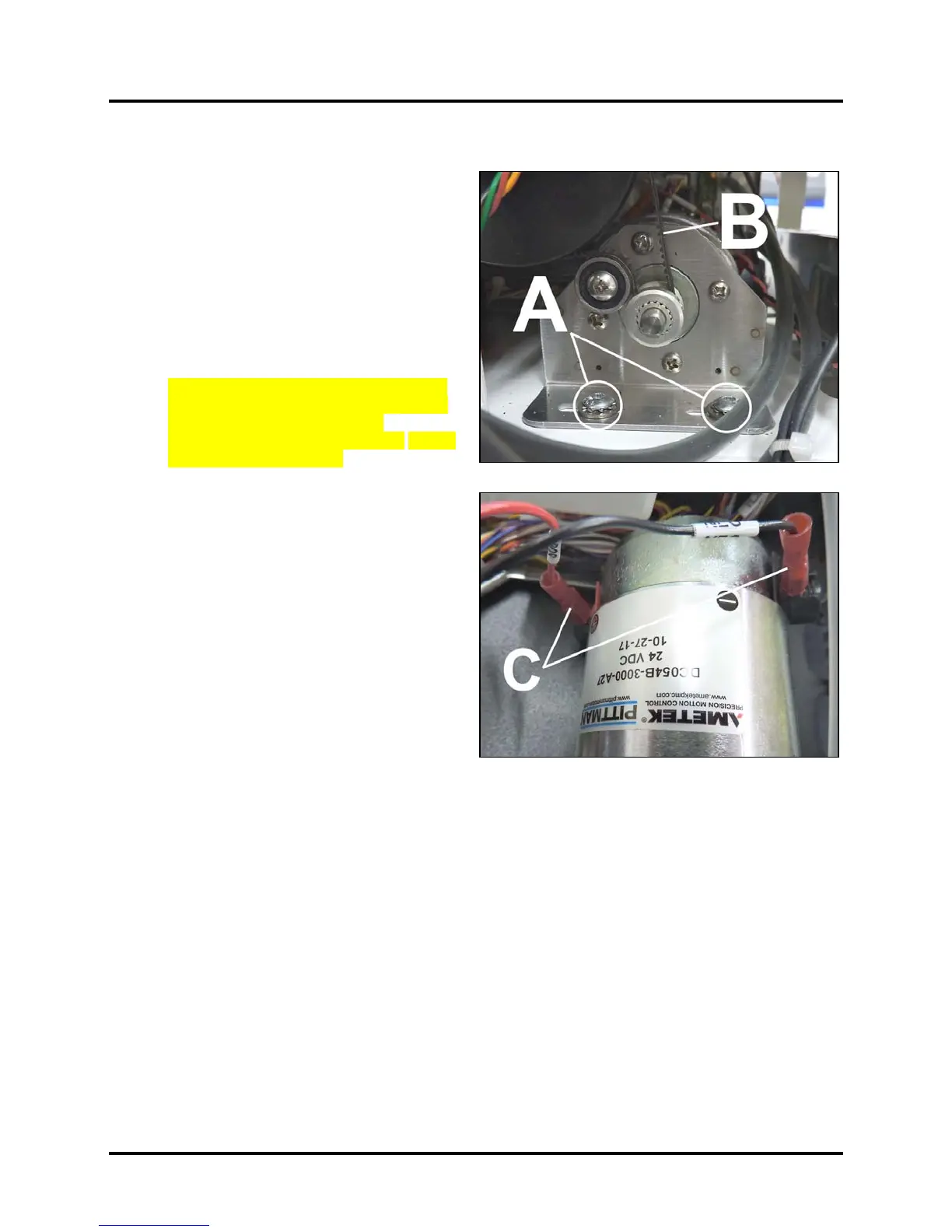

Replace Paper Path Drive Motor
1. Remove Non-Operator Side Cover.
2. Remove (2) mounting screws and washers [A].
3. Disengage drive belt [B] from pulleys.
4. Slowly pull Motor Assembly through the
opening in the Side Frame. Disconnect the
POS red and NEG black wire harnesses [C]
from the Motor Assembly.
5. Remove the Motor Assembly.
6. Reassemble in reverse order.
NOTE: Adjust Motor position to properly
tension belt. See “Paper Path Drive Motor
Belt Tension Adjustment” in the
Adjustments Section of the manual. System
Test: Press Printzone Test.
