SECTION 5
DISASSEMBLY AND ASSEMBLY
69

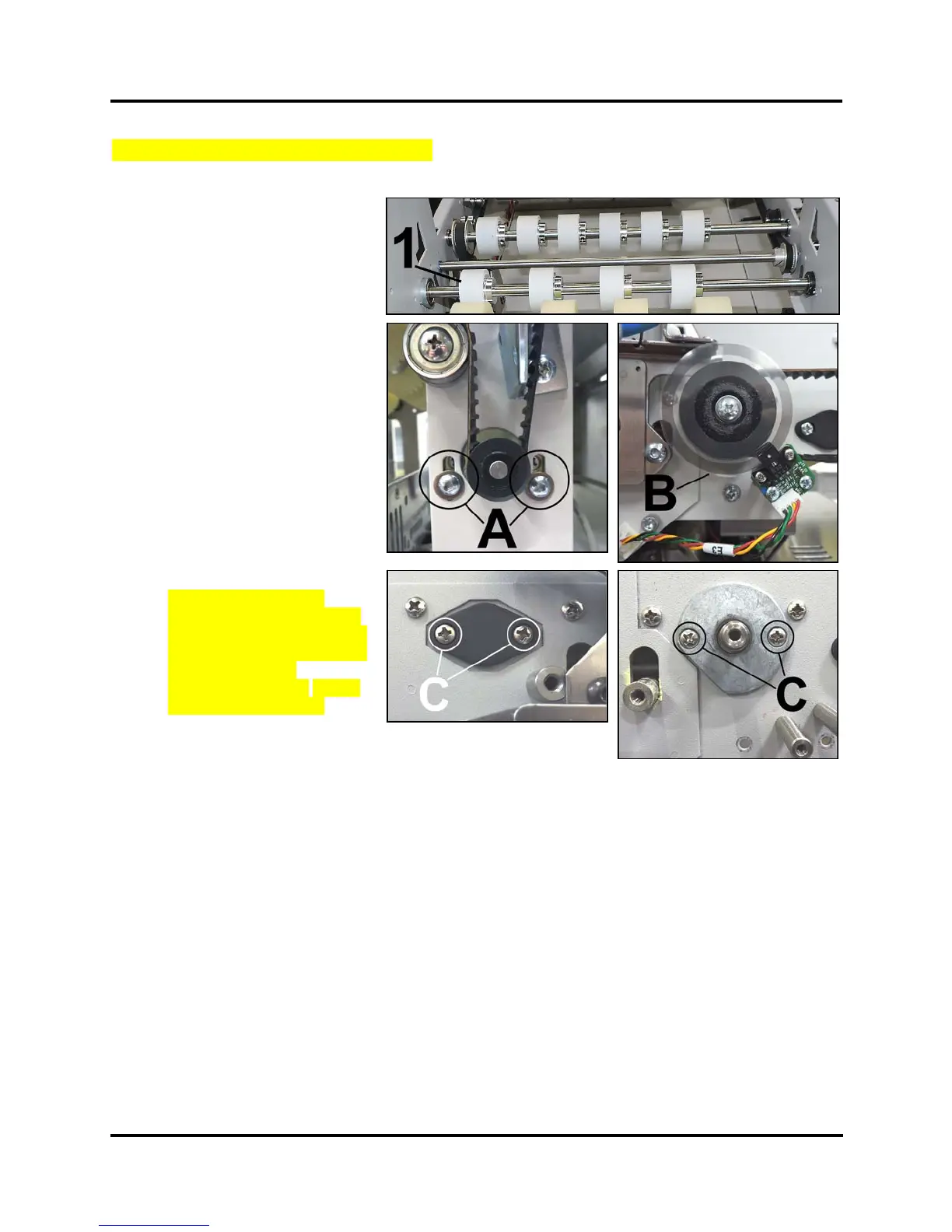

Replace Pull-Out Shaft Roller Assembly
Follow the steps below to remove the Pull-Out Shaft Roller Assembly [1]:
1. Remove the Left Operator Side
Cover and the Non-Operator
Side Cover.
2. Open the Ink Tank Door and
raise the Top Assembly.
3. Remove the Separator and
Center Plate Assemblies
4. Loosen the Feed Motor mounts
[A] to release Feed Drive Belt
tension.
5. Remove the Feed Encoder
Assembly and Pulley [B].
6. Remove (2) screws securing the
Bearing Housings to the Side
Frames [C] (1 Bearing Housing
on each side.)
7. Remove the Pull-Out Shaft
Roller Assembly.
8. Install in reverse order.
NOTE: Check/adjust tension
on the Feed Motor Drive Belt.
See “Feed Roller Belt Tension
Adjustment” in the
Adjustments Section. System
Test: Press Feeder Test.
