SECTION 5
DISASSEMBLY AND ASSEMBLY
105

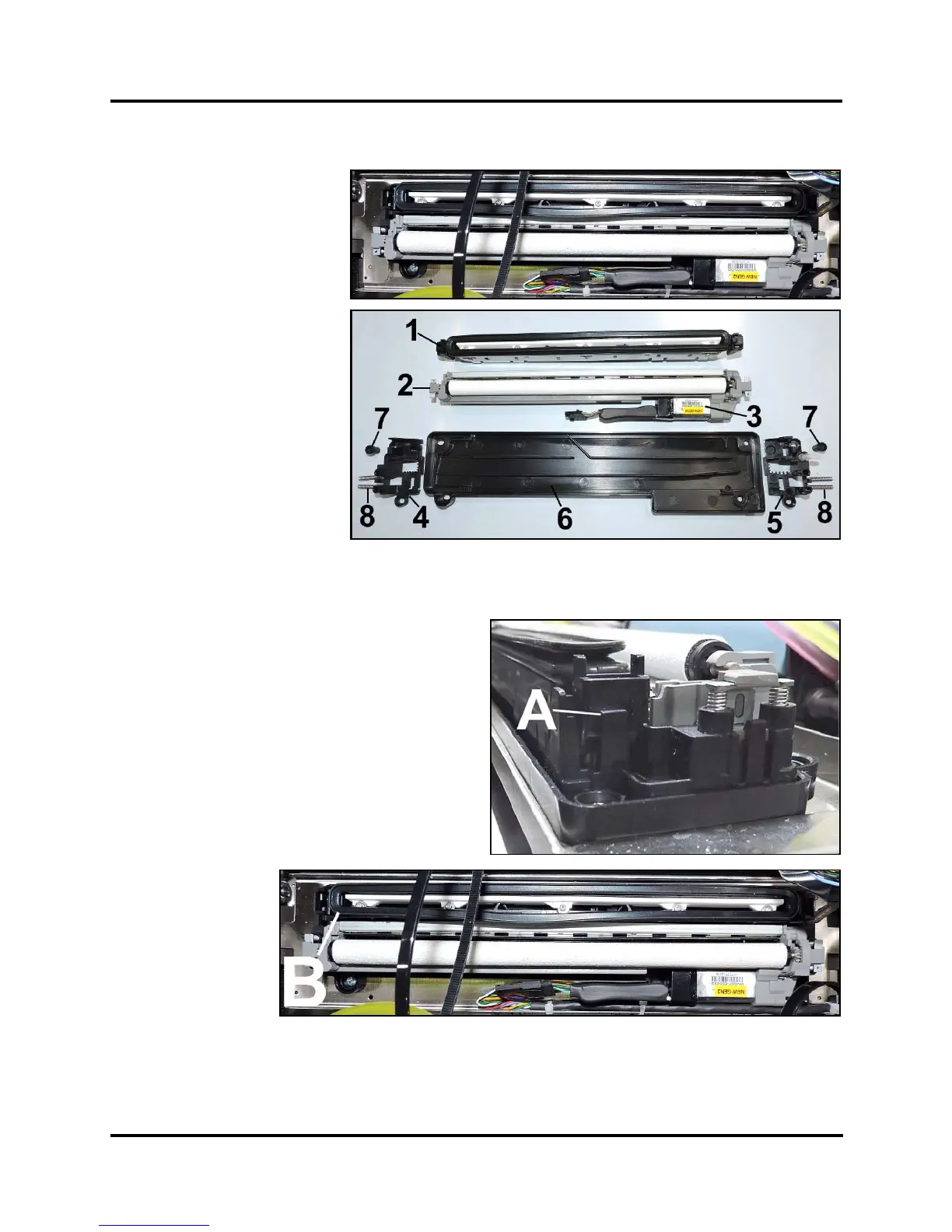

Service Station Components
1. Capping Station
2. Wiper Roller Assembly
3. Wiper Motor Assembly
4. Operator Side Bracket
5. Non-Operator Side
Bracket
6. Service Station Base
7. Capping Station Inserts (2)
8. Wiper Roller Assembly
Springs (4)
Remove Capping Station
1. Using the Touchscreen, select “Menu,” and tap
“Maintenance” from the drop-down menu. Tap
“Inspect Sled”. The Service Station moves out
from under the Printhead Assembly.
2. Open the Top Cover.
3. Gently release the tabs [A] (one located at each
end) securing the Assembly to the Service
Station Base.
4. Lift the Capping Station [B] out of the Printer.
NOTE: Be careful, watch for dripping ink.
Do not lose the (2) inserts the Capping Station
rests on (located behind the release tabs).
5. Install in
reverse order.
