SECTION 5
DISASSEMBLY AND ASSEMBLY
112
Remove Service Station Home Sensor
1. Remove the Non-Operator Side Cover.
2. Open the Top Cover.

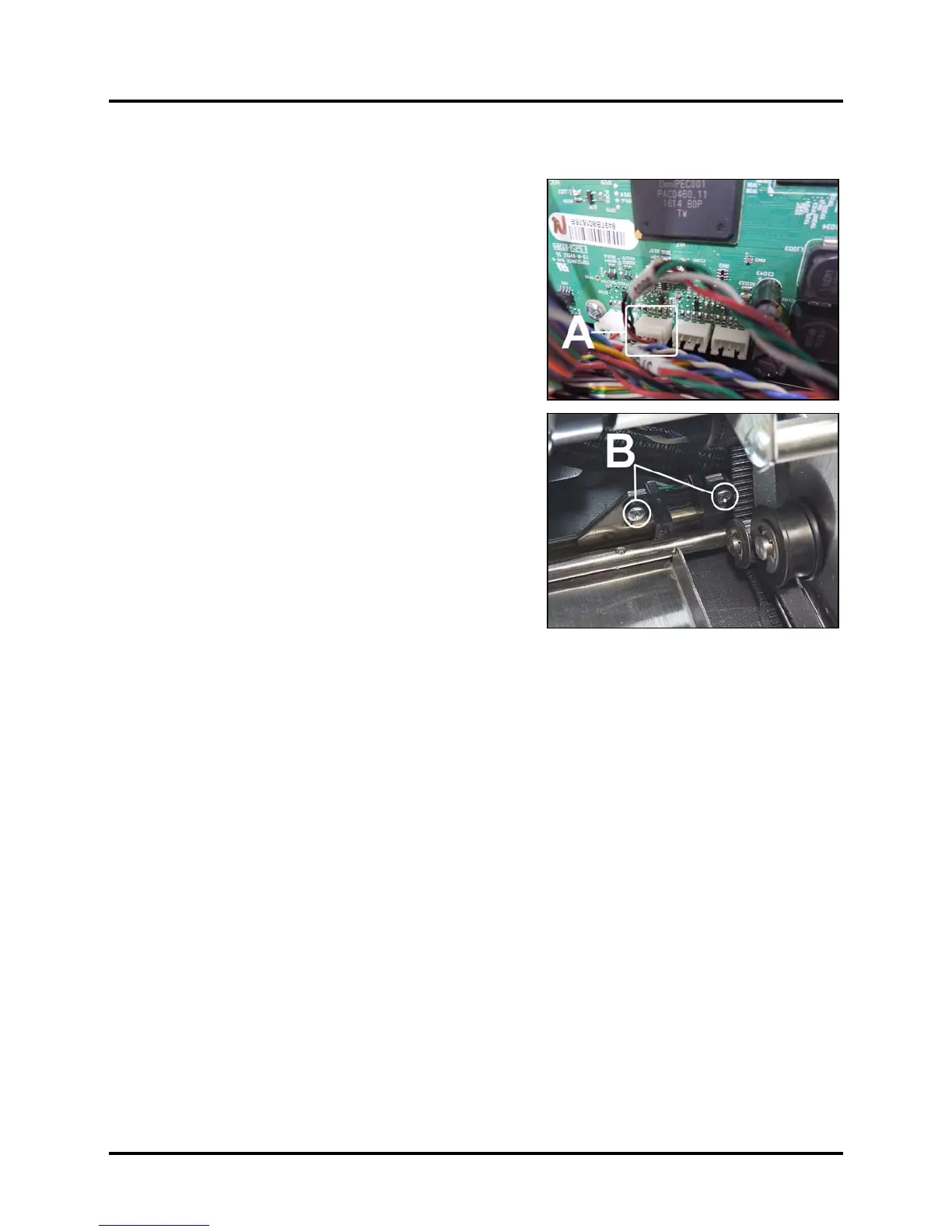

3. Disconnect wire harness J553 [A] from the MPCA
terminal. You may have to cut wire ties to release the wire
harness from the wiring bundle.
4. Remove (2) screws [B] securing the Sensor to the Top
Assembly. Carefully remove the Sensor Assembly.
Take care not to snag the wiring harness.
5. Install in reverse order. NOTE: Make sure to replace
any wire ties removed in Step 3.
To Next Page
