SECTION 5
DISASSEMBLY AND ASSEMBLY
47

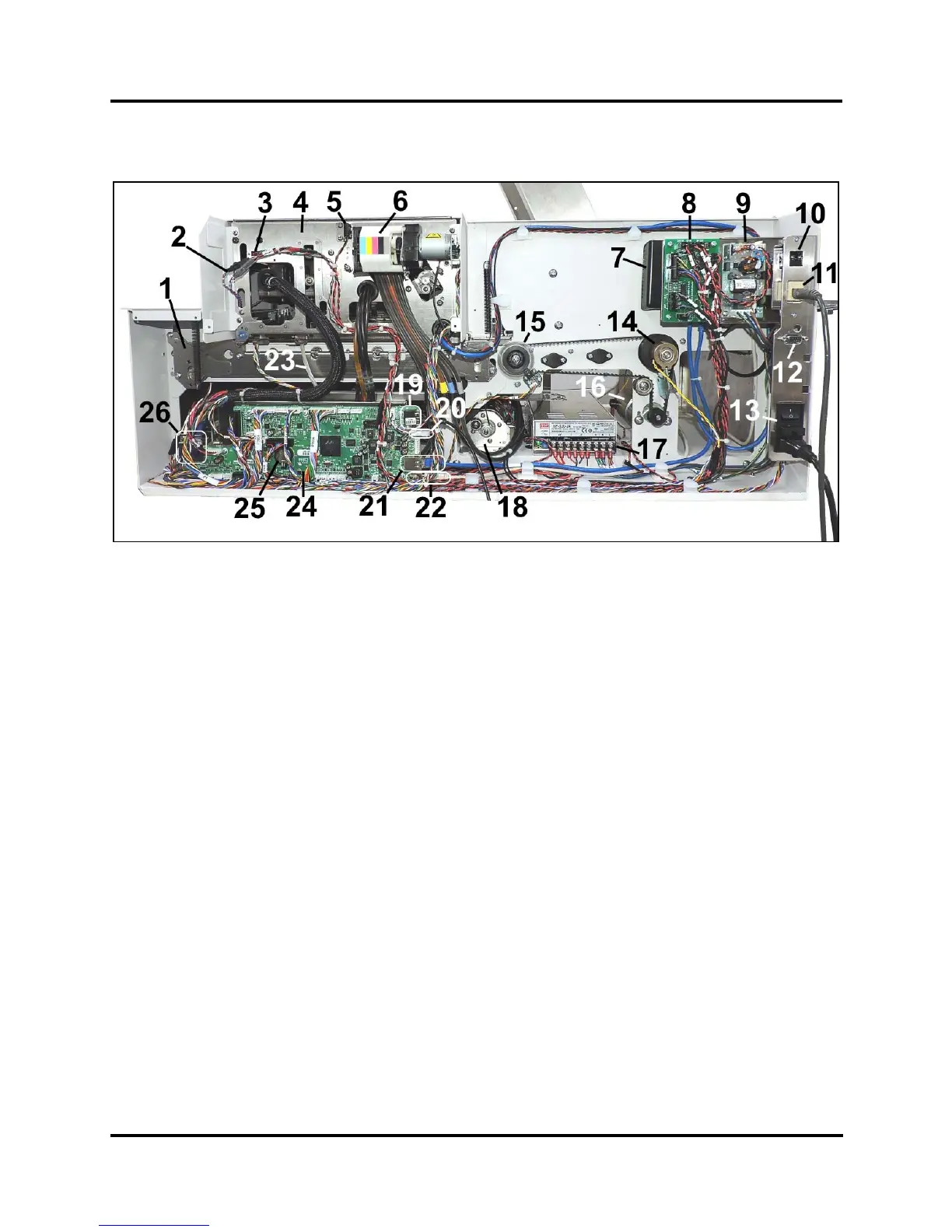

Major Components under Non-Operator Side Covers
1. Media Thickness Lift Assembly 14. Clutch Assembly
2. Exit Fan Wire Harness 15. Feeder Encoder Assembly
3. Printhead Lifter Sensor 16. Feed Motor
4. Top Assembly 17. 24V DC Power Supply
5. Top Cover Switch 18. Media Transport Motor
6. Main Peristaltic Pump 19. Service Ports
7. Fast Internet Switch (behind Interface Board) 20. 24 VDC Power Inlet
8. Interface PCB 21. Ethernet Cable
9. 5V DC Power Supply 22. USB Cable
10. Ethernet Port 23. Ink Waste Hose
11. USB Port 24. MPCA
12. DB9 External Device Port 25. Internal Memory Battery (CR 2032)
13. Power Switch, Receptacle, Fuse 26. Data Cables
