SECTION 5
DISASSEMBLY AND ASSEMBLY
76

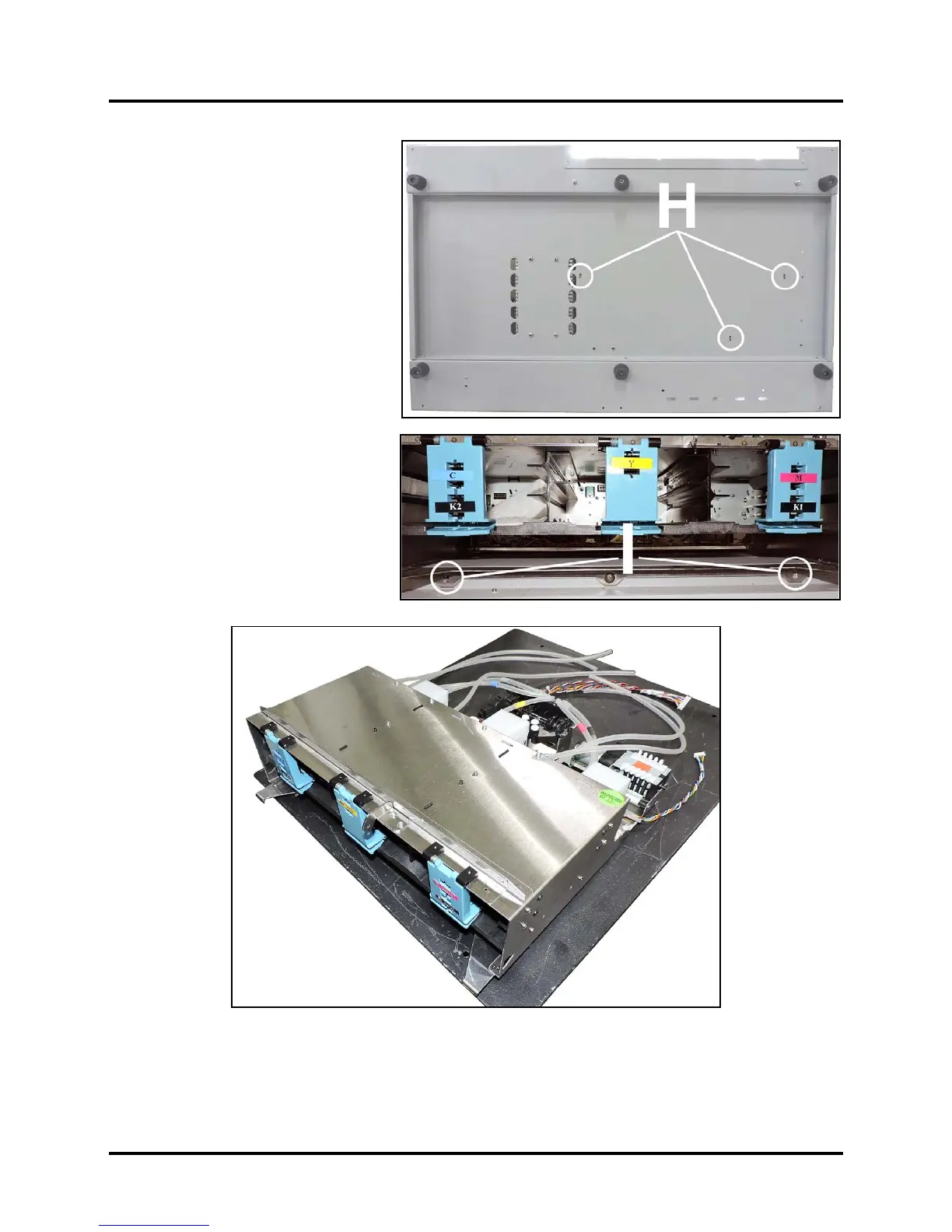

9. Remove (3) mounting screws and
washers securing the Ink Station to
the Printer Base [H].
10. Remove (2) screws securing the
Ink Station to the Operator Side
Frame [I].
11. Carefully slide the Ink Station out
of the Printer.
NOTE: Make sure the wire
harnesses and ink hoses do not
snag on anything.
12. Reassemble in reverse order.
Wipe the Ink Station area in the
Printer to clean up any ink drips
that may have occurred.
NOTE: Be sure to carefully
route and reconnect the wire
harnesses and to secure the
P2005 wire harness bundle to
the wire clamp inside the
Printer. Make sure the ink hoses
are connected to the correct
color coded positions.
DO NOT MIX INK HOSES!
To Next Page
