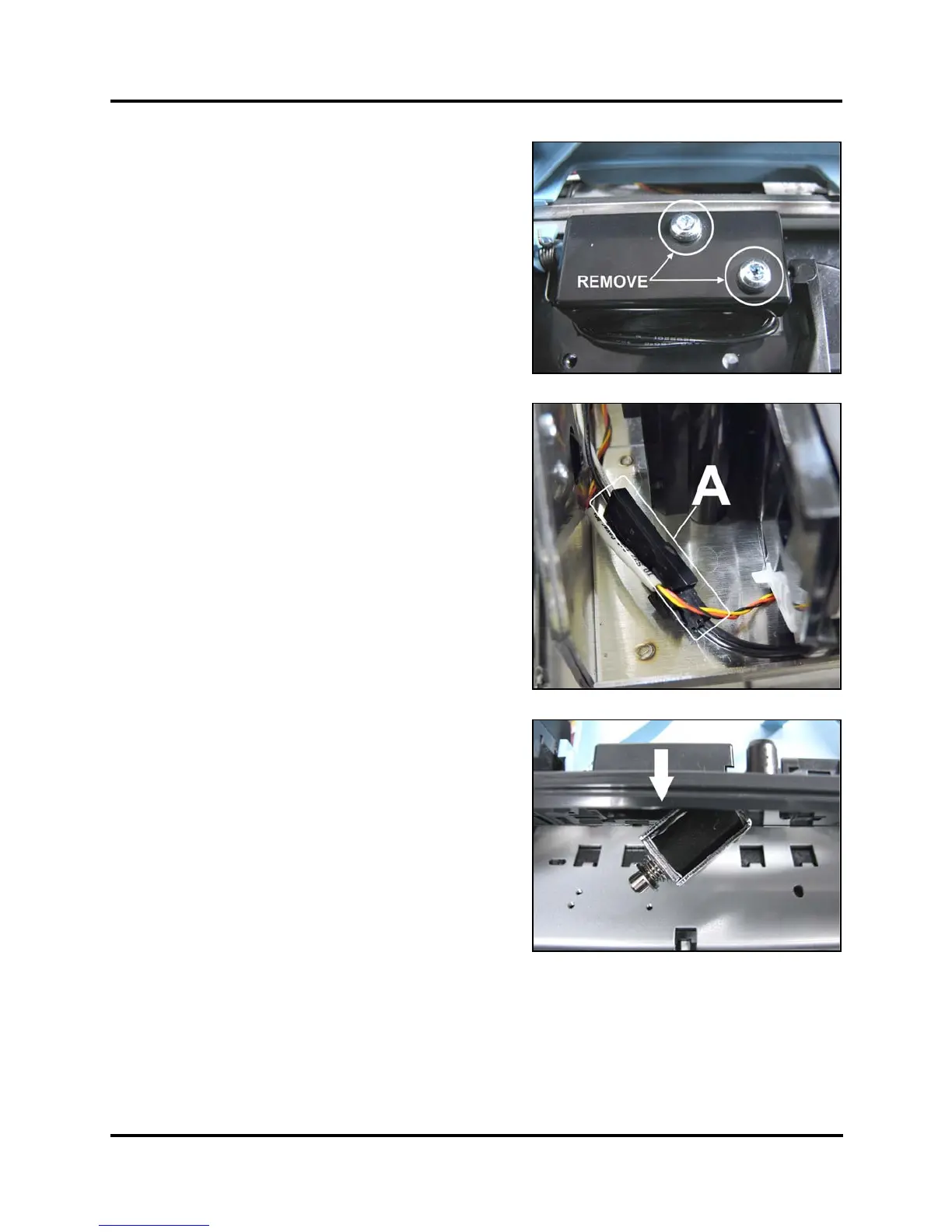

6. Remove two (2) screws securing Solenoid
to Base Assembly.
7. Cut two cable ties securing Solenoid Wire Harness to
the Printhead Lift Base. Disconnect Solenoid connector
[A] from wiring harness.
8. Carefully lift Base Assembly just enough to remove
Solenoid assembly from under Base Assembly.
9. Install new Solenoid.
Reassemble in reverse order.
