SECTION 1
INTRODUCTION
6

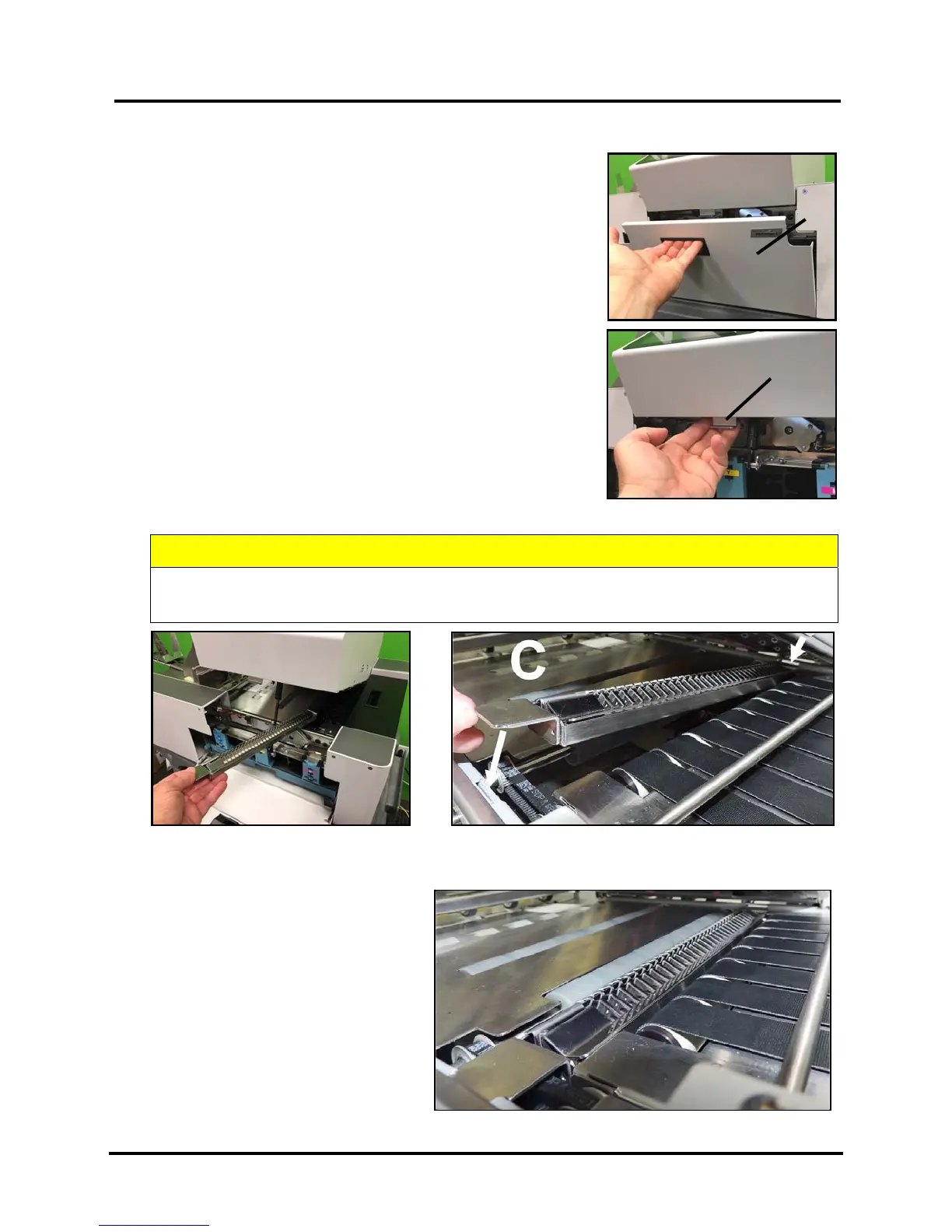

Install Print Platen & Drip Tray Assembly into Printer:
1. Open Ink Tank Door [A].
2. Release, pull out on, Clamshell Latch [B],
to release and raise Clamshell.
3. Insert tabs, at each end of Drip Tray, into frame slots [C] as shown below.
Tip: Larger tab, on Drip Tray, faces towards operator side of printer.
4. Verity that Print Platen and Drip Tray Assembly are sitting level in the printer, as shown below.
Tip: If front or back of Drip Tray is not
sitting level; check to be sure both tabs
are in slots [C], shown above.
If front of Drip Tray will not drop into
front slot [C]; you may have Drip Tray
in backwards. Remove and rotate 180
degrees so the larger tab is at operator
side of printer.
5. Carefully Close Clamshell.
6. Close Ink Tank Door.
CAUTION
It is very important that you get the Drip Tray tabs into frame slots [C] or damage to the system
may occur when you close Clamshell and or start using printer.
A
B
