18.2.12. Replacement of components of electromagnetic valve

(1) Required device

Phillips screwdriver

(2) Dislodge electromagnetic valve from frame.

(3) Remove screws from bottom of the valve to disassemble and replace body and plunger

ASSY

(plunger, diaphragm and seat) with new ones biyearly.

18-16

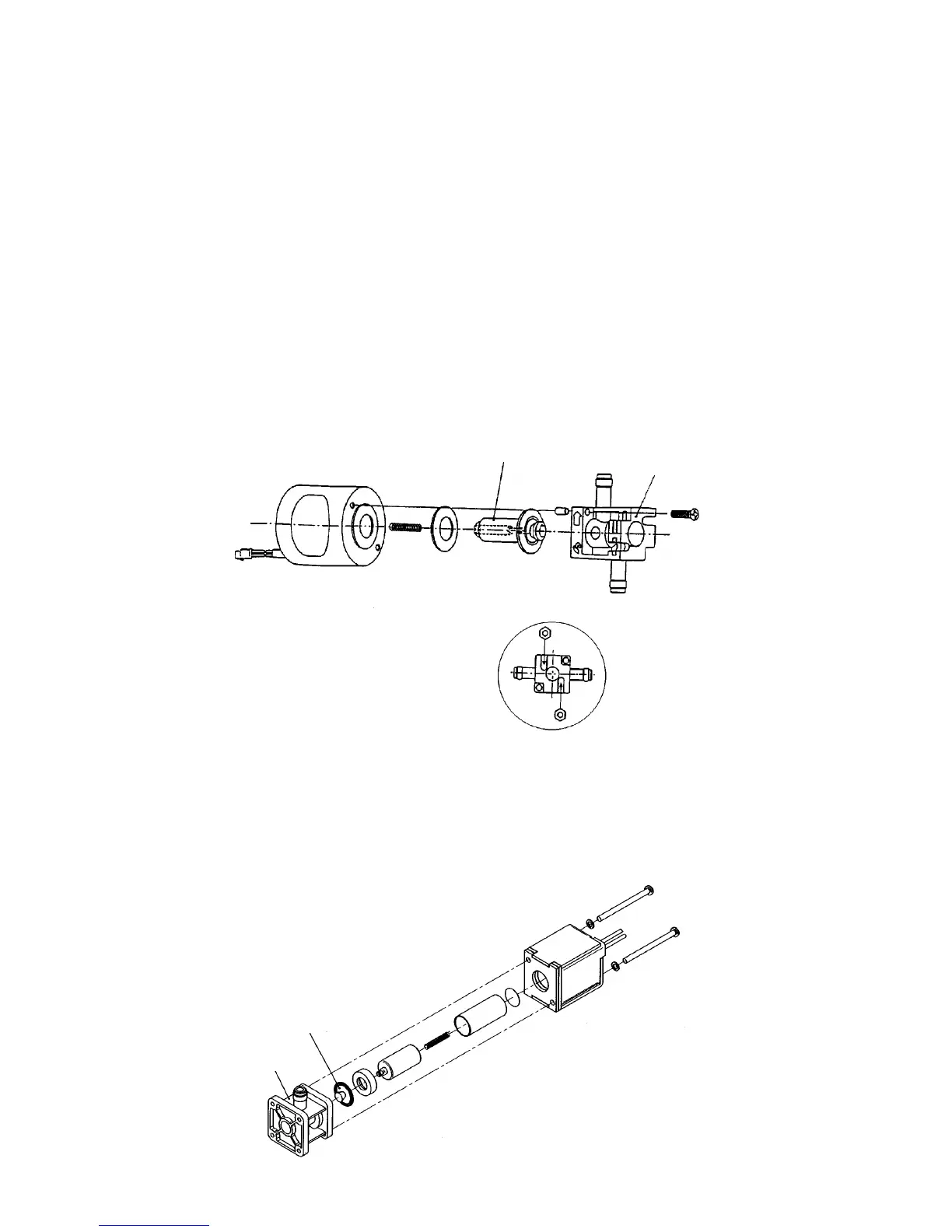

Fig. 18-16 Two way electromagnetic valve（V2/V3/V12/V13/V14 (V15/V17) ）

Body

Diaphragm

Body

Plunger

Assy
