Nipro SURDIAL - Connector for each Concentrate Container

6-7
6.3.3. Connector for each concentrate container

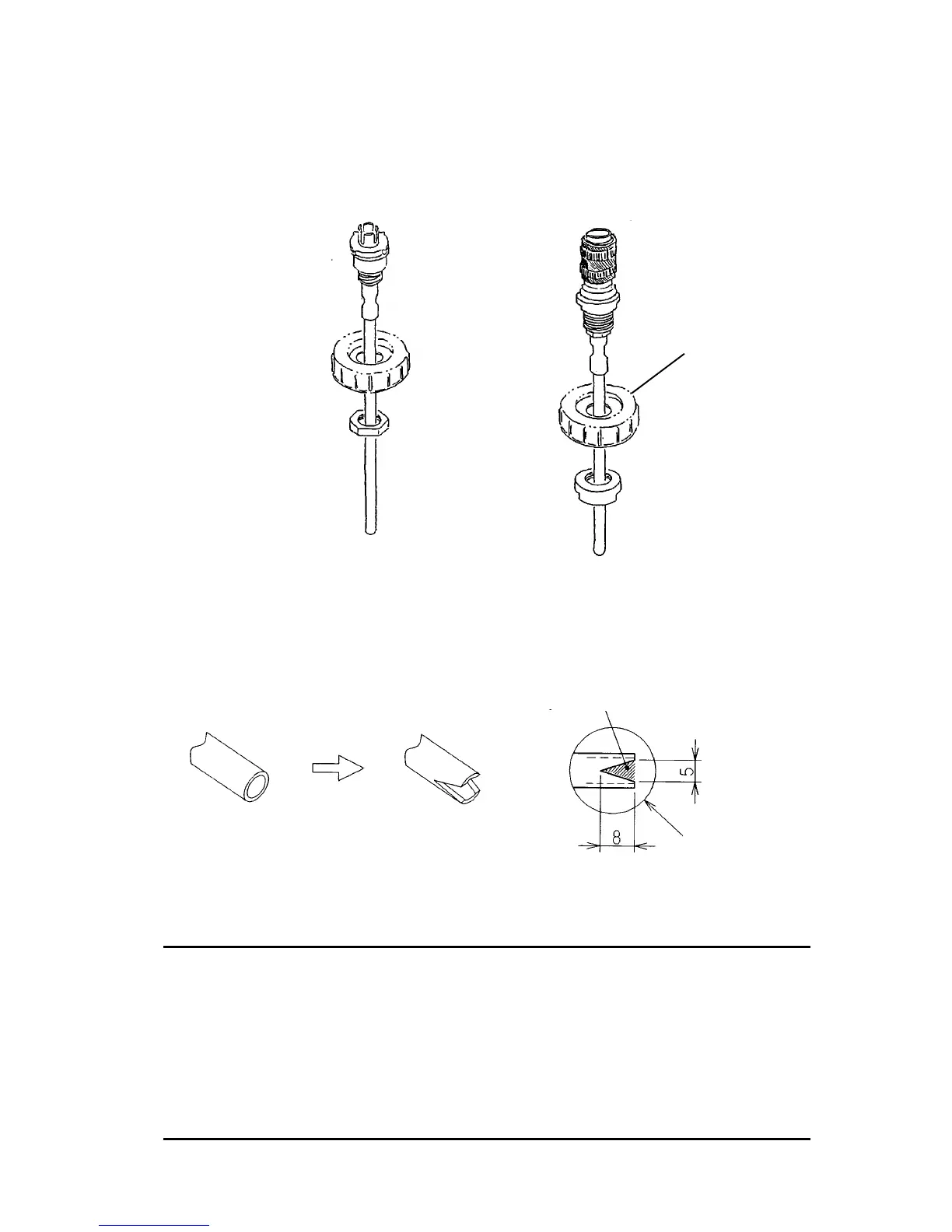

Drill concentrate container cap to prepare hole as shown in the below Fig. 6-3.
Then cut off suction port by a depth suitable for the container to make notch as shown in the
below Fig. 6-4.

For disinfectant concentrate  For A or B concentrate
container container
Fig. 6-3 Connectors for concentrate containers
Fig. 6-4 Preparation of suction port
NOTE
 If the container is provided with 2 ports closed with respective caps, engage the
connector with one of the ports and loosen the cap of the other port to allow air
introduction.
 If the container is provided with only one port closed by one cap, engage the connector
with the port and loosen the cap to allow air introduction.
 The caps (L and S) are not provided with the machine. Use L or S cap of the containers.
 Prepare 3 or 4 connectors for containers receiving A, B and disinfectant concentrates;
and for container receiving acetic acid concentrate as option.
Concentrate container cap
(Prepare hole of φ18.5mm)
Cut off
Suction port
