(16) Attach Packing Ｂ⑳ and mounting plate⑦ to bracket⑧ using small screws. Fixing
torque is
0.59N･m(6.0kgf･cm).
(17) Attach pump head⑰ using small screws. Fixing torque is 0.78N･m(8.0kgf･cm).

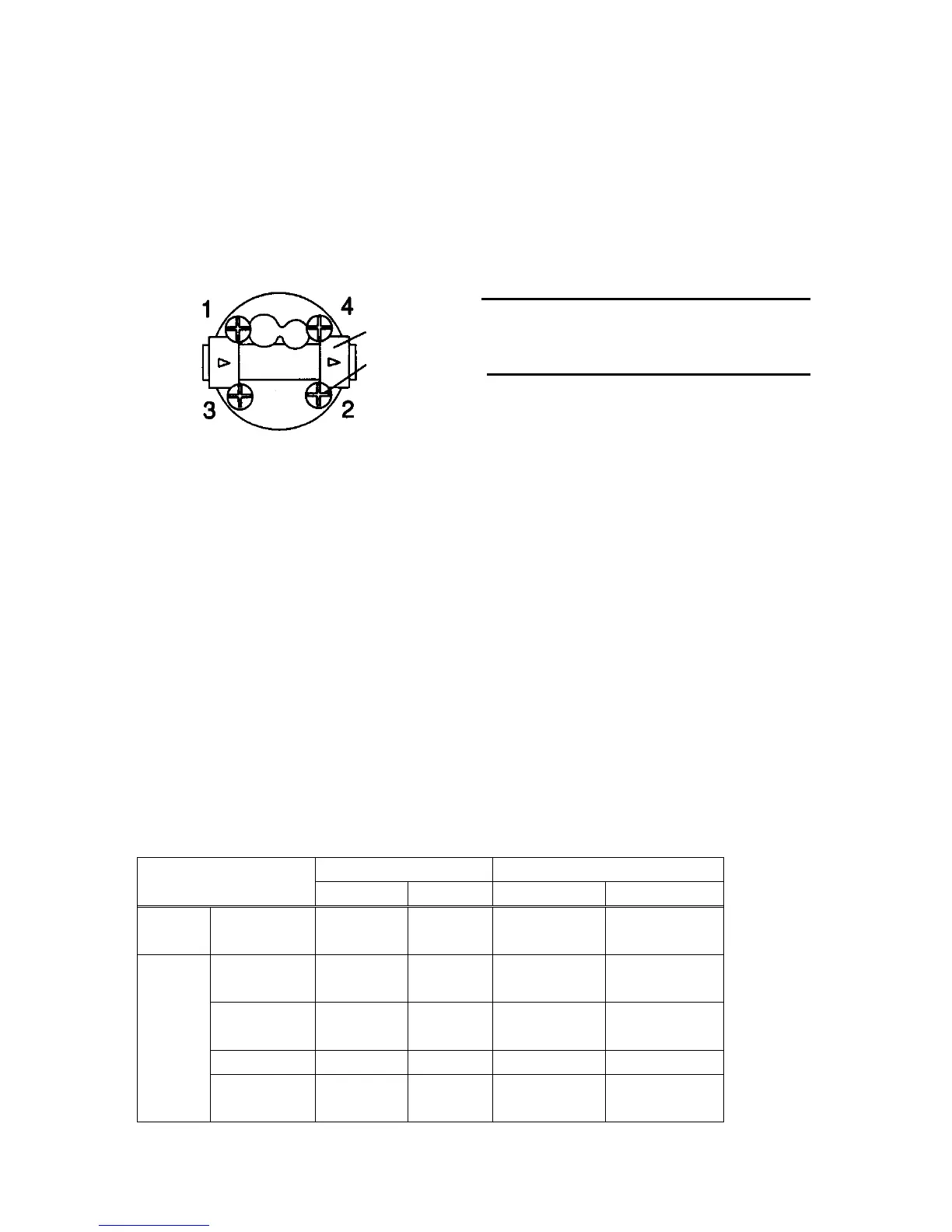

Fixing order is as shown in Fig. 18-24.
CAUTION
● Screw part of front bearing may broke if
irregular torque or only one side tightens
screw.
Fixing order
Small screw
Pump head
Fig. 18-24
(18) Attach pump part to motor① using small screws.
• Check and calibrate after changing Spear kit.
1) Priming water flow speed: Please see Service manual chapter 10.10. “Adjustment of
priming flow
rate.”
2) Dialysate flow speed: Adjust NV1.
3) Bypass flow speed: Please see Service manual chapter 10.11. “Adjustment of bypass flow
rate.”
4) Deaeration pressure: Please check it should be less than –600 mmHg at out of BT1. If it is
not enough, please check replacement procedure (11) had done correctly or not.
NOTE: following figure is Hot rinse option for SURDIAL
There is no special calibration for Hot rinse option.
Fig. Different between the standard and option parts.
Standard HEAT RINSE OPTION
Component
Material color Material color
AS1 Float PP White PP +
Stainless
White with
metallic cap
*Front
bearing
PPS Gray PPS Gray
*Rear
bearing
PPS Gray PPS Gray
Drive Gear PPS Brown PEEK Black
P1/P2
Slave
Gear
PPS Brown PEEK Black
*Note: Front/ Rear bearing are same parts as standard and option.
18-23
