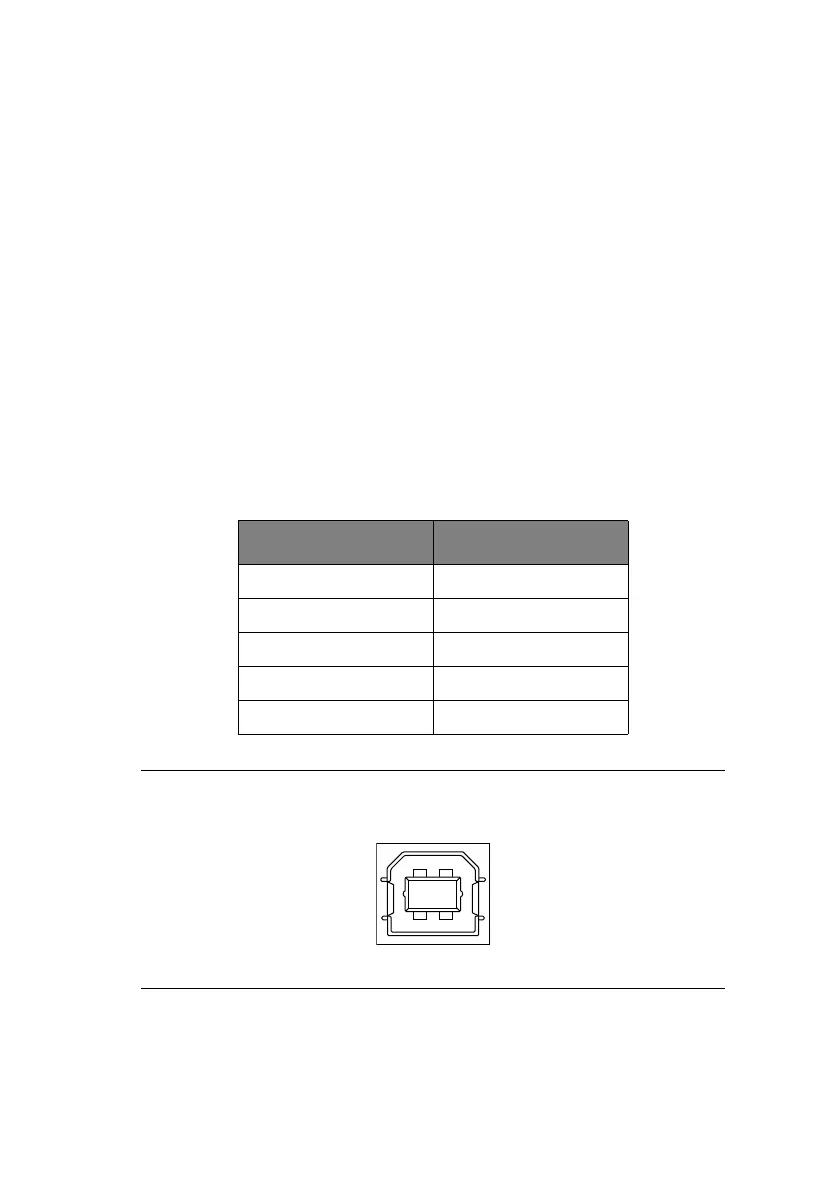

Technical Reference Guide – Interface specifications > 22
C
ONNECTORS
Printer Side:
“B” Receptacle (Upstream Input to the USB Device)
Cable Side:
Series “B” Plug
C
ABLE
a:
Max. 5 m (Cable must be shielded and meet the USB Spec
Rev 2.0 for normal operation.)
The cable is not supplied with the printer.
USB
INTERFACE
SIGNALS
NOTE
CONTACT NUMBER SIGNAL NAME
1 Vbus (Not Used)
2 D-
3 D+
4 GND
Shell Shield
Connector pin arrangement for above:
2
34
1
