Technical Reference Guide – Interface specifications > 30
I
NTERFACE
TIMING
CHARTS

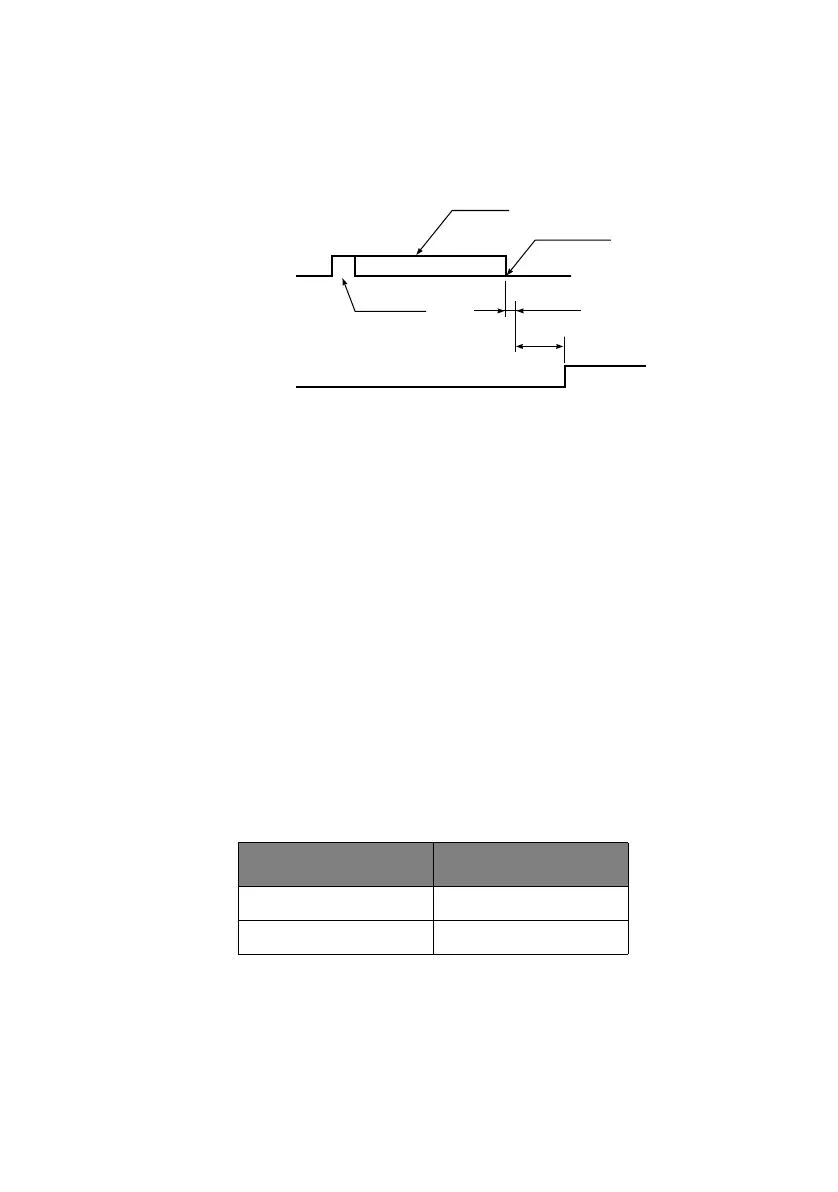

SSD signal timing chart
R
ECEIVING
MARGIN
Receiving margin is more than 37% at any baud rate.
D
ESCRIPTION
OF
COMMUNICATION
PROCEDURES
Three types of protocol can be selected by menu communication
procedures:
> DTR
> X-ON/X-OFF
> DTR and X-ON/X-OFF
I
NTERFACE
CONTROL
CODE
The following function codes are used in the high-speed serial
interface:
COMMAND CODE
DC1 (17)D (11)H
DC3 (19)D (13)H
MAX 5 ms
HIGH
LOW
BUSY
READY
RD
SSD
Data
Stop bit
0.5 bitStart bit
