Technical Reference Guide – Appendix D – Media specifications > 240
5. For paper with binding holes, see “Binding holes” on
page 243.
6. Printing accuracy is assured from 6.35 mm (1/4 in)
(inclusive) from each edge.
Multipart forms
B5, B4 and A4 are the standard paper sizes.
NOTE
1. Paper longer than A4 paper (297 mm) exhibits reduced
paper loading performance.

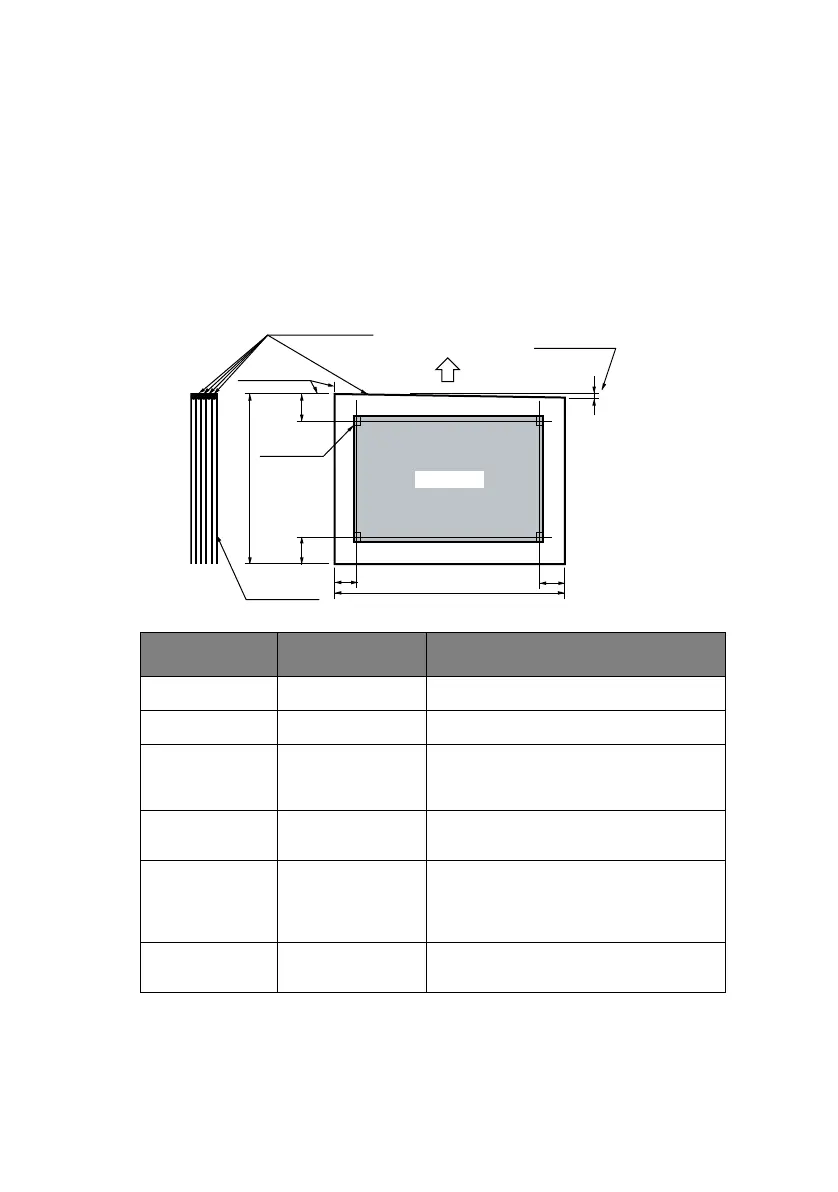

A
D
L
W
C
B
1st character
(10CPI)
Printing area
Strong glue (1mm)
Reference lines
[All dimensions in mm]
Printing surface
From vertical line
to reference line
± 0.2 mm or less
Paper insertion direction
DIMENSION NAME SPECIFICATION VALUE
W Paper width 100 – 257 mm (3.9 – 10 in)
L Paper length 100 – 257 mm (3.9 – 10 in) (Note 1)
A Printing start
position
Variable by menu setting (Note 6).
2.12 mm (1/12 in) – 27.52 mm (13/12
in). Specify by 1/12 in.
B Lower end of
printing area
6.35 mm (1/4 in)
C Left end of
printing area
6.35 – 28.6 mm (1/4 – 9/8 in) for
paper width within 279.4 mm (11 in)
19.05 – 28.6 mm (3/4 – 9/8 in) for
paper width 304.8 mm (12 in)
D Right end of
printing area
6.35 mm (1/4 in). 106th character
within specifications for dimension C.
