Oki ML1120 Technical Reference Guide

Technical Reference Guide – Interface specifications > 27

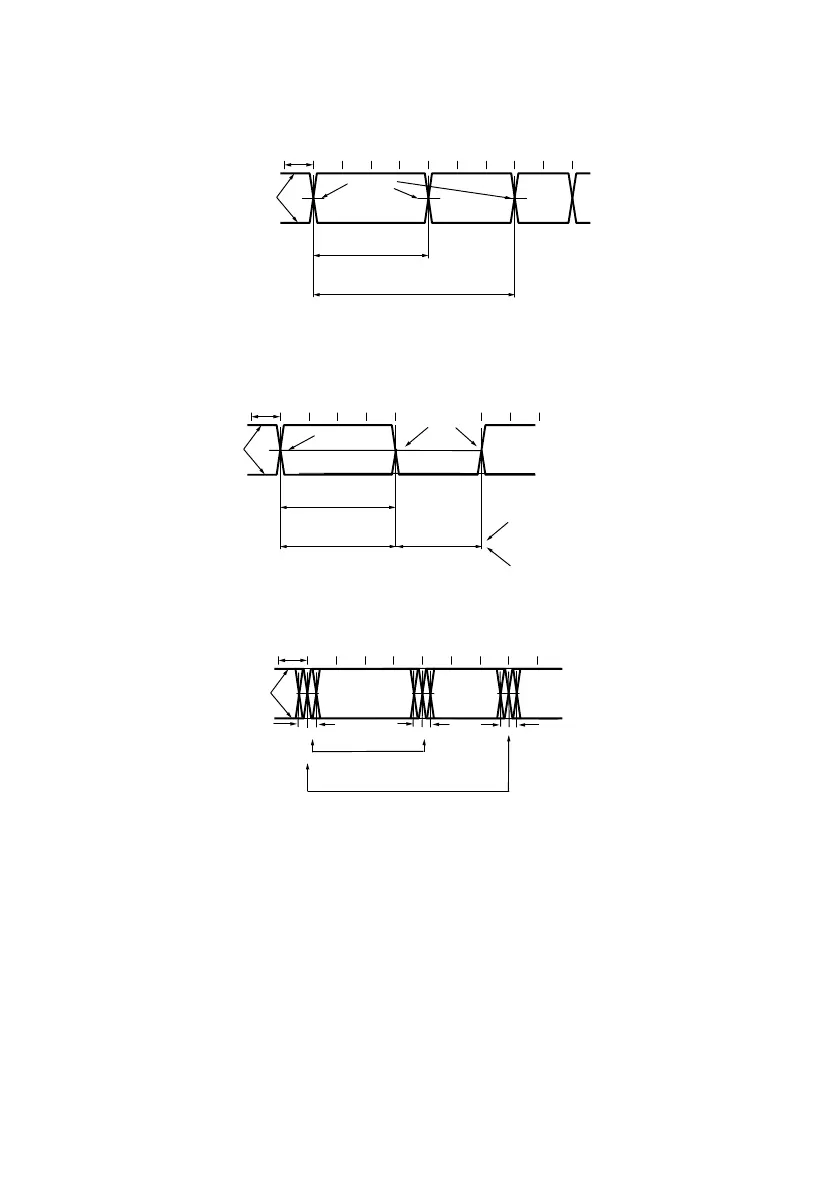

Differential data jitter
Differential-to-EOP transition skew and EOP width
Receiver jitter tolerance
TPERIOD
Differential
Data Lines
(VCRS)
Consecutive
Transitions
N
*
TPERIOD + TxDJ1
Crossover
Points
Paired
Transitions
N
*
TPERIOD + TxDJ2
TPERIOD = 12Mbps(–0.25%)
TxDJ1 = Min-3.5ns~Max3.5ns
TxDJ2 = Min-4ns~Max4ns
TPERIOD
Differential
Data Lines
Diff. Data-to-
SE0 Skew
N
*
TPERIOD + TxDEOP
Crossover
Point
Source EOP Width: TFEOPT (160ns~175ns)
Crossover
Extended
TxDEOP = -2ns~5ns
Receiver EOP Width: TFEOPT (80ns)
TPERIOD
Differential
Data Lines
Consecutive
Transitions
N
*
TPERIOD + TxDJ1
Paired
Transitions
N
*
TPERIOD + TxJR2
TxJR1 = Min-18.5ns~Max18.5ns
TxJR2 = Min-9ns~Max9ns
TxJR
TxJR1
TxJR1
}
}
}
