Winding Resistance
Never open the measuring circuit while current flows. Dangerous voltage may
occur! Check whether the red warning light “I” and the discharge LED are off
before disconnecting the device under test. Before disconnecting from
CPC 100, connect the device under test to protective earth.

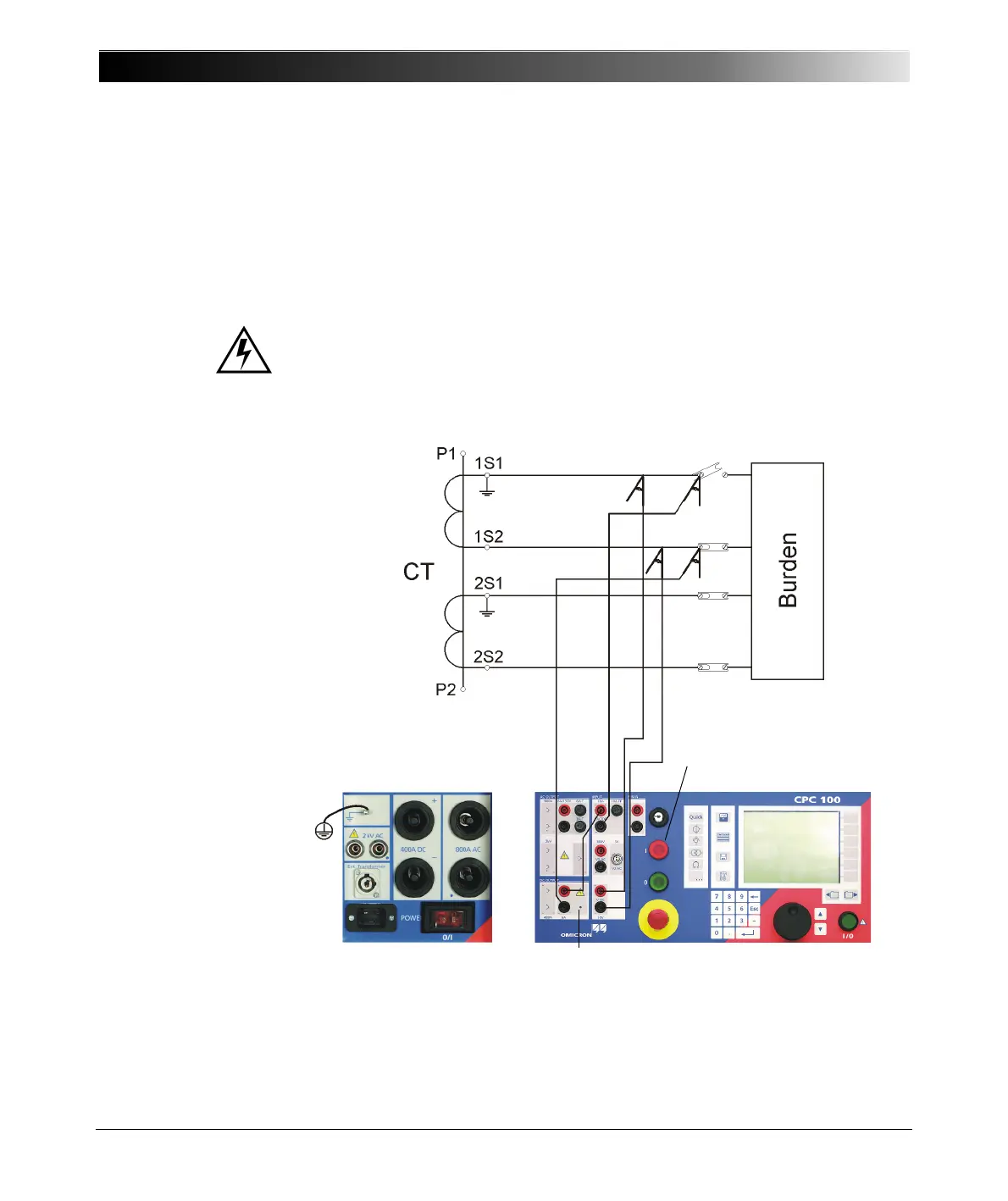

Figure 13:
Setup for a winding
resistance test
Note: Some test cards are available in more than one test mode. For
example, the test card RWinding can be selected in CT, Resistance
and Transformer.
This is solely related to usability. With regard to functionality, the test
card RWinding is identical in all test modes.
Off before disconnecting device
under test
Off before disconnecting device under test
