Omicron CPC 100 Reference Manual

CPC 100 V1.41
17 - 4
Current Booster CP CB2

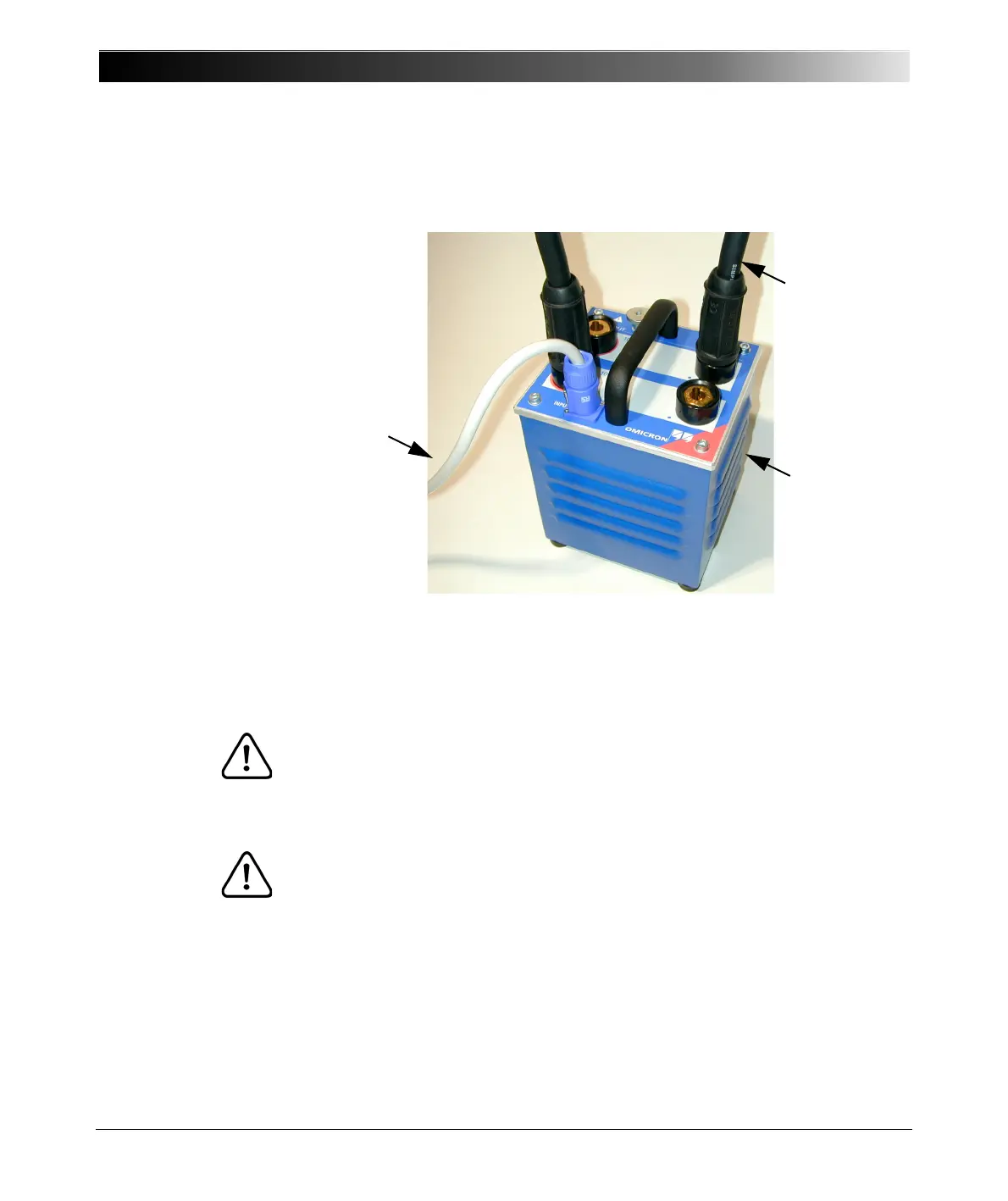

Figure 1:
Current booster CPCB2
CPCB2 is equipped with an over-temperature protection. In case CPCB2
develops an internal temperature that is too high, it shuts off automatically.
There is no according on-screen message shown on the CPC 100 monitor.
If such an automatic shut-off occurs, let CPCB2 cool down for about ½ hour.
Note 1: During operation, the current booster’s housing as well as the high-
current cables (95mm²) and their clamps can develop a rather high
temperature. To prevent burns, use gloves when touching the housing
or the cables while in operation or shortly after .
Note 2: The connector "Ext. Booster" is always galvanically connected to
mains, regardless whether or not an external booster is selected on
the software tab Options | Device Setup, the green warning light (0)
is on, the outputs are turned off or the Emergency Stop button is
pressed.
Handle with extreme caution!
High-current
cable with a plug
on one end and a
clamp on the
other end
Connection cable
CPCB2
⇔ CPC 100
current booster
CPCB2
