Omicron CPC 100 Reference Manual

CPC 100 V1.41
2 - 6
Functional Components in Detail
AC OUTPUT
Programmable AC current and voltage outputs.

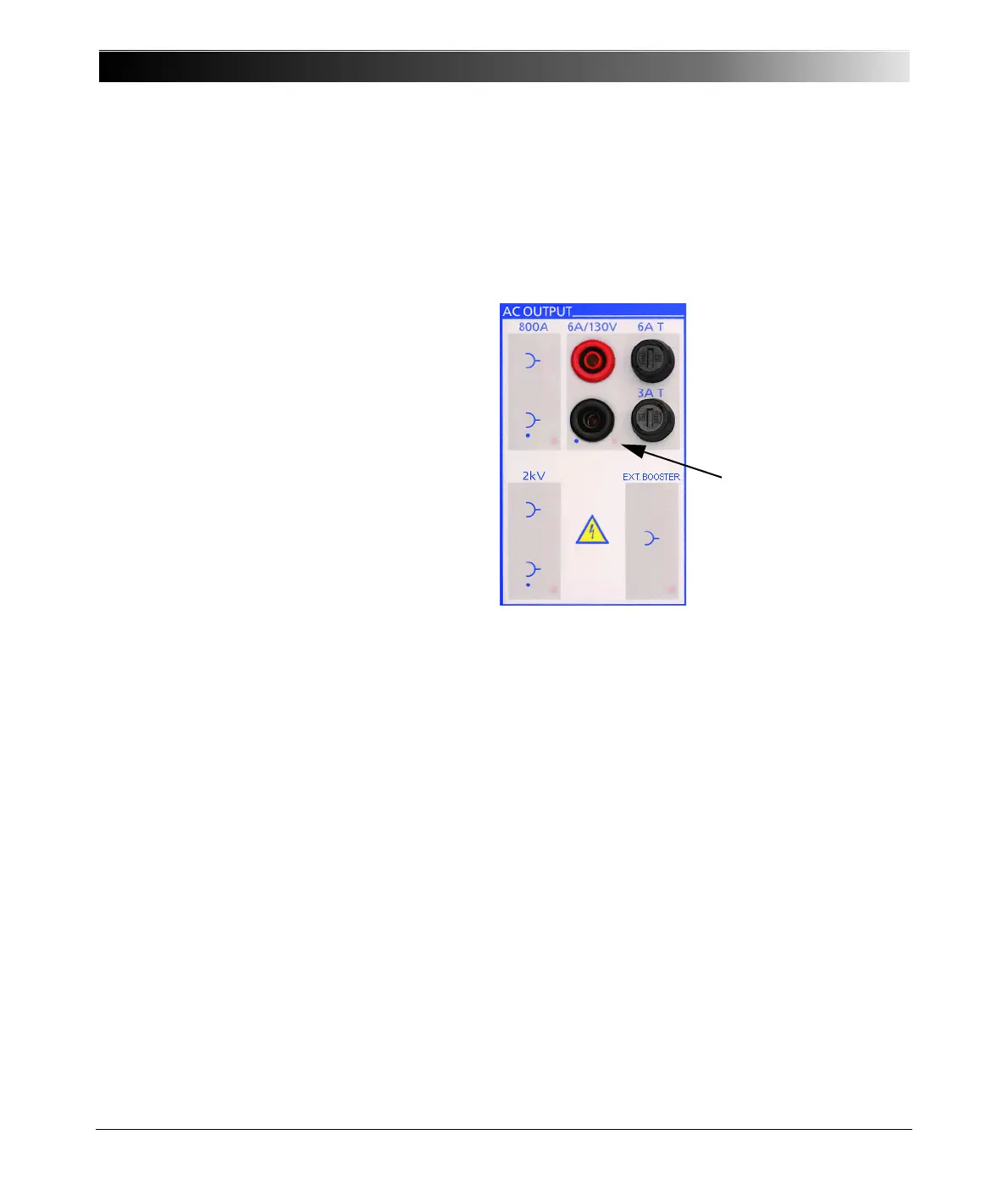

Figure 5:
Functional group
AC OUTPUT
1. The front panel output 6A/130V operates as either a 0...6A AC or a
0...130V AC output. The output range and the actual values are set by the
software.
In current mode 0...6A, the maximum output voltage is 65V (390VA).
In voltage mode 0...130V, the maximum output current is 3A (390VA).
The 6.3A T (6.3 Amps slow-acting wire fuse 5x20mm) protects both the
AC OUTPUT in 6A current mode and the DC OUTPUT.
The 3.15A T (3.15 Amps slow-acting wire fuse 5x20mm) protects the
AC OUTPUT in 130V voltage mode and in the 3A AC current mode.
2. The 800A output sockets are situated at the left-hand side of CPC 100 as
shown on page 2-3.
They provide an AC current of 0...800A at a voltage of 6.1...6.5V. The actual
output power (4880VA max.) is range-dependent. For details refer to ”High-
Current and High-Voltage Outputs” on page 16-5.
The current that flows from this output is measured internally by CPC 100,
and displayed on the respective test card.
3. The 2kV output sockets are situated at the left-hand side of CPC 100 as
shown on page 2-3.
Lit LED indicates that
output is selected.
