Omicron CPC 100 Reference Manual

Technical Data
16 - 25
3V V2 AC Input
Table 17:
3V V2AC input
technical data
3V V2AC input
Connection Odu connector GX1B0C-L020009-00A1
Measurement
ranges (autoranging)
0 ... 3V / 0 ... 300mV / 0 ... 30mV

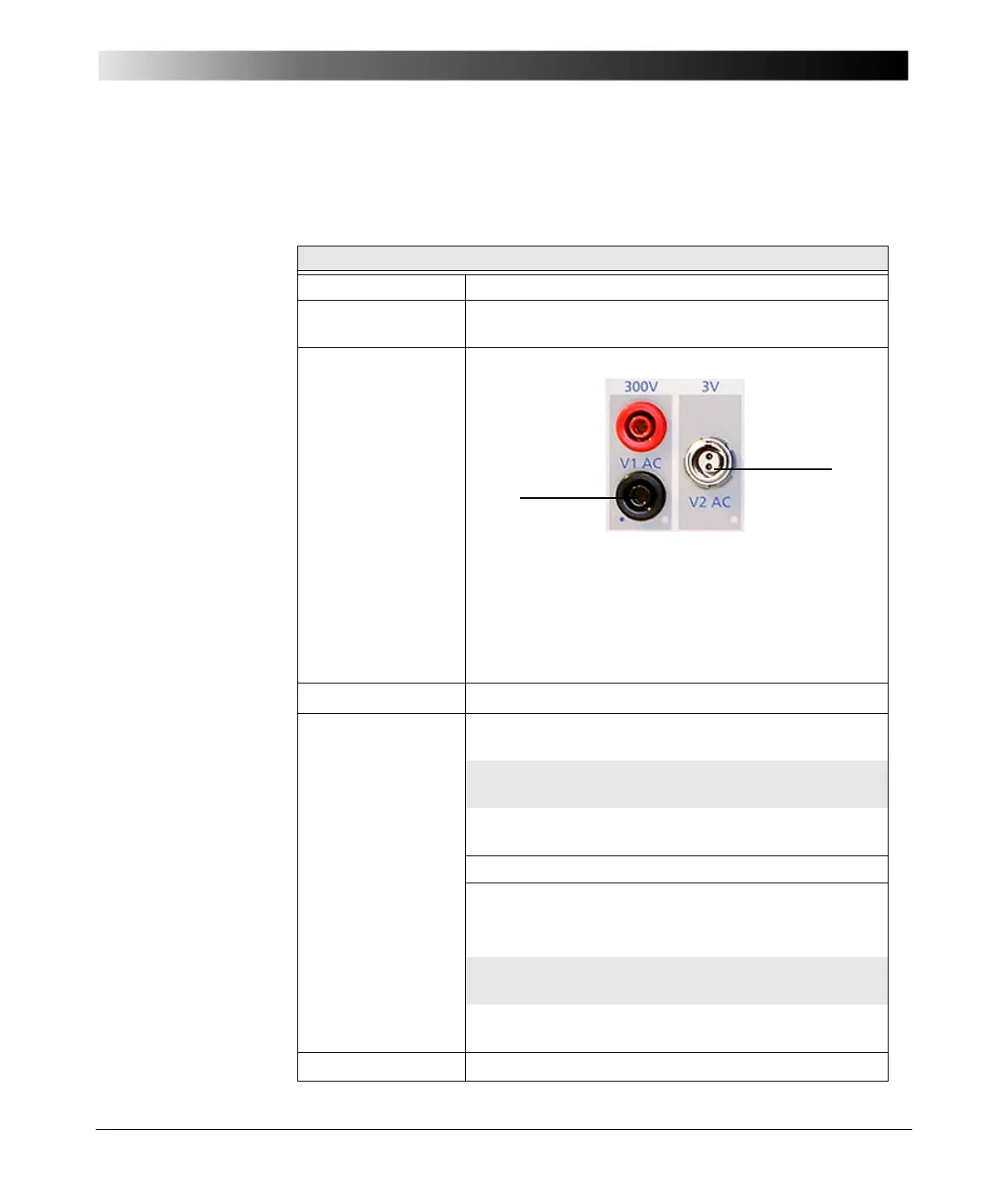

Insulation N is connected to N of the V1AC input (black socket).
Apart from this, the input is insulated against all other
inputs and outputs. Voltage with reference to earth
must not exceed 300V
rms
and 420V
peak
on either input
socket.
Reinforced insulation against mains power supply, all
interfaces and other safety low-voltage circuits.
Maximum voltage 10V
rms
/ 15V
peak
Accuracy 3V: typ. error < ± 0.03% (rd) ± 0.08% (fs),
guaranteed < ± 0.05% (rd) ± 0.15% (fs)
300mV: typ. error < ± 0.08% (rd) ± 0.08% (fs),
guaranteed < ± 0.15 % (rd) ± 0.15% (fs)
30mV: typ. error < ± 0.1% (rd) ± 0.25% (fs),
guaranteed < ± 0.2% (rd) ± 0.5% (fs)
Possible crest factor: < 1.5
Phase tolerance at full scale
3V typ. error < ± 0.1°
guaranteed < ± 0.2°
300mV typ. error < ± 0.1°
guaranteed < ± 0.2°
30mV typ. error < ± 0.15°
guaranteed < ± 0.3°
Input resistance
10M
Ω
N
N
