Pressing the S
ETTINGS menu key opens the Settings page. The Settings
page allows setting the test cards individually. As a rule, do not use the Settings
page but the Device Setup tab in the Options view (see ”Device Setup” on
page 2-33) to set the test cards. For more information, see ”Settings Page” on
page 2-28.
Defining a Sequence of States
First set the sequence parameters, that is, the parameters that apply to all
states.

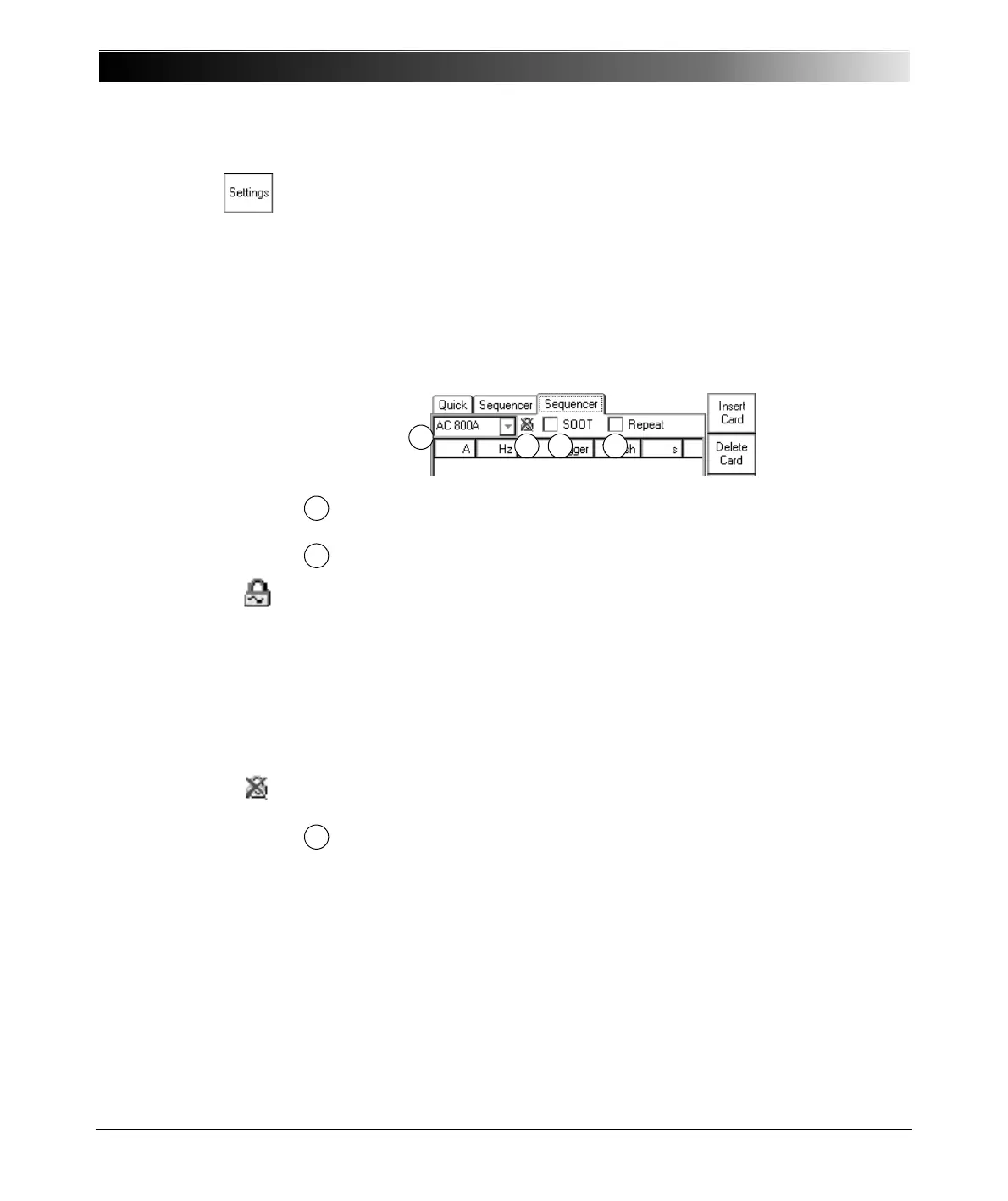

Figure 3:
Step 1 - Set the
sequence parameters
From the range combo box select the CPC 100 output range of your
choice.
Click the "Sync w/ V1AC" icon to enable or disable this feature.
Enabling "Sync w/ V1AC" synchronizes the CPC 100 output frequency
with the V1AC input frequency (we recommend a minimum input voltage
of 10V on V1 AC, possible range 48 - 62Hz). In that case, the phase
angle of the output is displayed in the states table rather than the
frequency. Set the phase angle value relative to the phase angle of the
V1 AC input signal (also refer to ”Sync w/ V1AC” on page 3-10).
After the start of a sequence the output needs up to 200ms to
synchronize with V1AC. Therefore, define a first state with an amplitude
other than zero.
If disabled, the states table displays the actual frequency value in Hz to
be edited.
"SOOT" (switch off on trigger) check box selected:
• The complete sequence is prematurely terminated if during the
execution of one of its states this state’s specified trigger condition (to
be set at "Trigger") occurs.
"SOOT" check box cleared:
• The sequence is not terminated by an occurring state trigger. Such a
trigger signal will only terminate this particular state, and continue
executing the next state.
