Omicron CPC 100 Reference Manual

Introduction
2 - 3
High-Voltage and High-Current Outputs
When CPC 100 outputs high current, observe the allowed duty cycles that may
apply to the selected AC output range. For more information please refer to
”CPC 100 Outputs” on page 16-5.

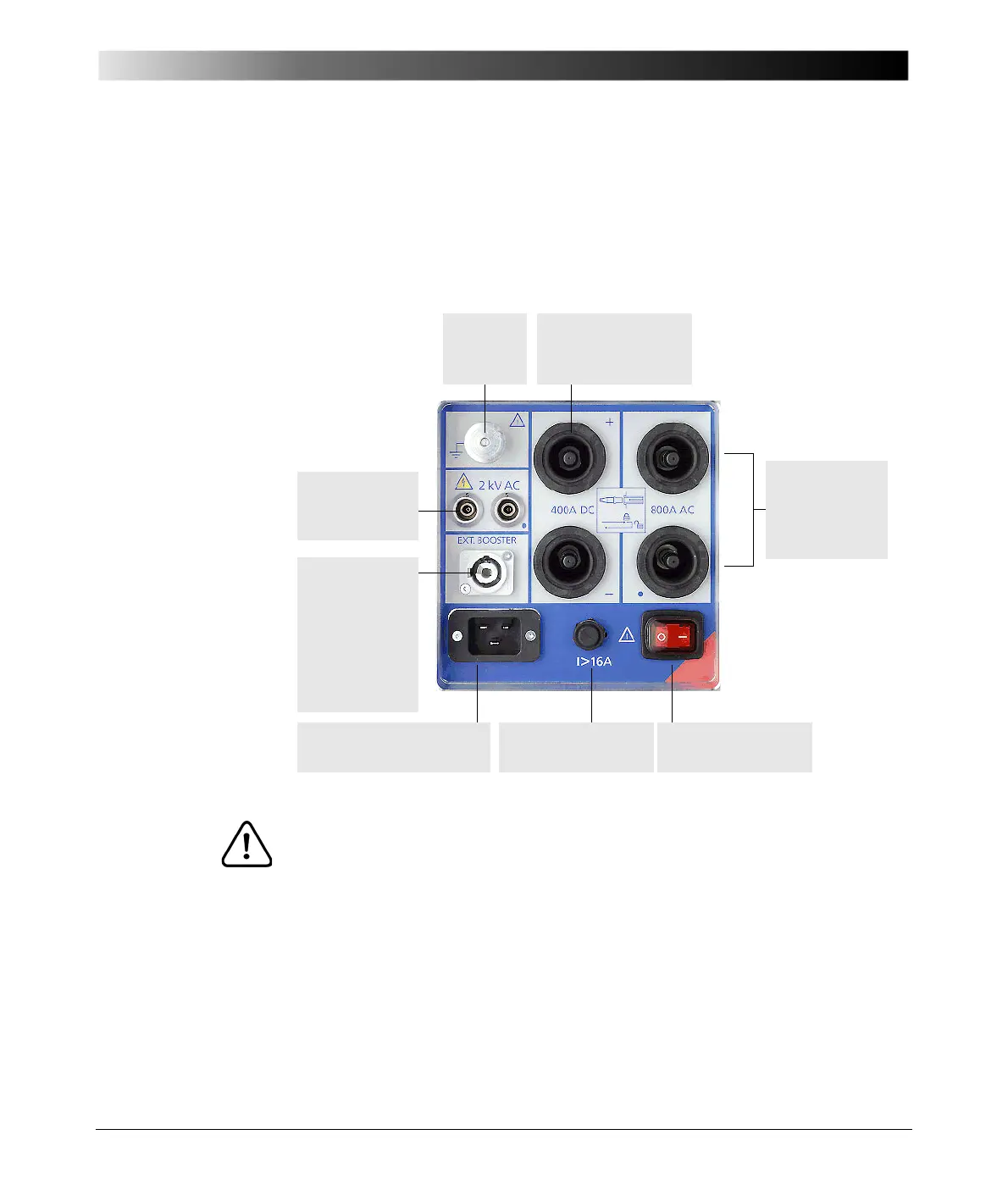

Figure 2:
High-voltage and high-
current outputs on left-
hand side of CPC 100
Caution: The connector "Ext. Booster" is always galvanically connected to
mains, regardless whether or not an external booster is selected on
the software tab Options | Device Setup, the green warning
warning light (0) is on, the outputs are turned off or the Emergency
Stop button is pressed.
Handle with extreme caution!
800A AC
(6.1-6.5V AC)
High AC current
output
POWER ON /OFF
switch
Mains power supply,
1 phase, 85V-264V AC
2kV AC
High-voltage
output
400A DC
(4-4.5V DC)
High DC current output
Ext. Booster
for example, for
the connection of
the CP CB2
current booster
option for output
currents of up to
2000A
Grounding
terminal
Automatic circuit
breaker I > 16A
