Test Settings

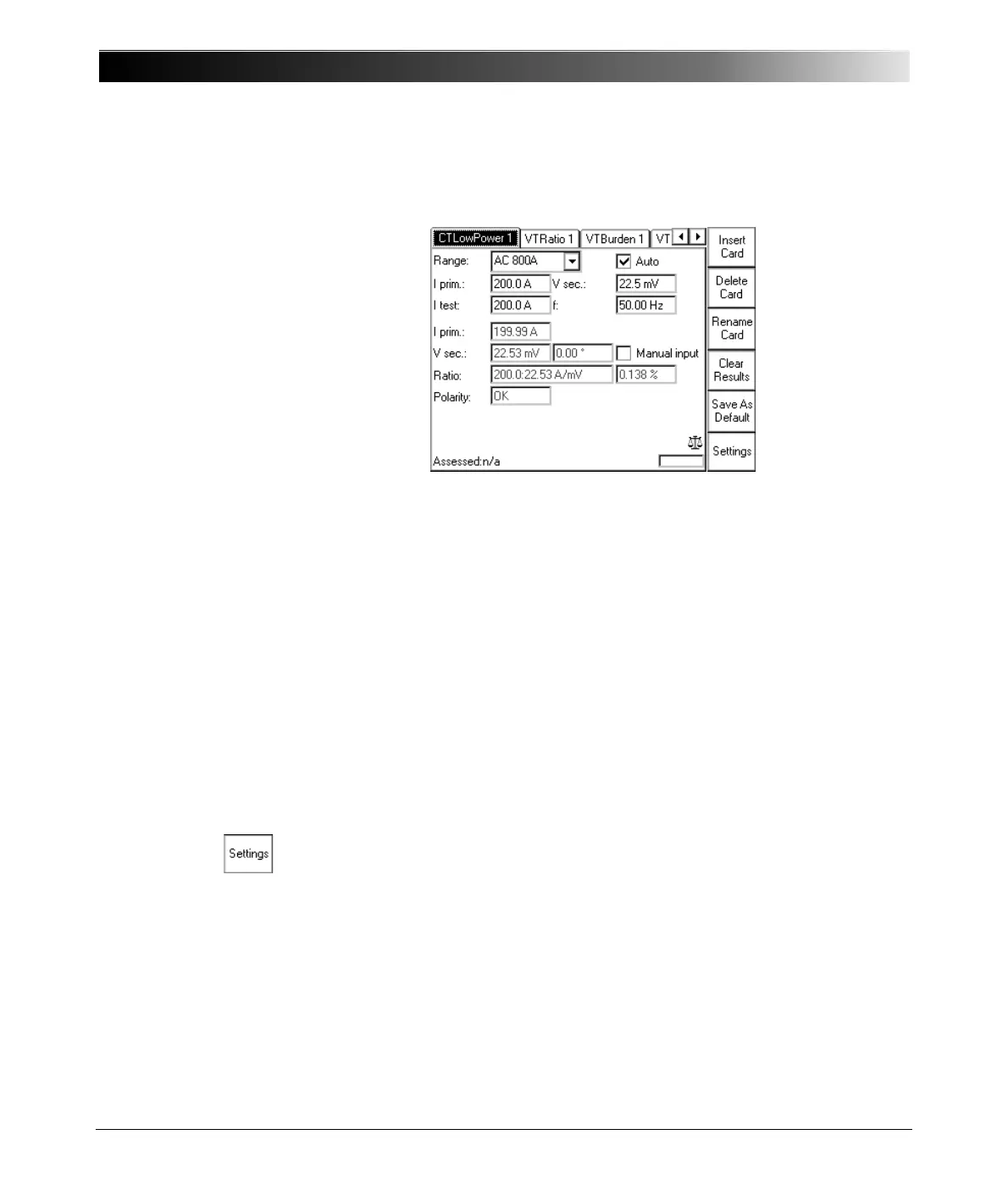

Figure 25:
CT LowPower test card
with test results
Navigate to the parameter fields, and enter the values according to your test
requirements:
Pressing the S
ETTINGS menu key opens the Settings page. The Settings
page allows setting the test cards individually. As a rule, do not use the Settings
page but the Device Setup tab in the Options view (see ”Device Setup” on
page 2-33) to set the test cards. For more information, see ”Settings Page” on
page 2-28.
Range: output range
Iprim: nominal primary current
Vsec: nominal secondary voltage
Itest: primary injection current
f: output frequency
Auto: select check box for automatic test (default), clear for manual
test (refer to page 4-46).
Note: If the test involves an external booster to gain a higher output
current, set this booster at the Options tab Device Setup before
starting the test.
