Introduction
2 - 25
Setting Up a Test Card
Each parameter whose numerical value can be changed in a data entry field has
an associated minimum and maximum value as well as a preset number of
decimal characters. The parameter value can be changed freely within this
min. ... max. range.
Furthermore, each numerical value has a
– fixed precision value that is used as a step size when increased/decreased
by means of the handwheel
– a coarse step value that is used as a step size when increased/decreased
by pressing the U
P /DOWN keys.
As shown above, the value itself is highlighted, the unit is not, and at the value’s
end a blinking caret (cursor) indicates "ready for data entry".
Now either
– use the U
P /DOWN keys to approximate the value of your choice quickly in
coarse predefined steps
– rotate the handwheel to fine-adjust the value in precision steps
– type in the value of your choice using the numeric soft-touch keys to the left
of the handwheel (refer to Figure17).


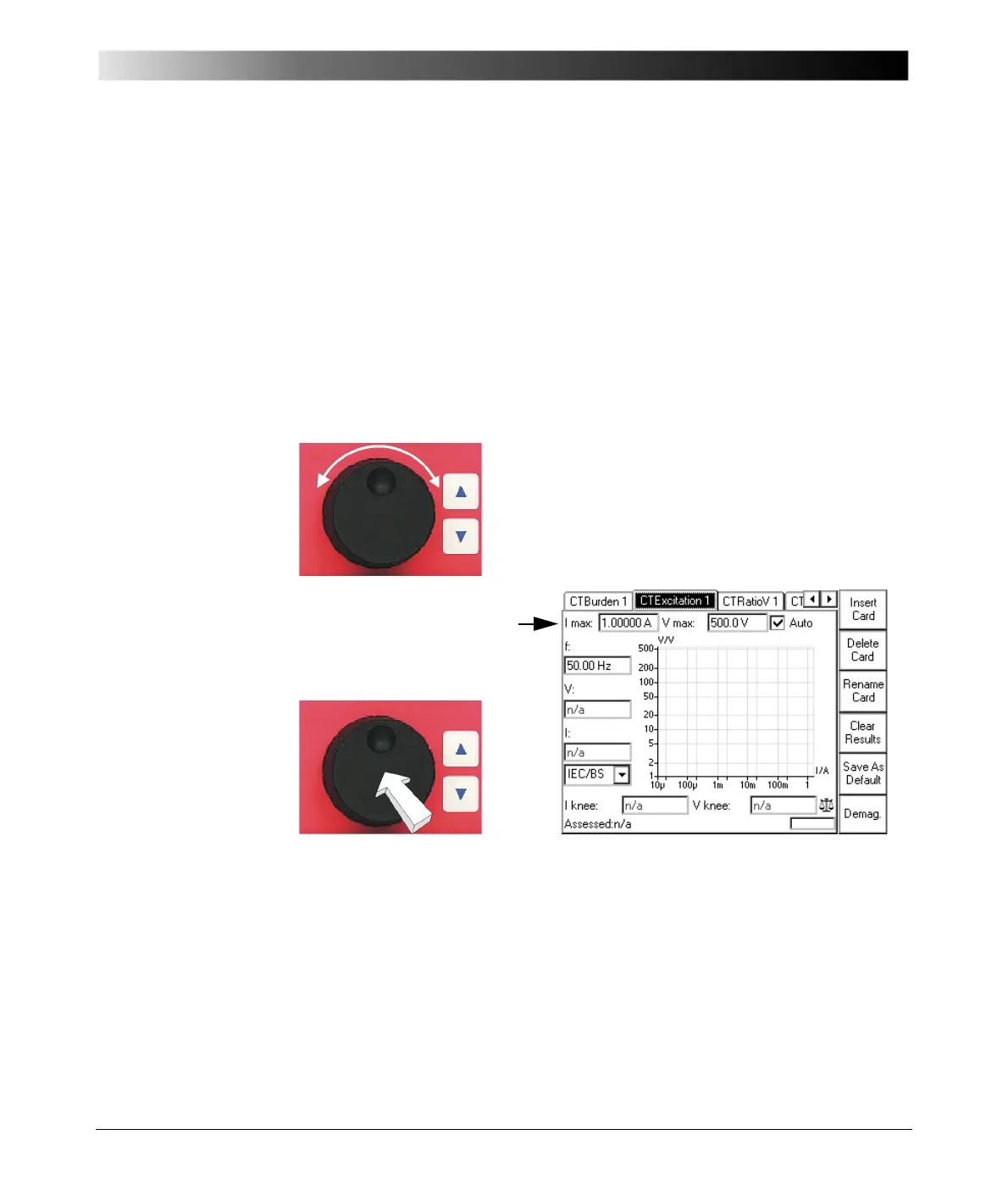

Within one test card, to navigate to the UI element
of your choice either turn the handwheel or use the
U
P /DOWN keys at the right-hand side of the
handwheel.
A selected UI element is entirely highlighted; it has
the focus (
⇒ Glossary).
If a data entry field, for
example, "Imax:" has the
focus, press the handwheel to
"enter" the field and to enable
