Test Settings

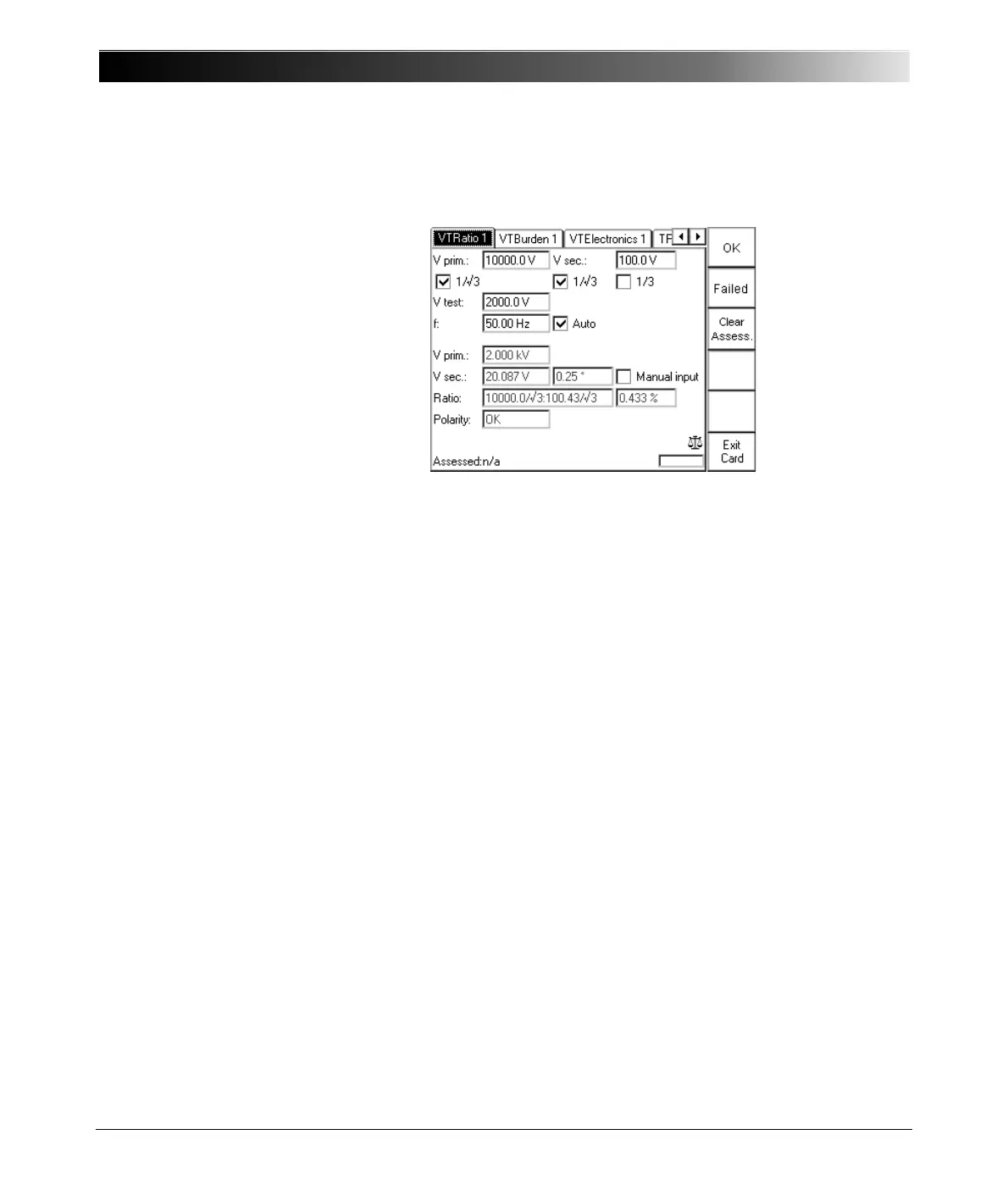

Figure 3:
VTRatio test card with
test results
Navigate to the parameter fields, and enter the values according to your test
requirements:
Vprim: nominal primary voltage with the option "value x 1/
√3"
Vsec: nominal secondary voltage with the options
– value x 1/
√3
–value x 1/3
Vtest: primary injection voltage.
By default, Vtest = Vprim (with option x 1/
√3) if Vprim ≤ 2kV.
If Vprim
> 2kV, Vtest = 2kV.
f: output frequency
Auto: select check box for automatic test (default), clear for manual
test (refer to page 5-5).
