Test Settings

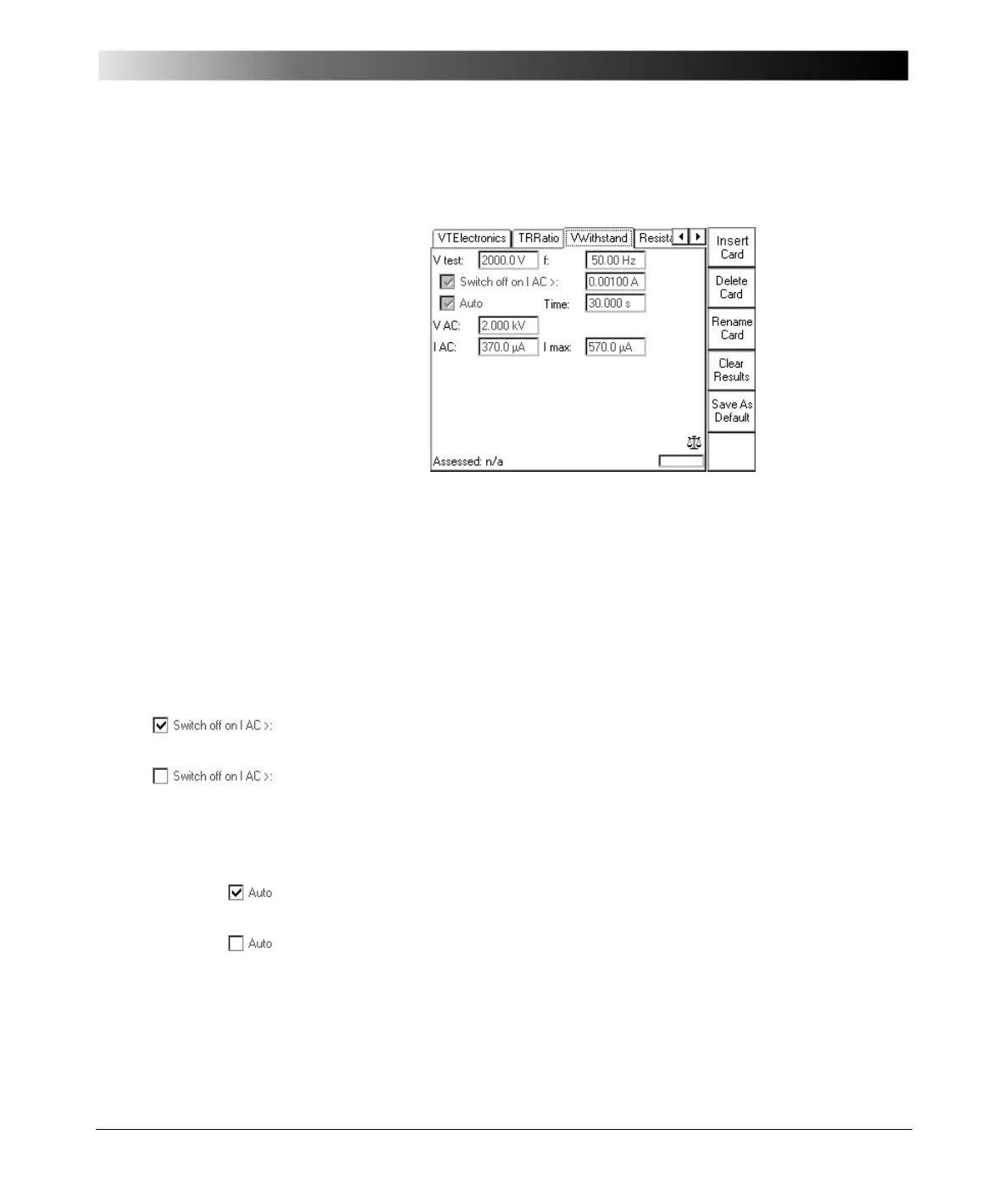

Figure 15:
VWithstand test card
with test results
Navigate to the parameter fields, and enter the values according to your test
requirements:
Option "Switch off on IAC>"
Select this combo box and specify a current threshold to turn off the voltage
withstand test automatically if this value is exceeded.
If the combo box is clear (default), I AC is measured, however, there is no current
threshold to turn off the voltage withstand test automatically if this value is
exceeded. The data entry field cannot be accessed.
Option "Auto"
Select this combo box and specify a duration time for the voltage withstand test
to run (default = 60 seconds). After this time, the test is turned off automatically.
Clear this combo box if you prefer to either turn off the test manually, or have it
turned off by the option "Switch off on I AC>" without a duration time involved.
Vtest: nominal test voltage (2kV max.)
f: output frequency
Time: time span Vtest is applied to the output
Note: If both options "Switch off on I AC>" and "Auto" are selected, they act
as an OR operation, that is, whatever occurs first will turn off the
voltage withstand test.
