Others - Sequencer
8 - 3
Sequencer
Use the Sequencer test card to define a sequence of states to be applied to a
connected test object.
A state represents an output quantity with defined settings, for example, a
certain magnitude and frequency, for a preset period of time.
A sequence of up to 7 states can be defined. The states within that sequence
execute sequentially. For each state, a trigger signal can be specified to
prematurely terminate this state and execute the next one.
A sequence of states can either be executed once from state 1 to state x, or
repeated continuously. Furthermore, the complete sequence can prematurely
be terminated if during the execution of one of its states this state’s specified
trigger condition occurs.
The test object’s characteristic is measured, and the values are displayed in the
measurement table.
The Sequencer test card can be subdivided into three sections:

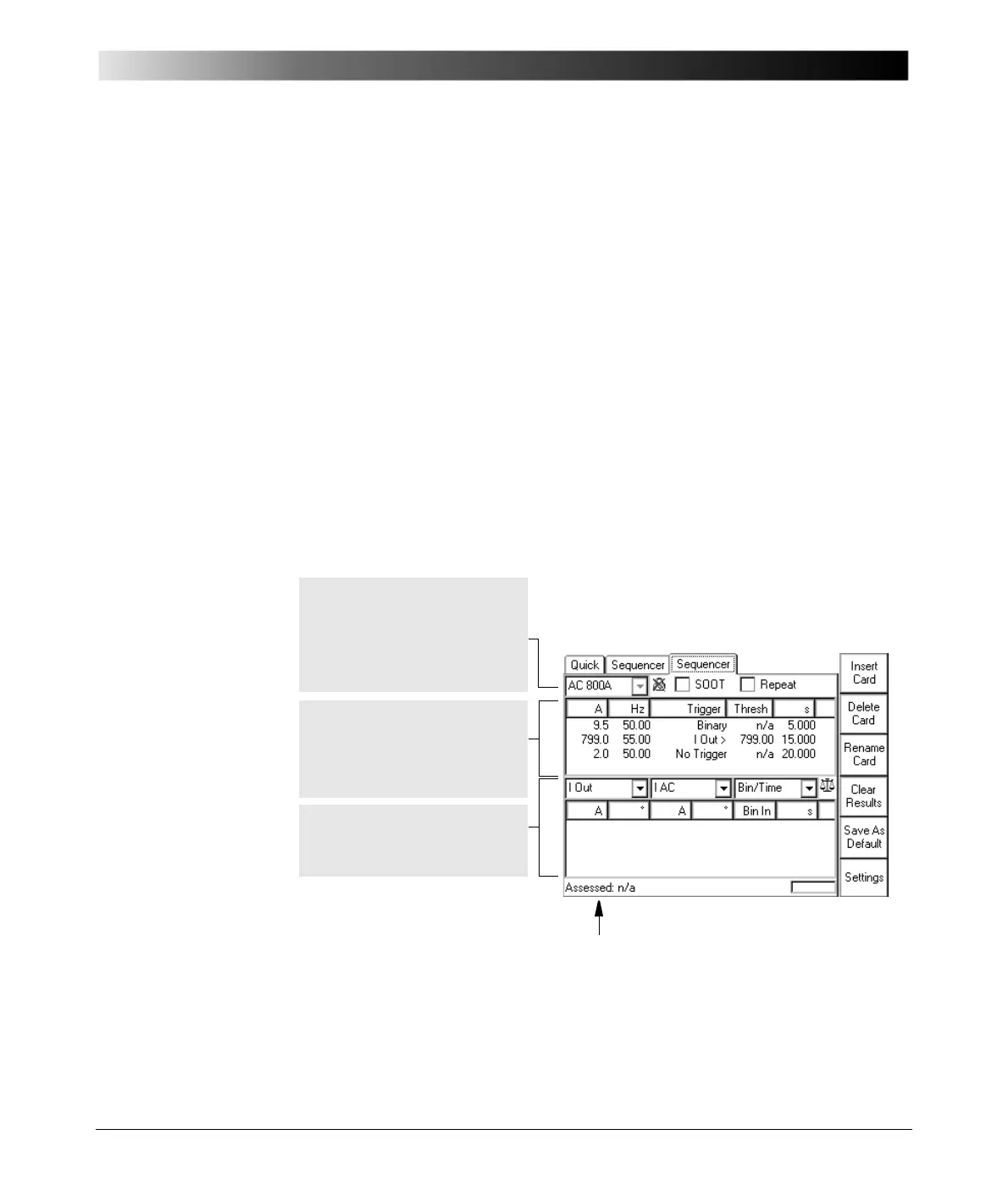

Figure 2:
Sequencer test card
States table (state-specific settings)
– output quantity settings
– trigger specification
– duration of state
Measurement table
– definition of displayed quantities
– display of the measured values
Sequence settings (apply to all states)
– Range selection
– Synchronize with V1AC
– SOOT (switch off on trigger)
– Repeat sequence
To learn more about test assessment, refer to
”Test Assessment” on page 10-2.
