CPC 100 V1.41
17 - 6
Operation Modes of CP CB2

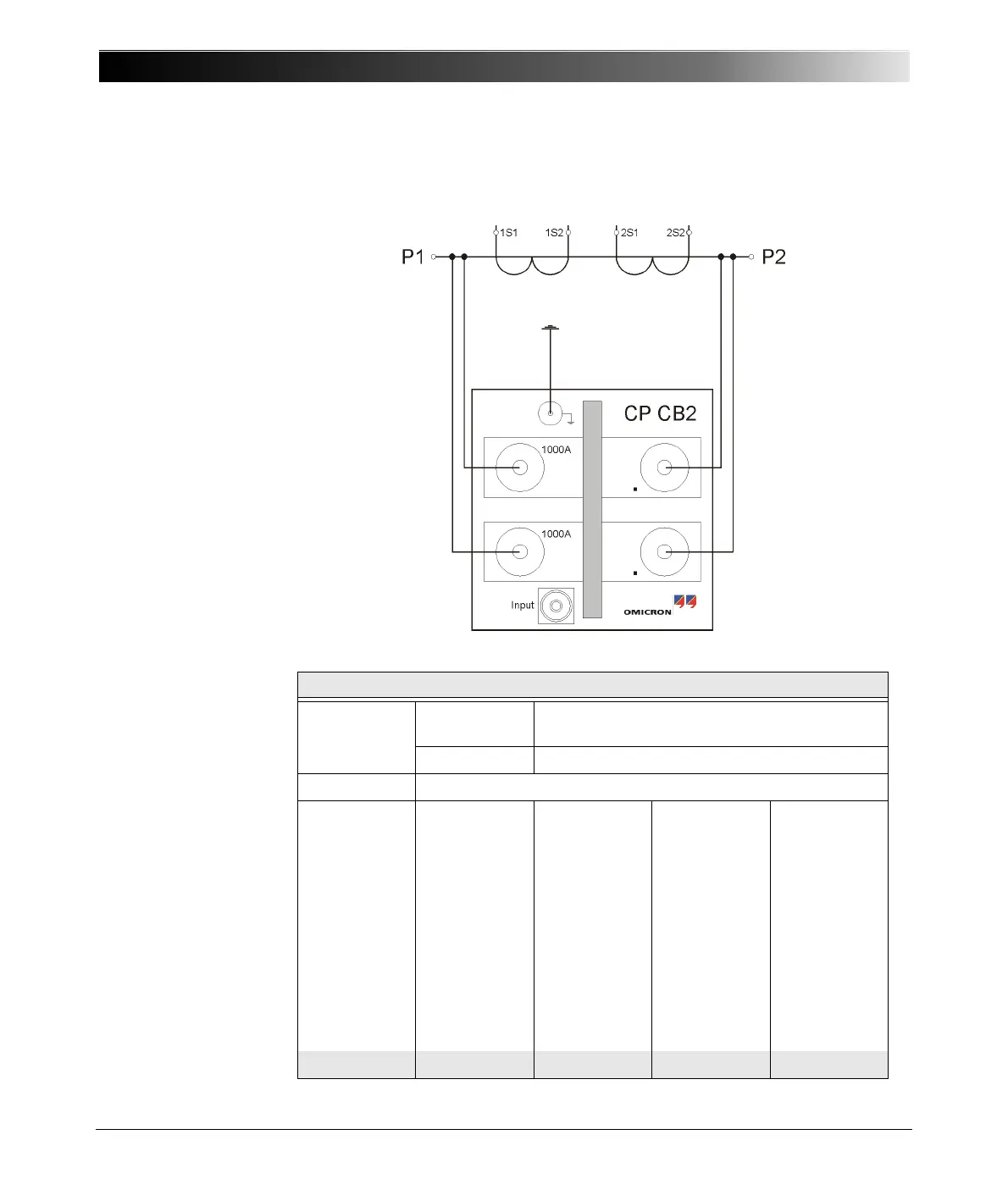

Figure 2:
Current booster CPCB2
in 2000A mode
Table 4:
Technical data of
current booster CPCB2
in 2000A mode
Technical data of CP CB2 in 2000A mode
Connection Input: booster connector to connect the current
booster CPCB2 with CPC 100.
Output: both CPCB2 outputs in parallel
Measurement Measurement in CPC 100
Output power
at:
typ. apparent
power S
max
typical time
t
max
duty cycle
t
on
/t
off
frequency
2000A
1800A
1600A
1400A
1200A
1000A
600A
4900VA
4400VA
3950VA
3450VA
2950VA
2500VA
1500VA
25s
3min
5min
10min
18min
30min
> 2hrs
5sec / 55sec
5sec / 40sec
5sec / 30sec
5sec / 25sec
5sec / 15sec
5sec / 9sec
cont. ON
50 ... 60Hz
1500A 3500VA 5min 5sec / 30sec 15 ... 150Hz
