Preparing a Test Offline with a PC
Outline of a typical proceeding for an offline test preparation with a PC using
CPC Explorer and CPC Editor.
–Start CPC Explorer.
– Use CPC Explorer’s shortcut menu item N
EW FOLDER to create a folder for
the new test on your local hard disk. Name the folder accordingly, for
example, CPC Tests.
If this new folder is to be situated at the drive’s root, for example, right
underneath C:\, use Windows Explorer to create it. CPC Explorer does not
create folders right underneath the root level.
– Right-click on that newly created folder, here: C:\CPC Tests, and use the
shortcut menu item N
EW FOLDER to create subfolders in a tree structure
that corresponds with the substation:

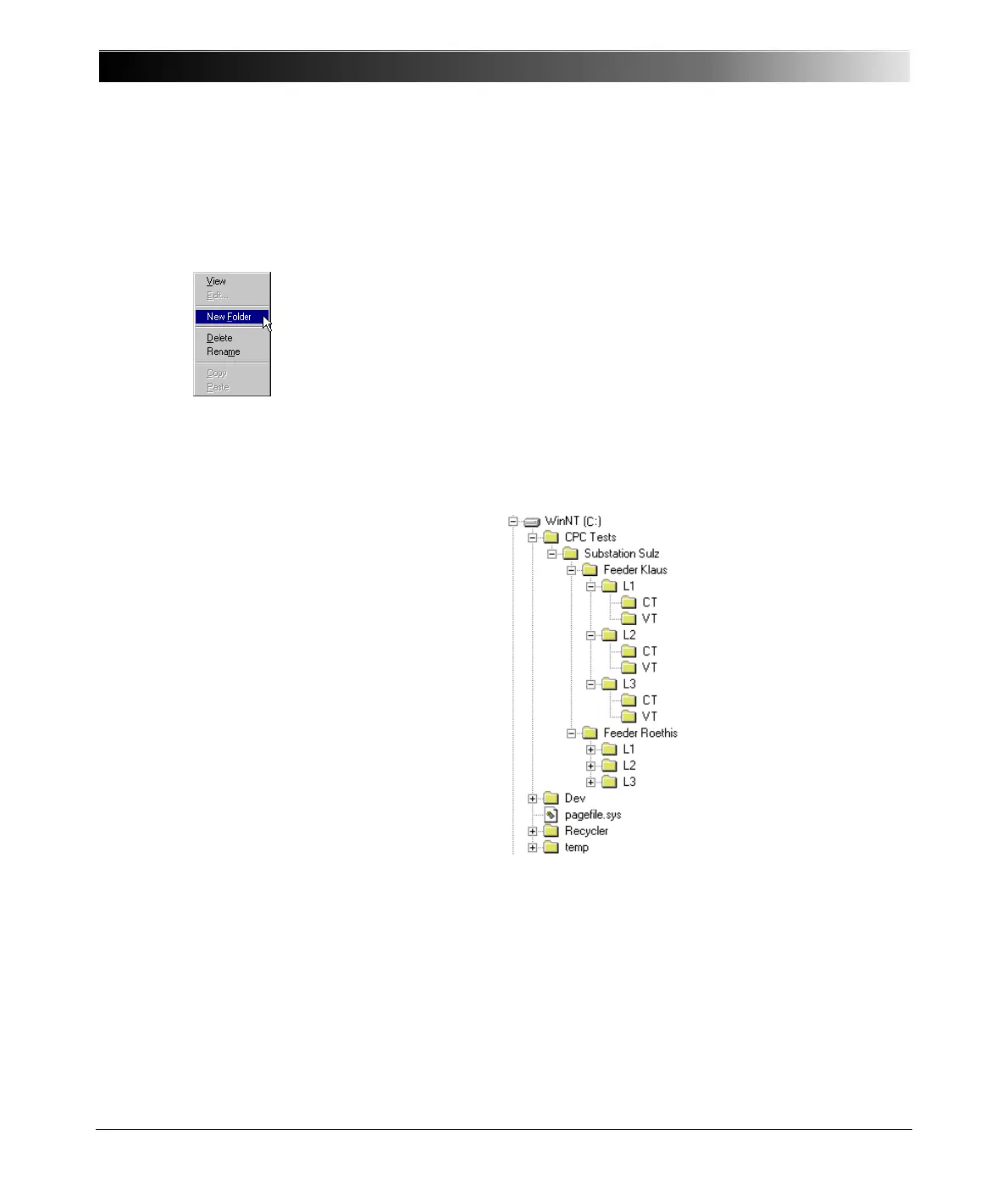

Figure 5:
Representation of the
substation "Sulz" with its
two 3-phase feeders
"Klaus" and "Roethis" in
a folder tree structure
–Start CPC Editor
– Set up the required test card(s) for this substation, compose your entire test,
and eventually save the test in the appropriate folder that you created with
CPC Explorer.
– If single test cards or entire tests are similar or even identical, use CPC
Explorer’s and/or CPC Editor’s copy/paste functionality, rather than creating
new tests from the beginning.

