Accelerator Keys
With the exception of Quick, pressing an accelerator key opens the according
Insert a new test card dialog box and lets you select the test card of your
choice. Pressing Quick opens the Quick test card directly.
Test Card View
The Test Card View displays the test procedures. The CPC 100 software starts
in the Test Card View loading the test procedure default.
A test card inserted to the Test Card View loads the values from the respective
test card default. If no test card default has been defined yet by the user, the test
card opens with preset default values.
Any test card with its actual settings can be made a test card default for that
particular type of card, for example, filling out a CTRatioV test card with certain
values and pressing S
AVE AS DEFAULT makes this card the new CTRatioV
test card default.
Each card of this type that will later be inserted to a test procedure will already
hold these new settings.

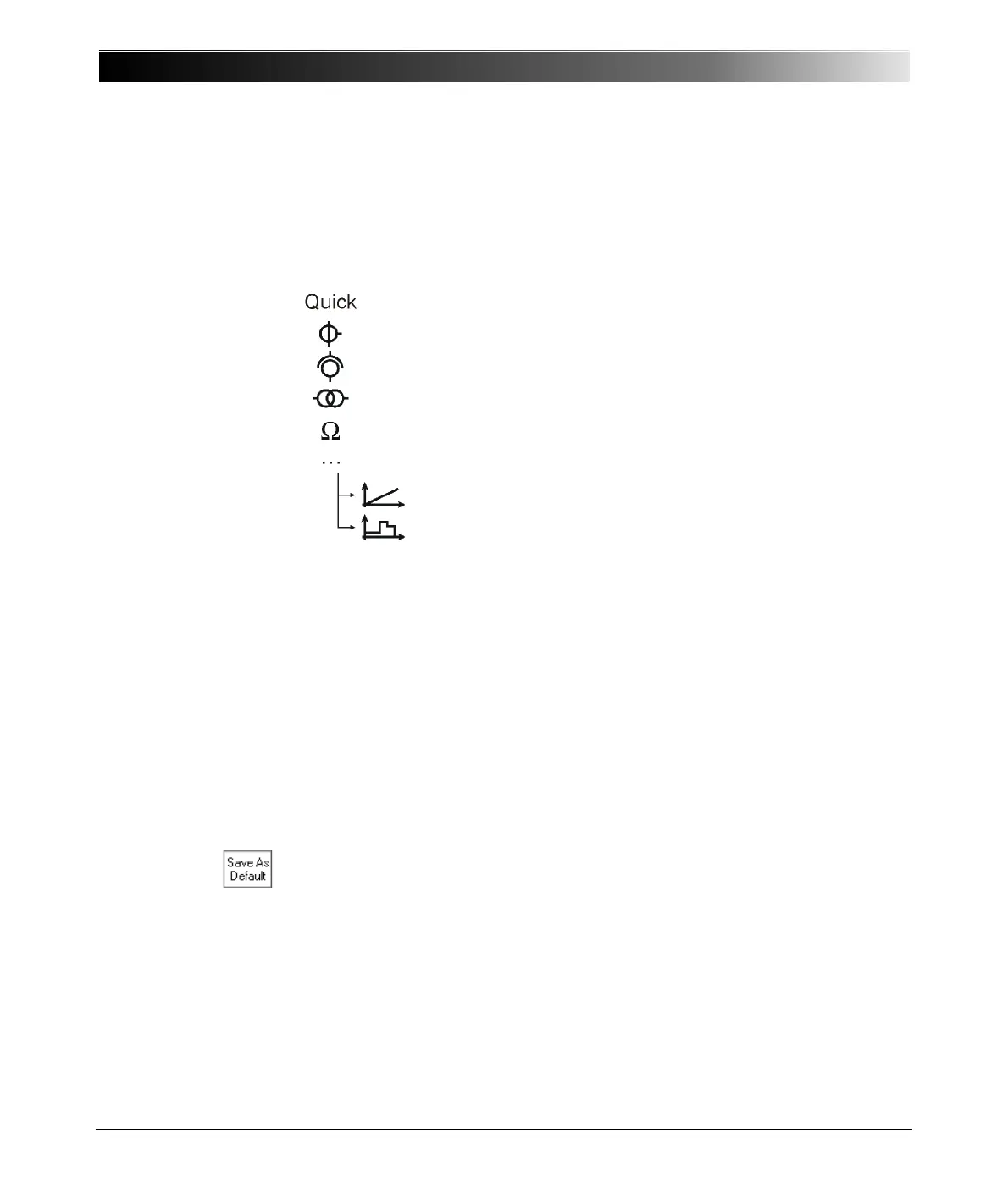

Quick test card
select from current transformer (CT) test cards
select from voltage transformer (VT) test cards
select from power transformer test cards
select from resistance test cards
select from other test applications...
– Ramping (primary / secondary protection relay testing)
– Sequencer (primary / secondary protection relay testing)
– Amplifier card (refer to page 8-29).
– Comment card (refer to page 8-33).
TanDelta (refer to the CP TD1 Reference Manual available on
the CPC Explorer CD-ROM).
Note: A test card default contains user-defined settings, not test results.
